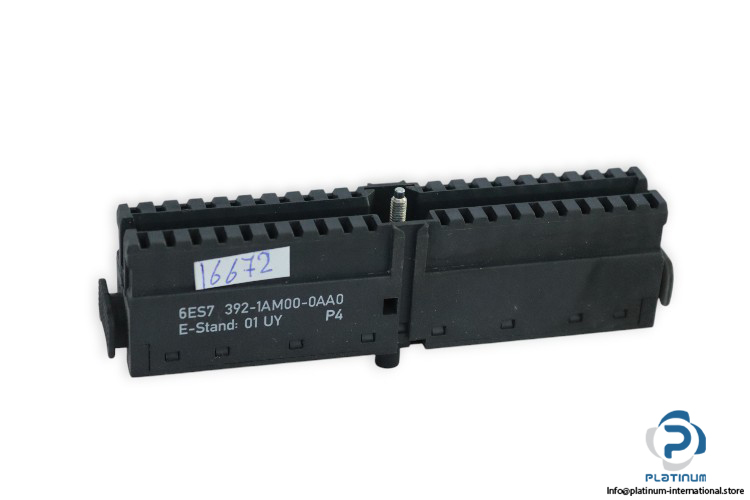

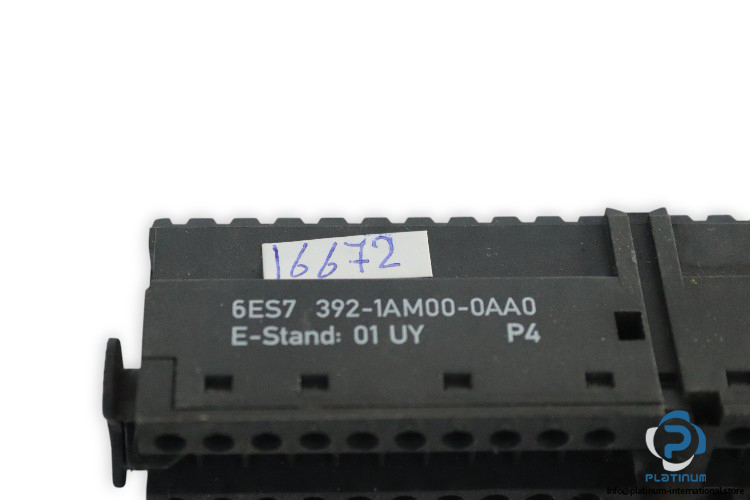

Siemens 6ES7 392-1AM00-0AA0 P4 Front Connector
Used
Manufacturer: SIEMENS
Type: FRONT CONNECTOR
Part no.: 6ES7 392-1AM00-0AA0 P4
Type of connection: screw terminals
Number of lines per connection: 1; Or 2 cables up to 0.75 mm² (total) in a shared end sleeve
Mounting:
Tool: Screwdriver, conical design, 3 mm to 3.5 mm
Tightening torque: min. 0.4 N·m … 0.7 N·m
Operating temp.: 0 … 60 °C
Dimensions (W x H x D): 21.6 x 125 x 41 mm
