Siemens 6ES7 972-0BB41-0XA0 BUS Connector
Used
In stock69 unitsReady to ship
BUS CONNECTOR
Siemens 6ES7 972-0BB41-0XA0 is a PROFIBUS-compatible bus connector with 9-pin Sub-D interface, 35° cable outlet, and IP20 protection, ideal for industrial network applications.9-pinAdapterAutomationBUBUSCableCommunicationConnectorIndustrialIP20NetworkPlasticProfibusSiemensSub-D
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

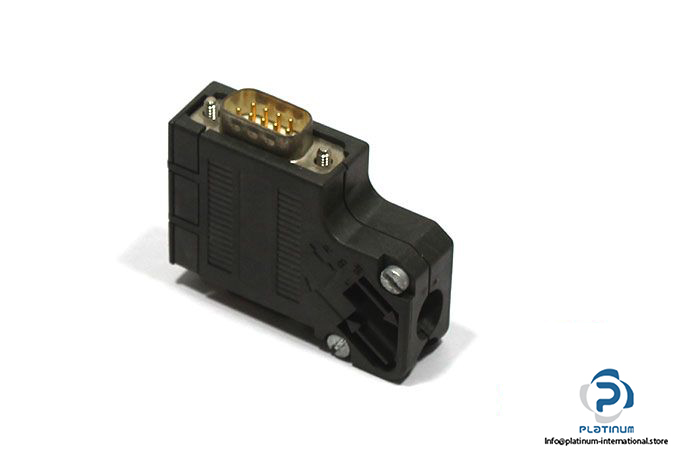

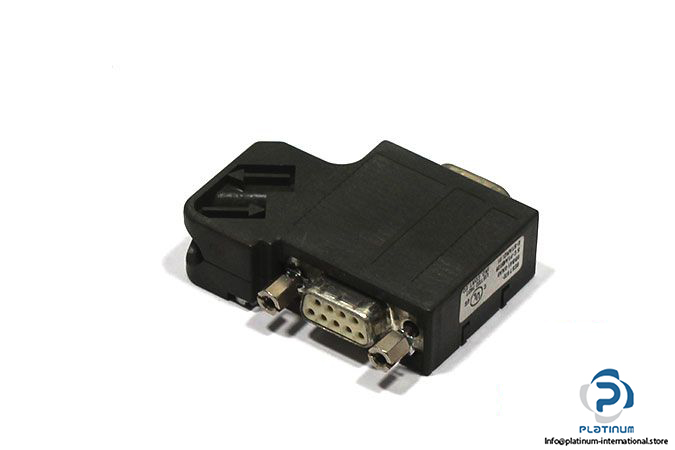

SIEMENS 6ES7 972-0BB41-0XA0 BUS CONNECTOR
The Siemens 6ES7 972-0BB41-0XA0 is a robust bus connector specifically designed for integrating PROFIBUS stations within industrial communication networks. With a compact form factor and a 35° cable outlet, it ensures secure and efficient data transmission across your automation system.
Manufacturer: Siemens
Type: Bus Connector
Model: 6ES7 972-0BB41-0XA0

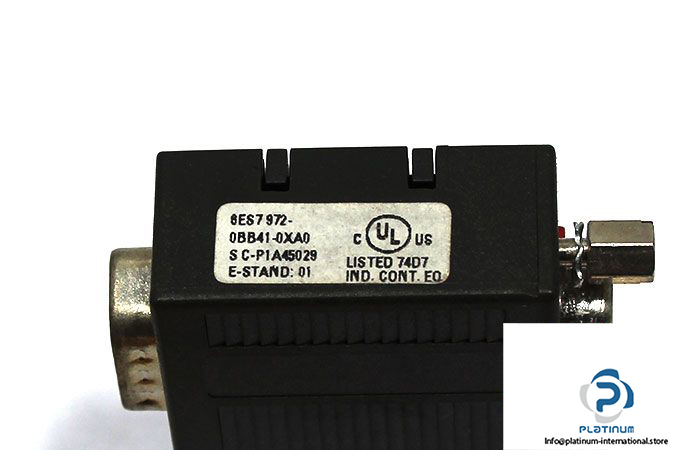

SN: S C-P1A45029
E STAND: 01
Suitability for Use: For connecting PROFIBUS stations to the PROFIBUS bus cable
| Supply Voltage | 4.75 / 5.25 VDC |
| Cable Outlet | 35° Cable Outlet |
| Data Transmission Rate | 9.6 kbit/s / 12 Mbit/s |
| Connector Type | 9-Pin Sub-D Connector |
| Max. Current Consumption | 5 mA |
| Ambient Temperature | -25 / 60 °C |
| Material | Plastic |
| Protection Class | IP20 |
| Dimensions | 16 x 54 x 39 mm |
