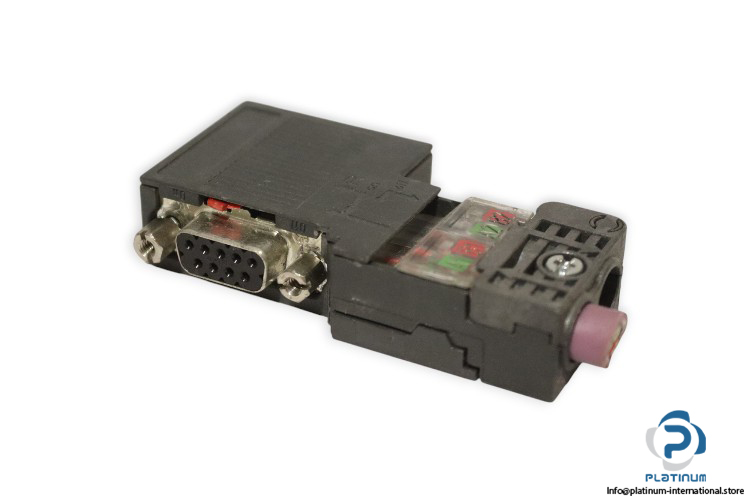

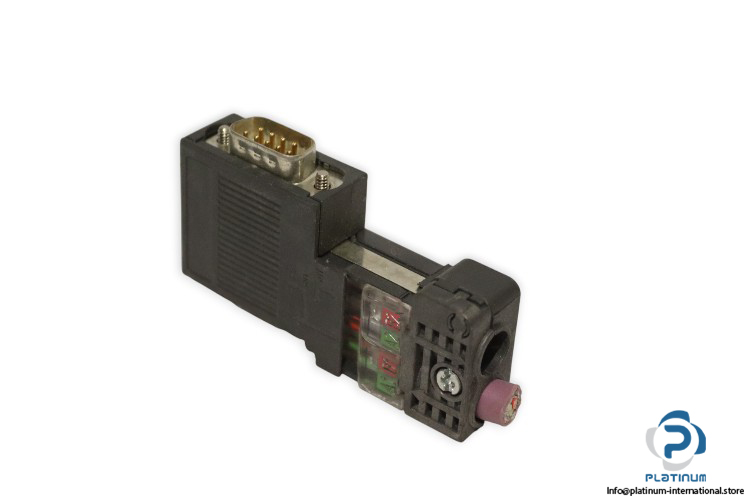

Siemens 6ES7 972-0BB50-0XA0 Profibus Connector
Used
In stock1 unitReady to ship
19,99$
PROFIBUS Connector
Siemens SIMATIC S7 PROFIBUS Connector 6ES7972-0BB50-0XA0 with 90° cable outlet, integrated termination resistor, 9.6 kbit/s / 12 Mbit/s transfer rate, and 9-pin Sub D connection.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Siemens SIMATIC S7 PROFIBUS Connector
The Siemens SIMATIC S7 PROFIBUS Connector is a robust communication interface designed for industrial automation networks. With a wide transfer rate range and integrated termination resistor, it ensures reliable and efficient PROFIBUS DP connectivity.
Manufacturer: Siemens
Type: PROFIBUS Connector

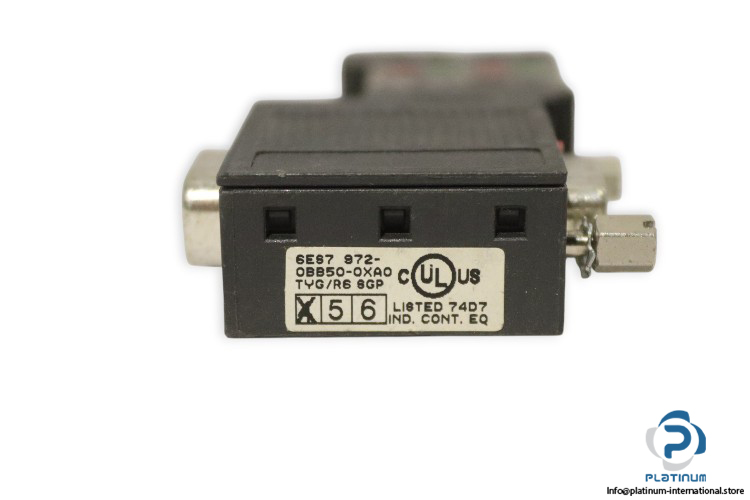

MRN: 6ES7972-0BB50-0XA0
REF NO.: TYG/R6 8GP
Series: SIMATIC S7
| Transfer Rate / with PROFIBUS DP | 9.6 kbit/s / 12 Mbit/s |
| Number of Electrical Connections | For PROFIBUS Cables: 2 | For Network Components/Terminal Equipment: 1 |
| Type of Electrical Connection | For PROFIBUS Cables: Integrated insulation displacement terminals for 2-core PB FC installation cables | For Network Components/Terminal Equipment: 9-pin Sub D connector |
| Design of Terminating Resistor | Resistor combination integrated and connectable via slide switch |
| Material of Enclosure | Plastic |
| Locking Mechanism | Screwed Joint |
| Type of Cable Outlet | 90° Cable Outlet |
| Width | 15.8 mm |
| Height | 59 mm |
| Depth | 35.6 mm |
| Operating Temperature | -25 / 60 °C |
