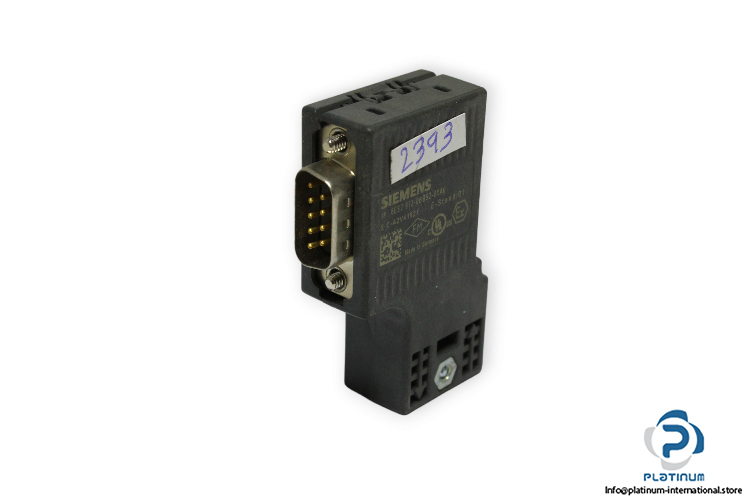

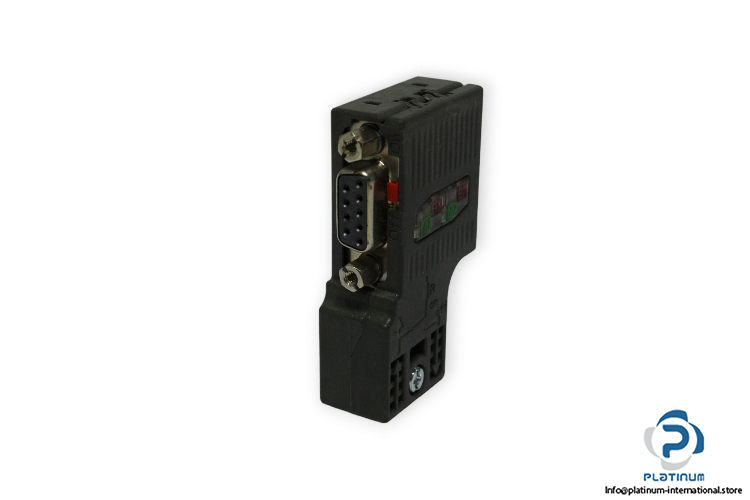

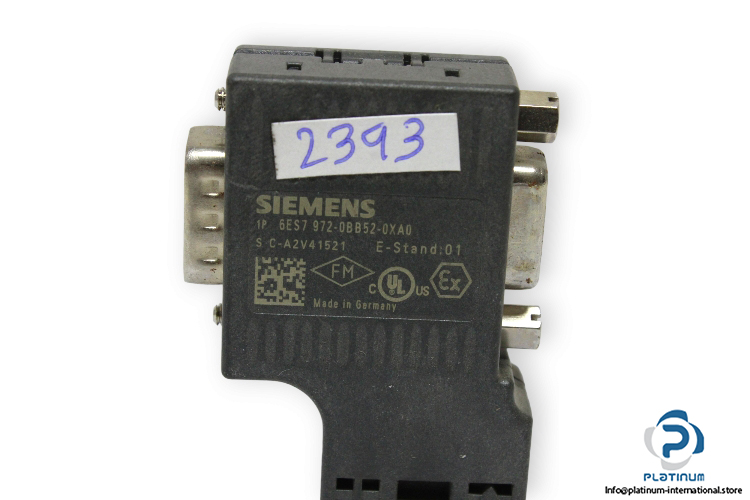

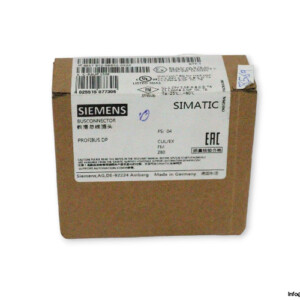

Siemens 6ES7 972-0BB52-0XA0 Profibus Connector

Manufacturer: Siemens
Type: PROFIBUS connector
MNR: 6ES79720BB520XA0

Suitability for use: For connecting PROFIBUS stations to the PROFIBUS bus cable
Transfer rate / with PROFIBUS DP: 9.6 kbit/s … 12 Mbit/s
Number of electrical connections: for PROFIBUS cables: 2, for network components or terminal equipment: 1
Type of electrical connection: for PROFIBUS cables: Integrated insulation displacement terminals for 2-core PB FC installation cables, For network components or terminal equipment: 9-pin sub D connector
Type of cable outlet: 90 degree cable outlet
Design of terminating resistor: Resistor combination integrated and connectable via slide switch
Material of the enclosure: plastic
Operating Temperature: -25 … +60 °C
Degree of protection: IP20
Type of protection: Explosion protection EX
Dimensions: 15.8 x 59 x 35.6 mm
