Siemens 6FX2001-5FS12 Absolute Encoder
Used
Available on request
175,00$
ABSOLUTE ENCODER
Siemens 6FX2001-5FS12 Absolute Encoder with 13-bit resolution, solid 6 mm shaft, SSI interface, and IP64 protection, ideal for industrial position feedback applications.136FX2001-5FS12AbsoluteAutomationBitControlEncoderFeedbackFlangeIndustrialIP64MotionPositionSensorshaftSiemensSolidSSISynchro
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
SIEMENS 6FX2001-5FS12 ABSOLUTE ENCODER

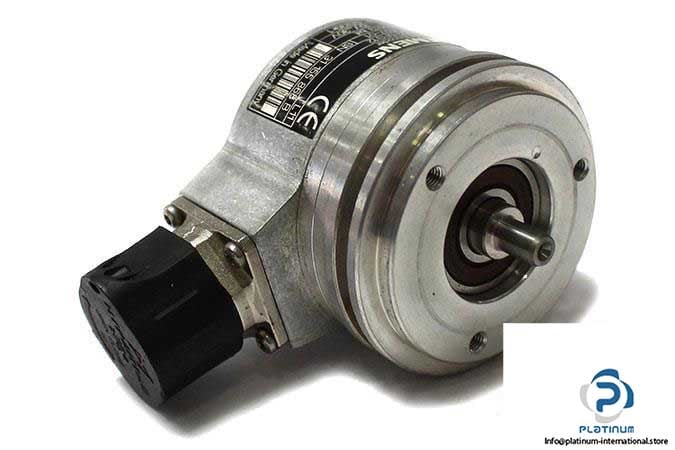

Engineered for precision, the Siemens 6FX2001-5FS12 Absolute Encoder delivers reliable singleturn position feedback in harsh industrial environments. Featuring a compact synchro flange, solid shaft design, and high resolution, this encoder ensures accurate motion control and seamless integration into automation systems.

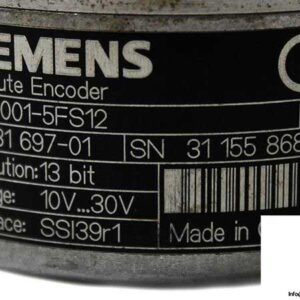

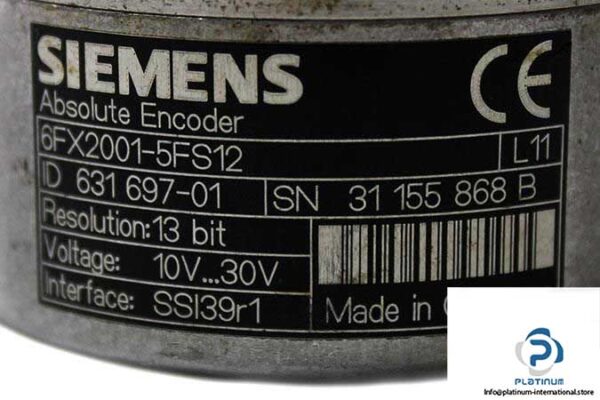

Manufacturer: Siemens
Type: Absolute Encoder
Model: 6FX2001-5FS12
ID: 631 697-01
SN: 31 155 868 B
| Shaft Version | Solid Shaft |
| Shaft Diameter | 6 mm |
| Shaft Length | 10 mm |

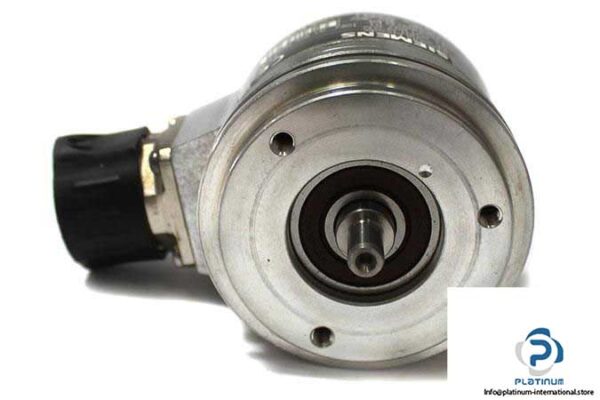

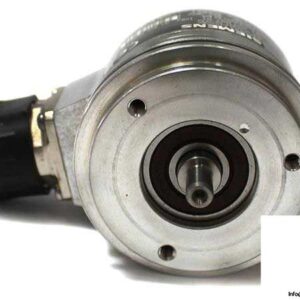

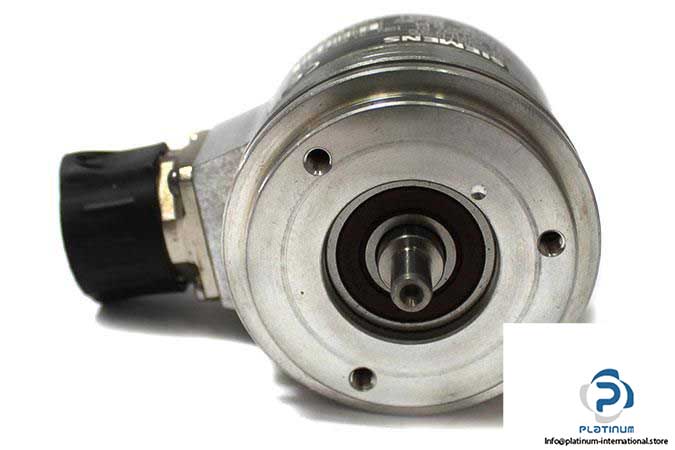

| Flange Type | Synchro Flange |
| Resolution | 13 bit (8192 increments) |
| Consumed Current | 160 mA |
| Voltage Supply | 10“30 VDC |
| Interface | SSI39r1 (Singleturn) |
| Clock Frequency | 100 kHz “ 1 MHz |

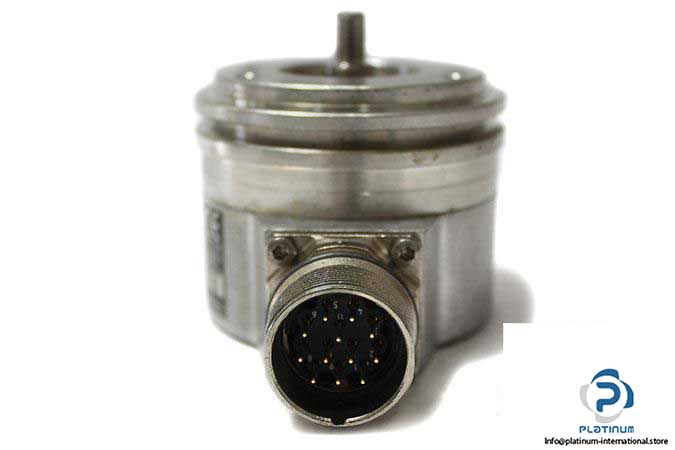

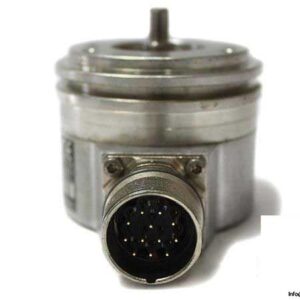

| Electrical Connection | Flange Socket, Radial |
| Protection Class | IP64 |
| Operating Temperature | -40 to 85 °C |
