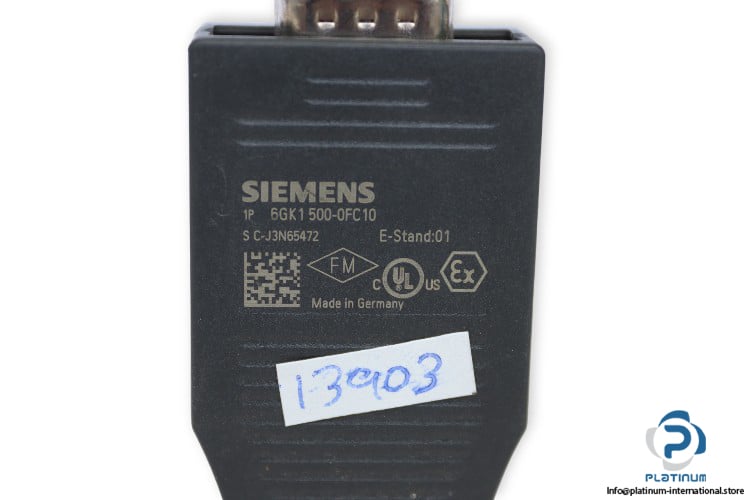

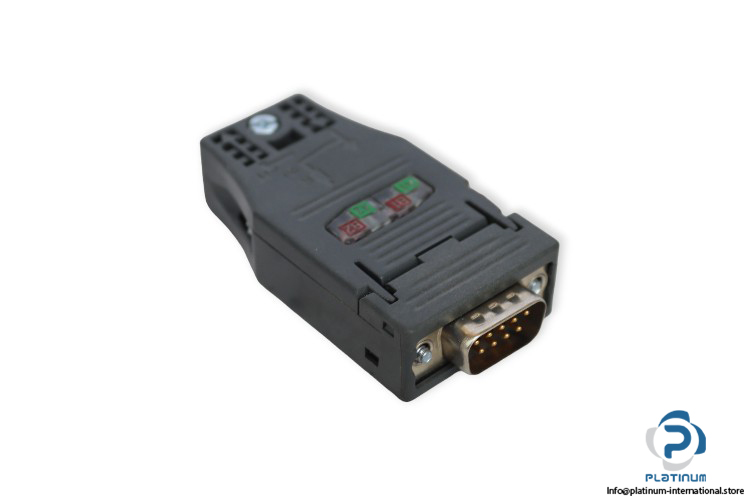

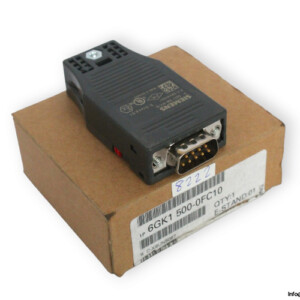

Siemens 6GK1 500-0FC10 Profibus Connector
Used
Manufacturer: SIEMENS
Type: Profibus Connector
Model: 6GK15000FC10
Use for: Connecting PROFIBUS Nodes to the PROFIBUS Bus Cable
Transfer Rate / with PROFIBUS: 9.6 Kbit/S … 12 Mbit/S
Electrical Connections No.:
PROFIBUS Cables: 2
Network Components Or Terminal Equipment: 1
Electrical Connection Type:
PROFIBUS Cables: Integrated Insulation Displacement Contacts for 2-Core PB FC Installation Cables
Network Components or Terminal Equipment: Sub-D Connector (9-Pin)
Cable Outlet Angel: 180°
Material: Plastic
Operating Temperature: -40 … +70 °C
Protection Class: IP20
Dimensions: 62 x 16 x 34.5 mm
