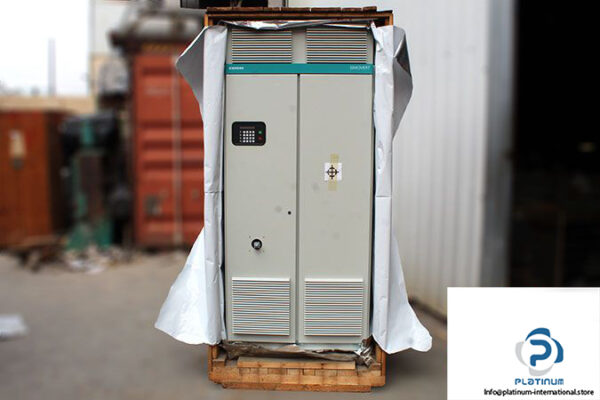

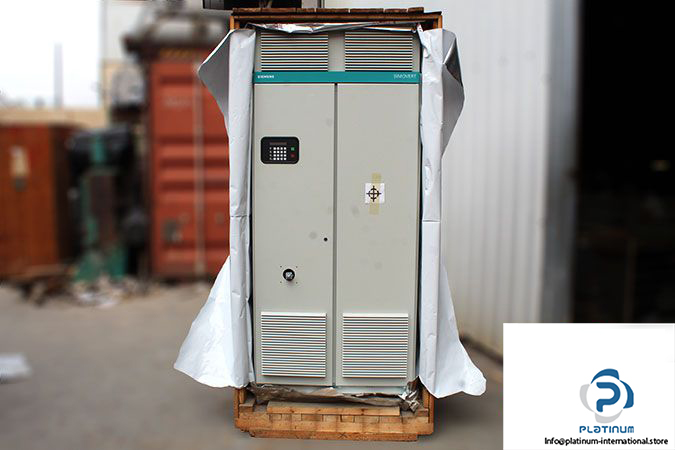

Siemens 6SE3620-0AC02-Z Frequency Inverter

SIEMENS SIMOVERT P FREQUENCY INVERTER “ 6SE 3620-0AC02-Z

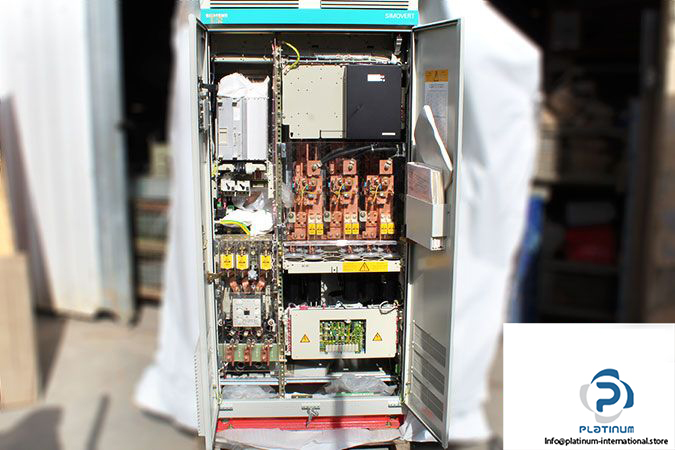

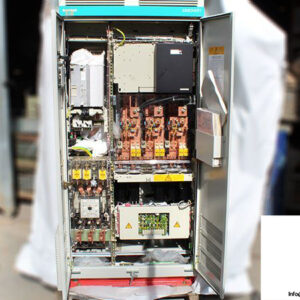

The Siemens SIMOVERT P Frequency Inverter is a robust, high-capacity AC drive designed for industrial motor control and power management applications. This powerful unit supports a wide voltage and frequency range with integrated control and operator panel solutions, delivering high performance and reliability.

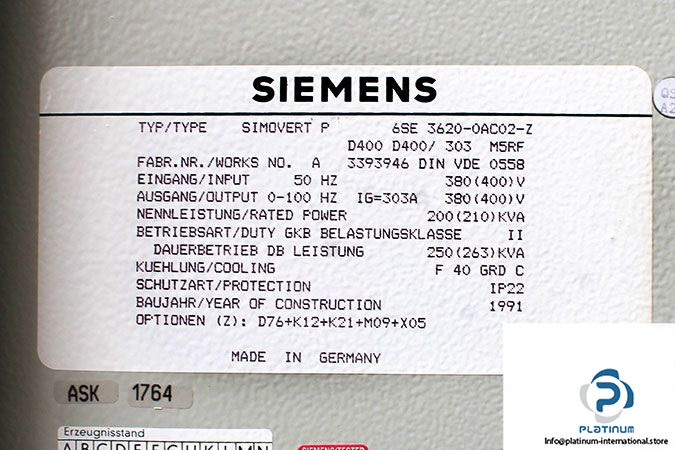

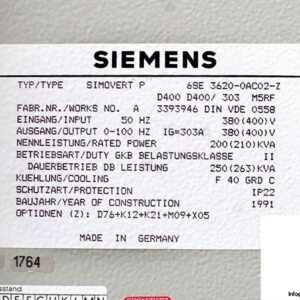

Manufacturer: SIEMENS
Type: Frequency Inverter
Model: 6SE 3620-0AC02-Z
Family: SIMOVERT P
FAB NO: A 3393946 DIN VDE 0558
REF NO: D400 D400/303 M5RF

Input

• Voltage: (380) 400 V AC
• Frequency: 50 Hz

Output

• Voltage: (380) 400 V AC
• Frequency: 0 / 100 Hz
• Rated Current: 303 A
• Rated Power: 200 (210) kVA
• Continuous Operation Power: 250 (263) kVA
• Duty GKB Load Class: II
• Protection Class IP: IP22

Attachments

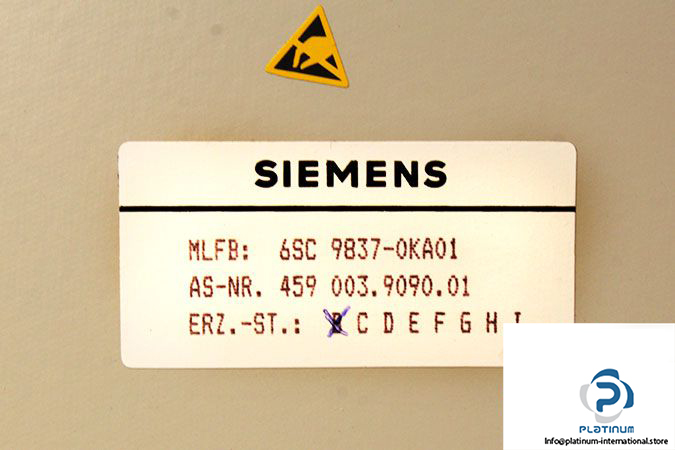

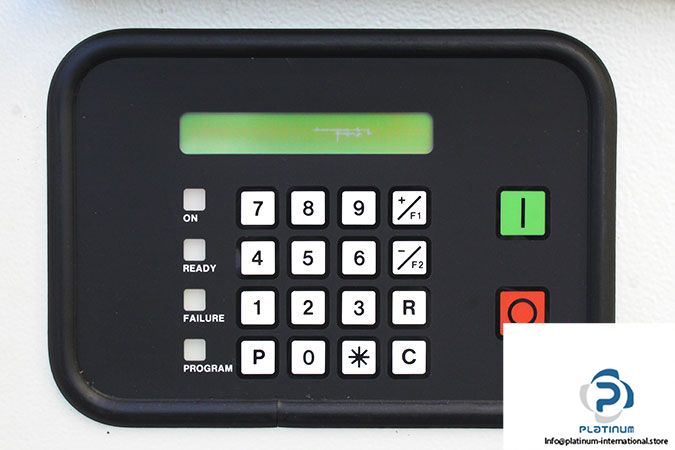

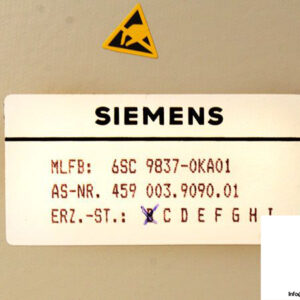

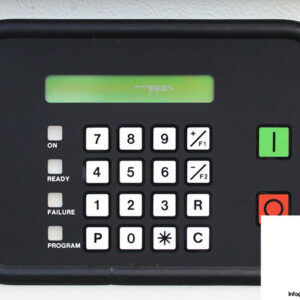

• Operator Panel: SIEMENS 6SC9837-0KA01 “ Part No.: 459 003.9090.01

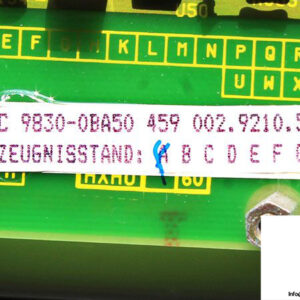

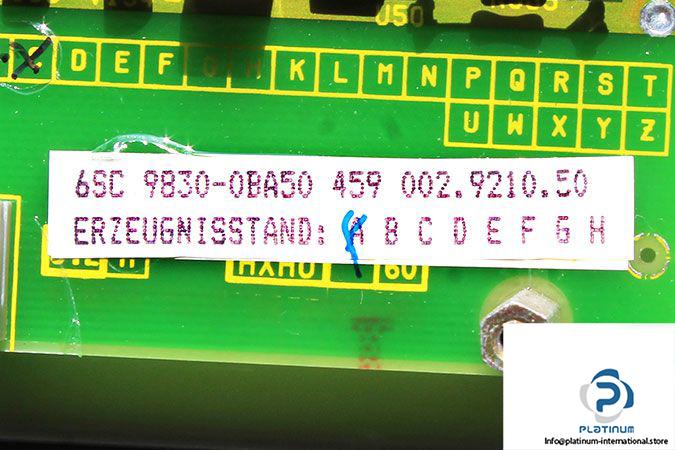

• Control Board: SIEMENS 6SC9830-0BA50 “ Part No.: 459 002.9210.50

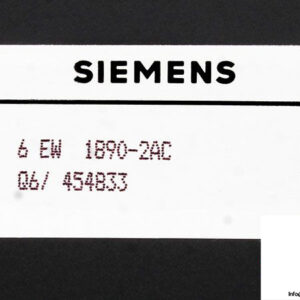

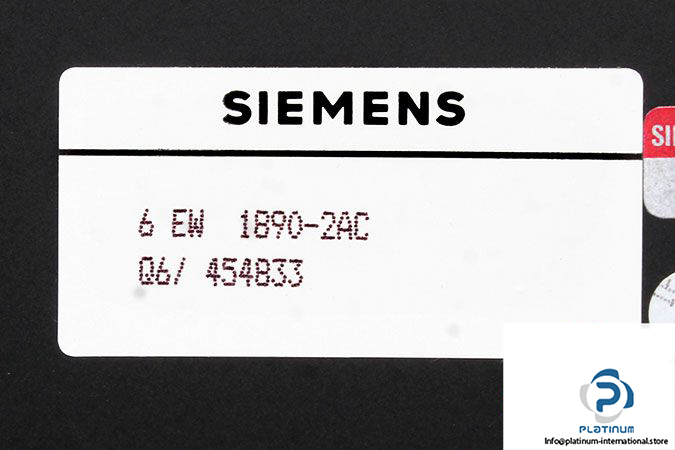

• Power Supply: SIEMENS 6EW1890-2AC “ Part No.: Q6/454833

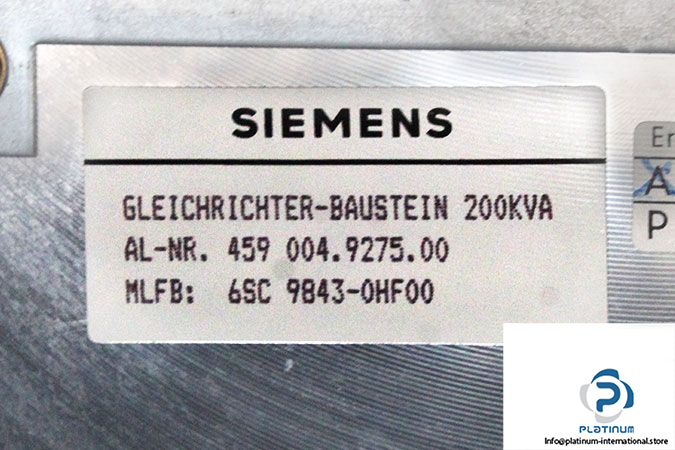

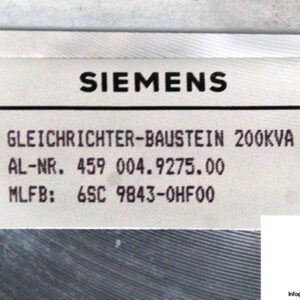

• Rectifier Module: SIEMENS 6SC9843-0HF00 “ Part No.: 459 004.9275.00

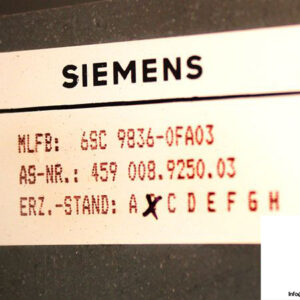

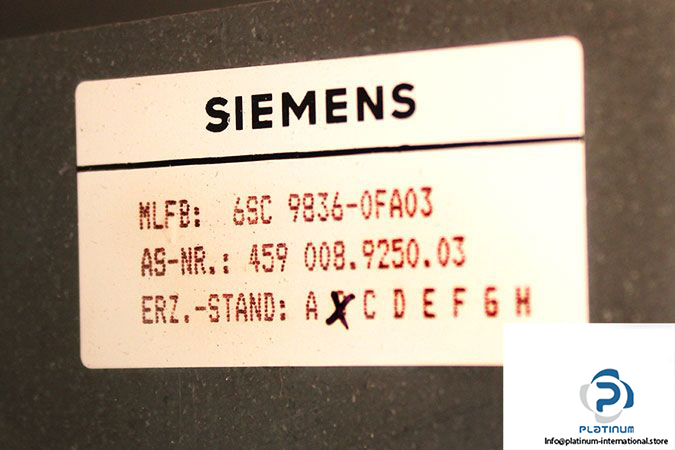

• Rack: SIEMENS 6SC9836-0FA03 “ Part No.: 459 008.9250.03
