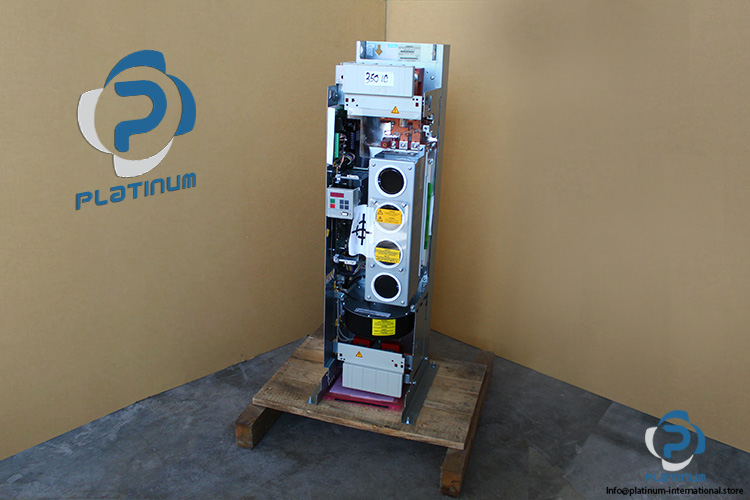

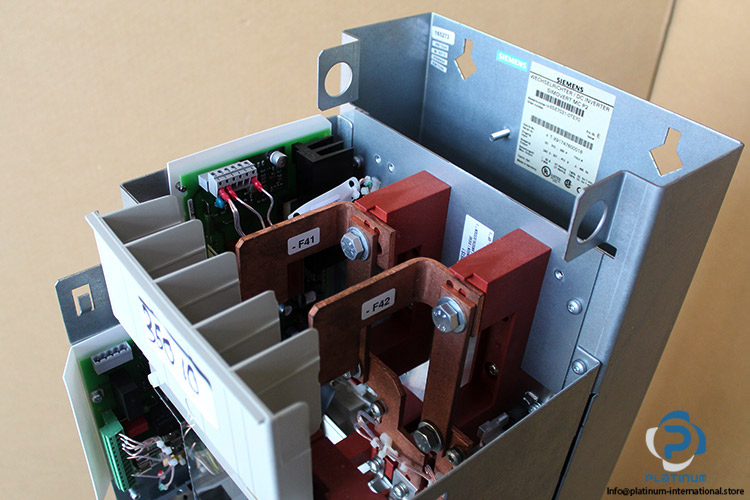

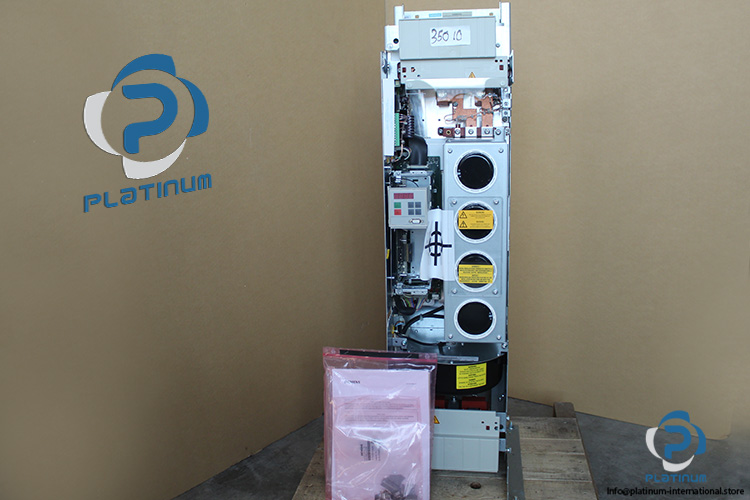

Siemens 6SE7031-0TE70 Inverter
6 666,66$
DC Inverter
A high-efficiency Siemens SIMOVERT MC P2 DC inverter engineered for industrial motor control, offering precise voltage and frequency regulation for heavy-duty automation environments.Siemens 6SE7031-0TE70 DC Inverter – SIMOVERT MC P2

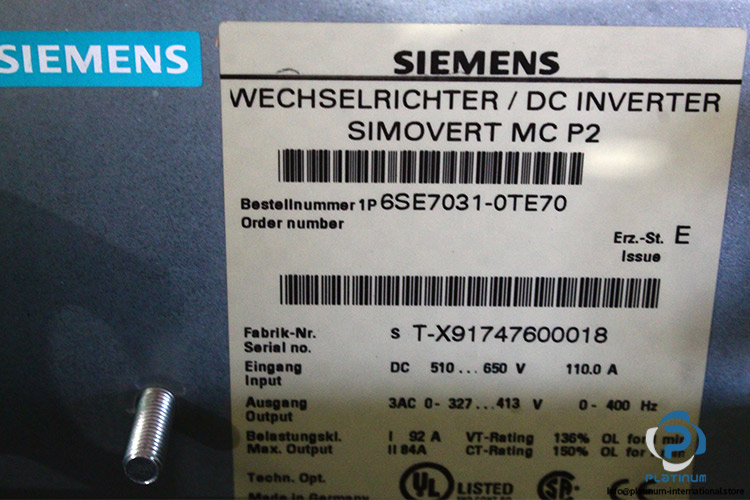

The Siemens 6SE7031-0TE70 is a high-performance DC Inverter from the SIMOVERT MC P2 series, engineered for demanding industrial motor-control applications. With a wide DC input range, high output current capability, and flexible frequency operation up to 400 Hz, this inverter ensures stable, efficient, and precise motion control.

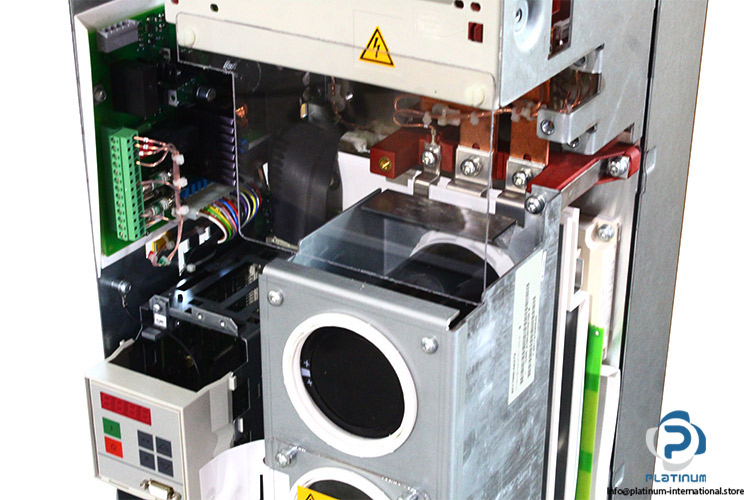

This unit includes multiple factory Siemens components such as a cooling fan assembly, IGBT module, LED display, and additional SIMOVERT drive modules—making it an excellent replacement, upgrade, or spare part for heavy-duty drive systems.

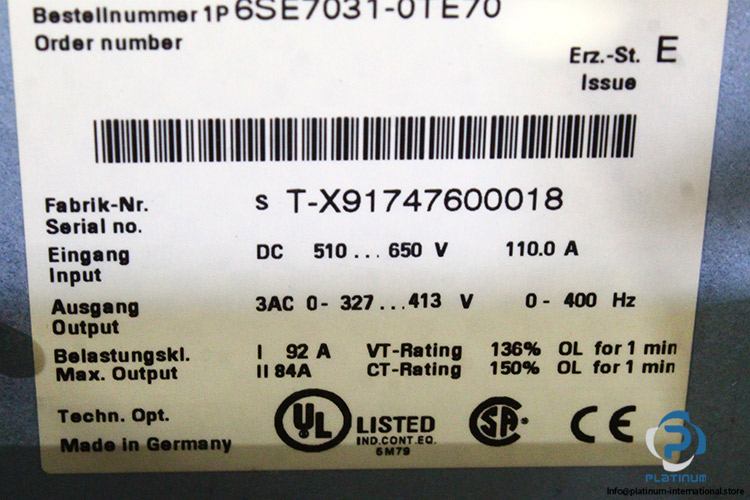

Manufacturer: Siemens
Type: DC Inverter
MRN: 6SE7031-0TE70
Issue / Revision: E
Codes: S: T-X91747600018
Range: SIMOVERT MC P2
Additional Attachments
| Supply Voltage | 510 … 650 V DC |
| Rated Input Current | 110 A |
| Rated Output Voltage | 3-Phase 0 - 327 … 413 V AC |
| Rated Output Current | 92 / 84 A |
| Frequency Range | 0 … 400 Hz |
| Protection Rating | IP00 |
| Dimensions | 1050 × 350 × 270 mm |

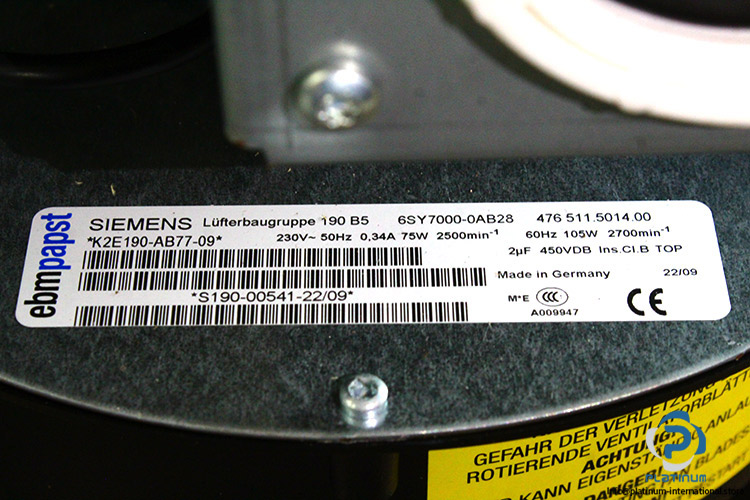

| Attachment | Siemens / ebm-papst Fan Assembly |
| Siemens Part Number | 6SY7000-0AB28 |
| ebm-papst Model | K2E190-AB77-09 |
| Code | 476 511.5014.00 |
| Serial Code | S190-00541-22/09 |
| Voltage | 230 V |
| Frequency (50 Hz) | 75 W, 2500 min?¹, 0.34 A |
| Capacitor | 2 µF, 450 V DB |
| Frequency (60 Hz) | 105 W, 2700 min?¹ |
| Insulation Class | B |

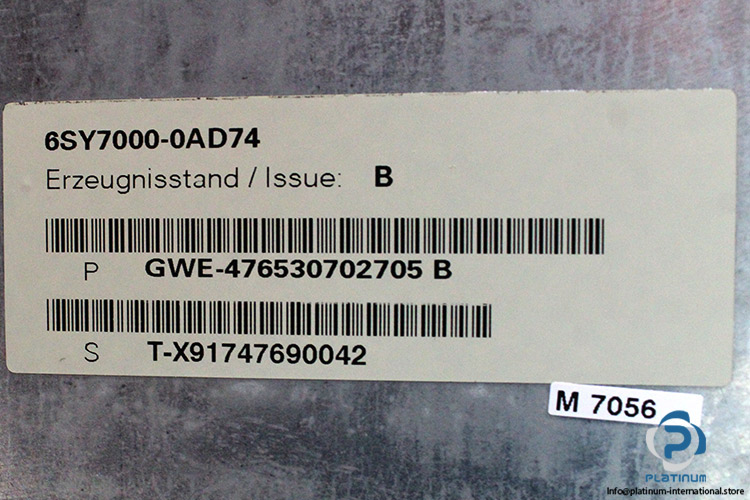

| Attachment | Siemens 6SY7000-0AD74 Power Module |
| Model / Part Number | 6SY7000-0AD74 |
| Issue / Version | B |
| P-Code | GWE-476530702705 B |
| Serial | T-X91747690042 |

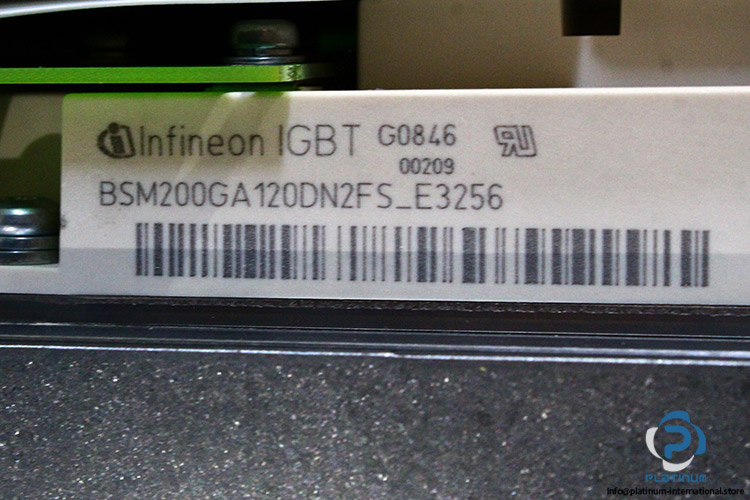

| Attachment | Infineon IGBT Module |
| Batch / Code | G0846 / 00209 |

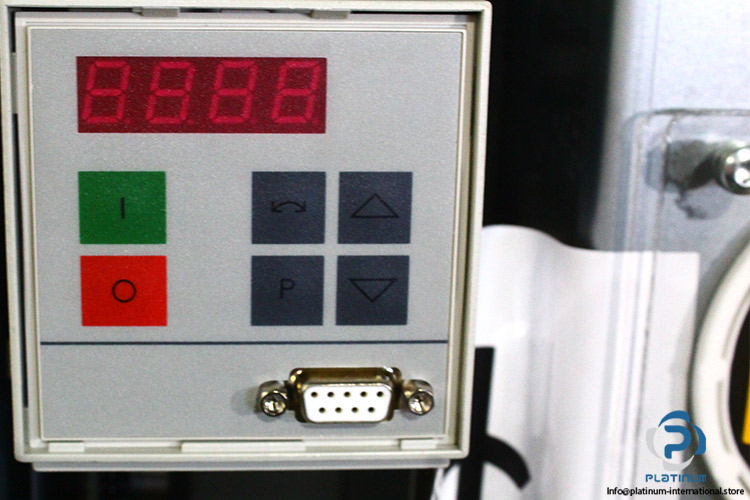

| 7-Segment LED Display | 4 Digit Module |

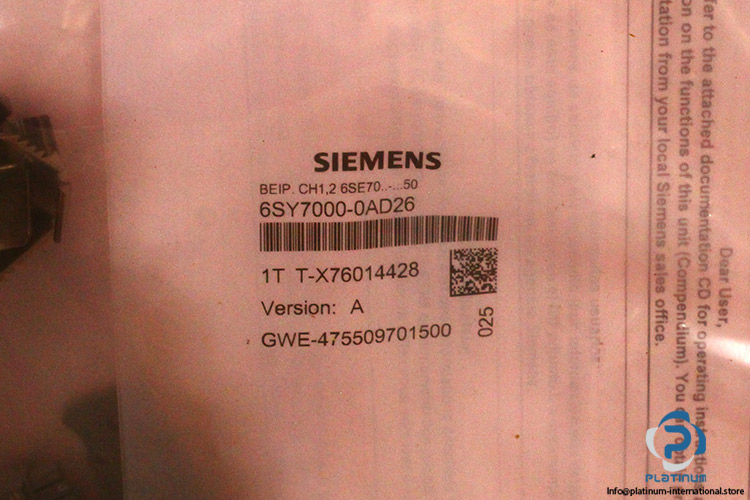

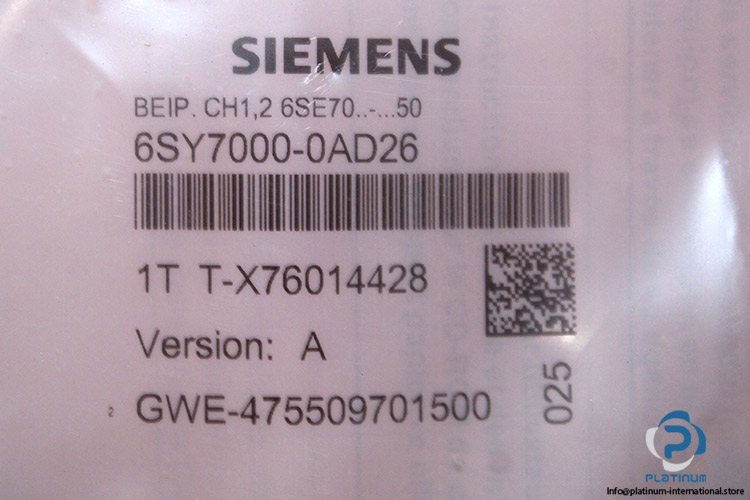

| Attachment | Siemens 6SY7000-0AD26 Drive Component |
| Product Line | SIMOVERT / SINAMICS Drive Components |
| Part No. | 6SY7000-0AD26 |
| Version | A |
| 1T Code / Serial | T-X76014428 |
| GWE Code | GWE-475509701500 |
