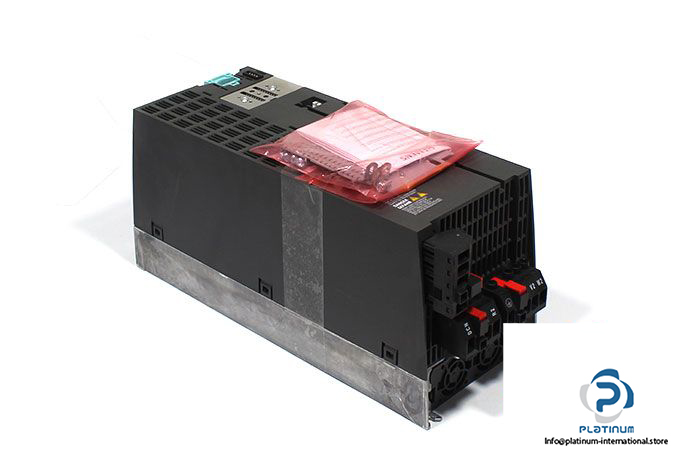

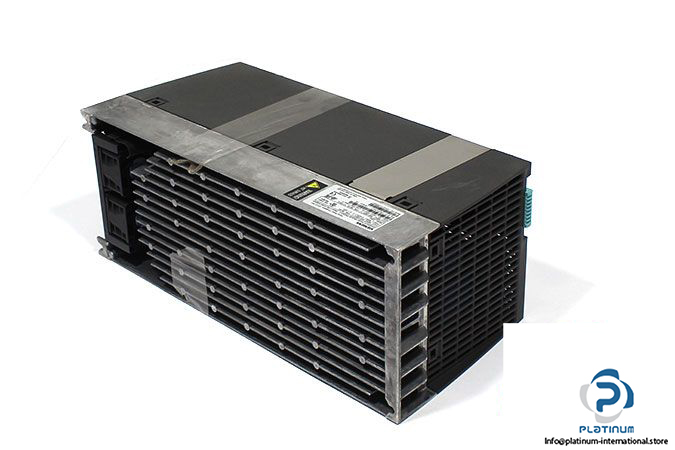

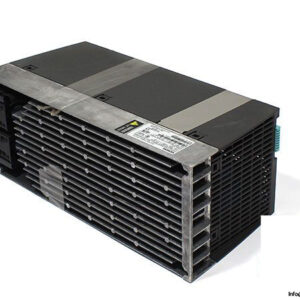

Siemens 6SL3210-1PE23-3AL0 Power Module

SIEMENS SINAMICS PM240-2 POWER MODULE “ 6SL3 210-1PE23-3AL0

The Siemens SINAMICS PM240-2 is a high-efficiency power module designed to deliver reliable motor control and energy conversion in demanding industrial environments. Part of the SINAMICS drive system family, this module supports both vector and V/f control, ensuring optimized performance across various applications.

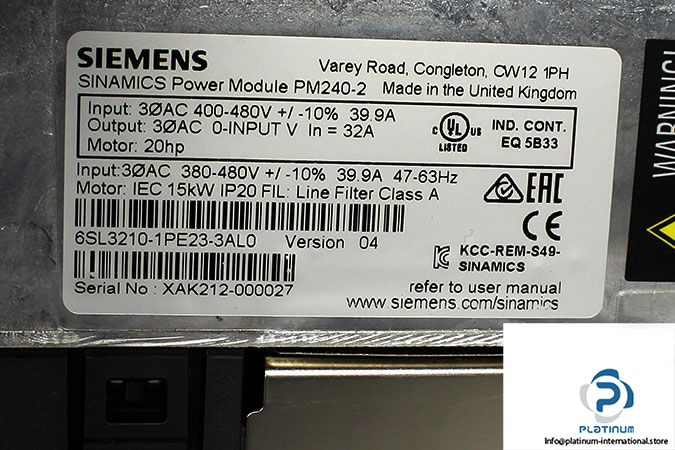

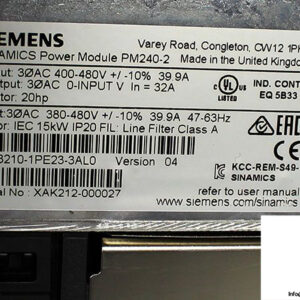

Manufacturer: Siemens
Type: Power Module
Family: SINAMICS PM240-2
Model: 6SL3 210-1PE23-3AL0
Serial No.: XAK212-000027
Version: 04

Input Specifications

• Voltage: 3 Phase 380 / 400 V AC
• Frequency: 47 / 63 Hz
• Rated Current (LO): 39.90 A
• Rated Current (HO): 36 A

Output Specifications

• Voltage: 3 Phase 400/480 V AC
• Frequency (Vector Control): 0 / 200 Hz
• Frequency (V/f Control): 0 / 550 Hz
• Rated Current (LO): 32 A
• Rated Current (HO): 26 A
• Max. Output Current: 52 A
• Rated Power (LO): 15 kW (20 hp)
• Rated Power (HO): 11 kW

Performance & Environmental

• Efficiency: 0.97 η
• Power Factor: 0.85 λ
• Ambient Temperature (LO): -10 / 40 °C
• Cooling: Internal Air Cooling
• Protection Class: IP20
• Dimensions: 355 x 140 x 165 mm
