Siemens 6XV1843-5EH10-0CC0 Fiber-Optic Cable
New
In stock2 unitsReady to ship

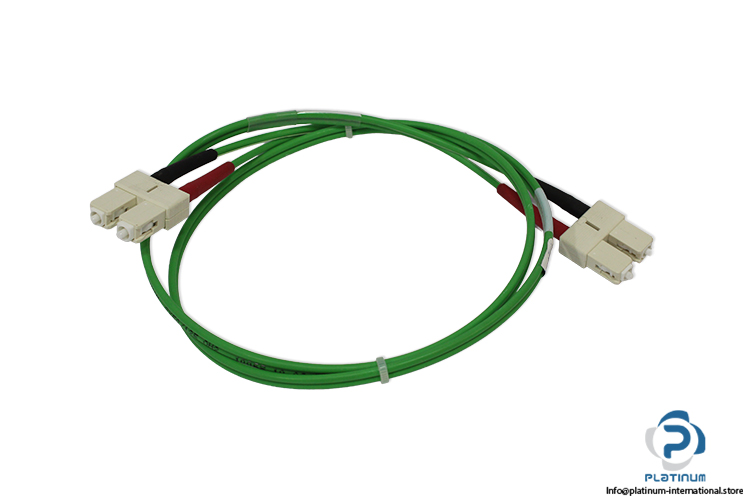

Fiber-Optic Cable SIEMENS pre-assembled fiber-optic cable designed for control cabinet applications, featuring SC DUPLEX connectors, OM2 multi-mode fiber, and durable industrial-grade construction.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| MNR | 6XV1843-5EH10-0CC0 |
| Suitability for use | Cable for applications in the control cabinet |
| version of the assembled FO cable | Pre-assembled with 2x SC DUPLEX connectors |

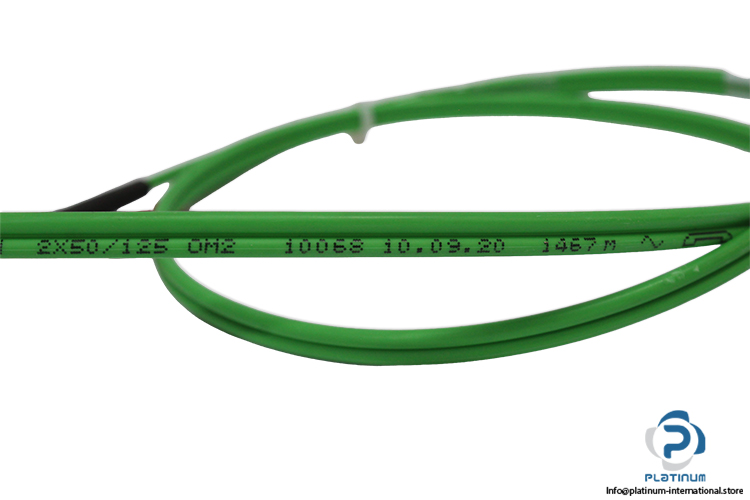

| cable designation | l-V(ZN)H 2x50/125 OM2 |
| wire length | 1 m |
| attenuation factor per length | at 850 nm / maximum 3.5 dB/km ? at 1300 nm / maximum 1.5 dB/km bandwidth length product ? at 850 nm 500 GHz·m ? at 1300 nm 1300 GHz·m |
| number of fibers / per FOC core | 1 |
| number of FO cores / per FOC cable | 2 |
| version of the FO conductor fiber | Multi-mode gradient fiber 50/125 µm, OM 2 design of the FOC core: Fixed core |
| outer diameter | of the optical fibers 50 µm ? of the optical fiber sheath 125 µm ? of the FOC core sheath 2.8 mm |
| width / of cable sheath | 5.9 mm |
| thickness / of cable sheath | 2.8 mm |
| material | of the fiber-optic cable core Quartz glass ? of the optical fiber sheath Quartz glass ? of the FOC core sheath FR-LSZH ? of the fiber-optic cable sheath LSZH ? of the strain relief Aramid fibers |
| color | of the FOC core sheath green/green |
| bending radius | with single bend / minimum permissible 42 mm |
| tensile load | during installation / short-term 500 N ? during operation / maximum 500 N |
| Condition | New |
| SKU | 1099099 |
| Weight | 0,04 |
