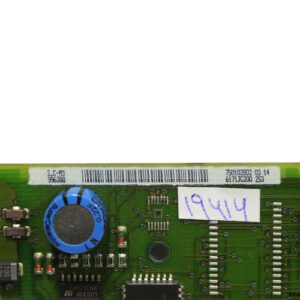

Siemens 750102802 03 14 / 6171JC200 253 / 750 1023 05A Circuit Board

In stock1 unitReady to ship

222,22$

Circuit Board Assembly

Complete Siemens OP 17-DP board set with 750102802 03 14, HB25503NYU-LYZC-02, and 750 1098 02 display for HMI panel replacement.

Manufacturer
SIEMENS
SKU
1060246
Condition
Used
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

Siemens 750102802 03 14 Circuit Board Assembly for OP 17-DP

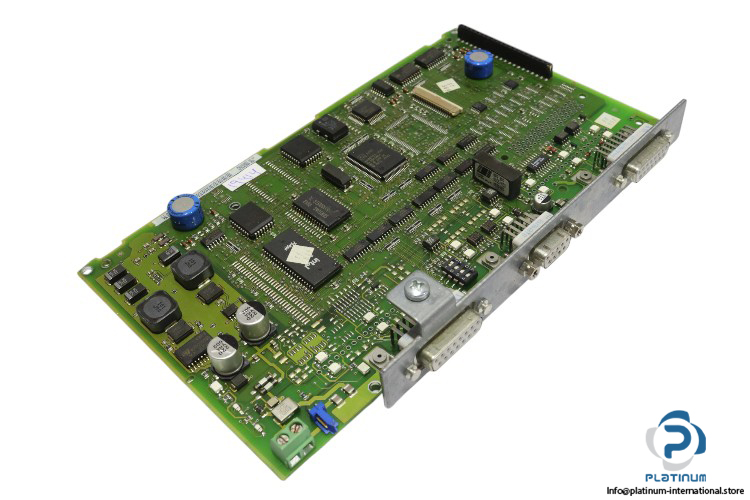

The Siemens 750102802 03 14 / 6171JC200 253 / 750 1023 05A circuit board is a complete OEM replacement set designed for the OP 17-DP operator panel (Part No.: 6AV3 617-1JC20-0AX1). This assembly ensures full HMI functionality in Siemens automation systems and is engineered for performance, compatibility, and long-term reliability. Included in the package are the HB25503NYU-LYZC-02 circuit board (Part No.: H 91200486 / HB25503-C) and the 750 1098 02 screen operator panel”providing both processing and visual interface components necessary for industrial operations.

  • Manufacturer: Siemens
  • Type: Circuit Board

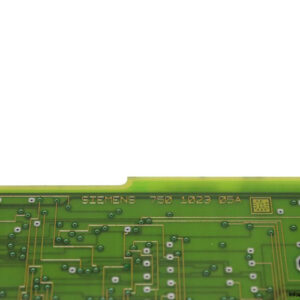

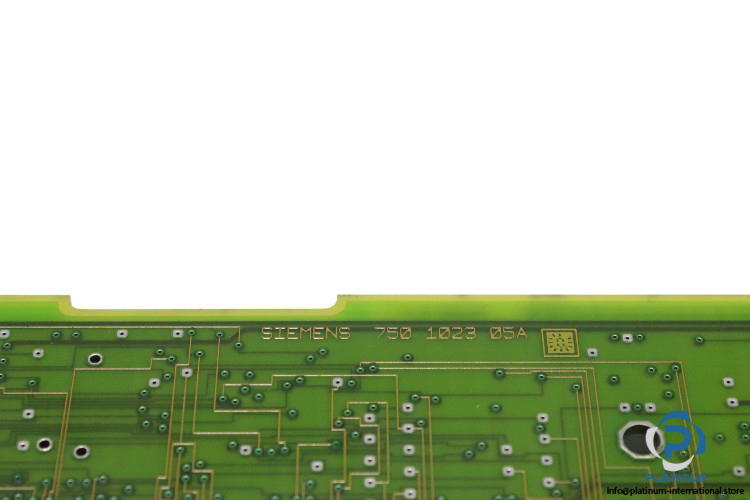

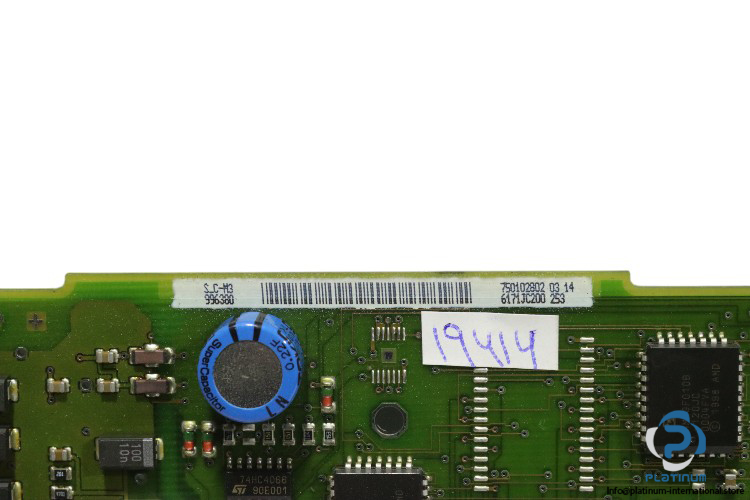

  • Model: 750102802 03 14 / 6171JC200 253 / 750 1023 05A
  • Spare For: OP 17-DP

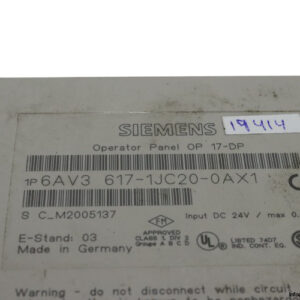

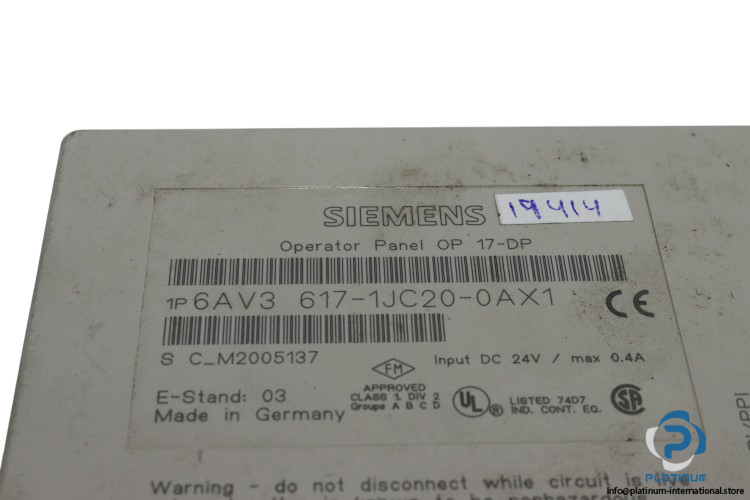

  • Part No.: 6AV3 617-1JC20-0AX1

Attachments Included:

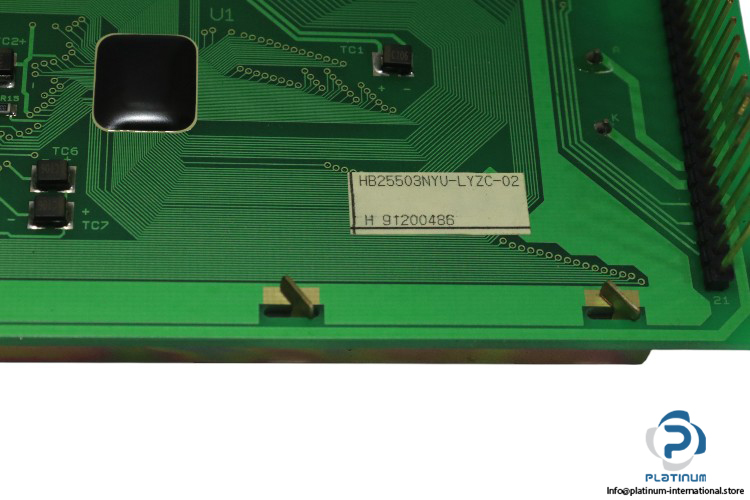

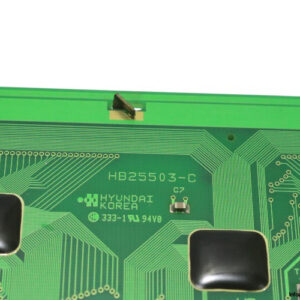

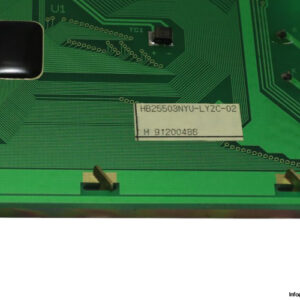

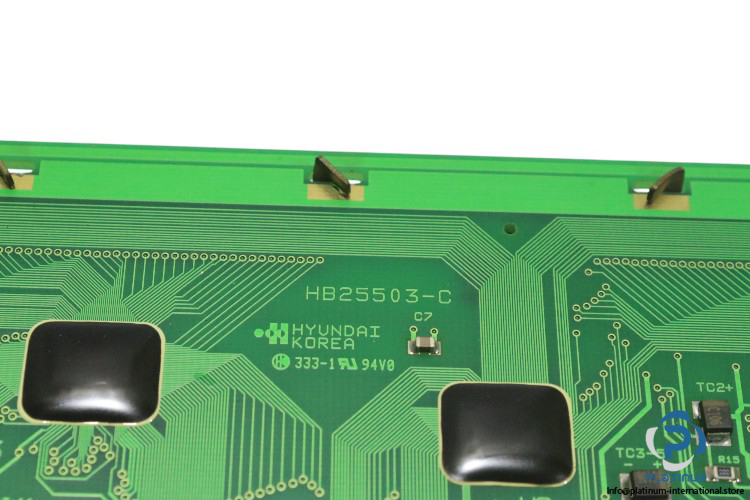

  • HB25503NYU-LYZC-02 Circuit Board “ Part No.: H 91200486 / HB25503-C

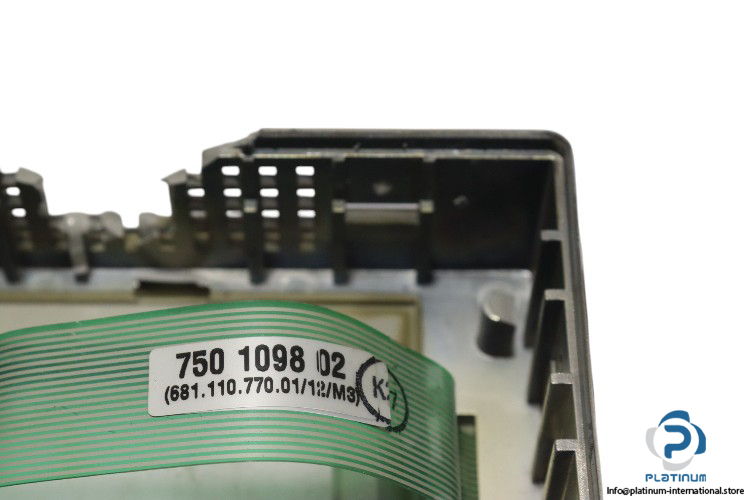

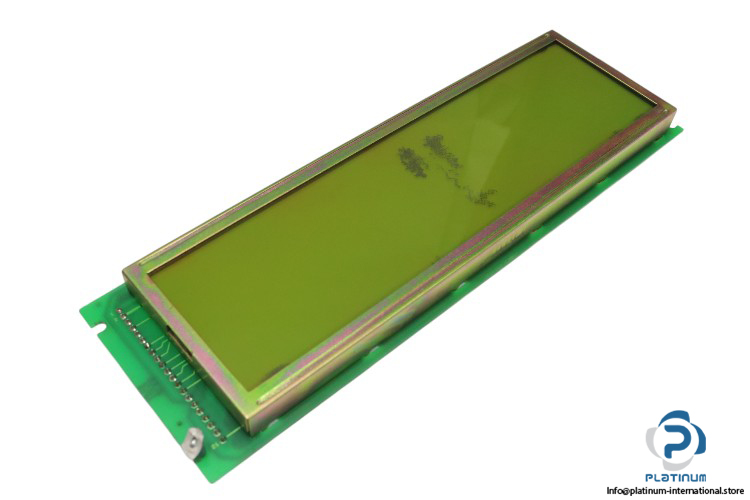

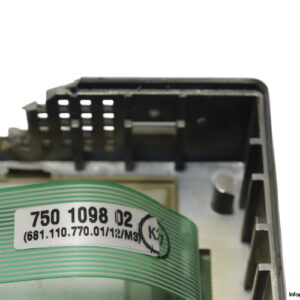

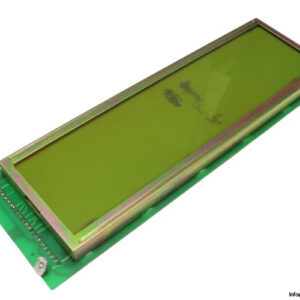

  • Screen Operator Panel: 750 1098 02
