Siemens 750102802 03 15 / 6171JC200 203 / 750 1023 05A Circuit Board

In stock1 unitReady to ship

222,22$

Circuit Board Assembly

Replacement board set for Siemens OP 17-DP panel, includes main board, HB25503NYU-LYZC-02, and 750 1098 02 screen for complete HMI restoration.

Manufacturer
SIEMENS
SKU
1060238
Condition
Used
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

Siemens Circuit Board Assembly for OP 17-DP

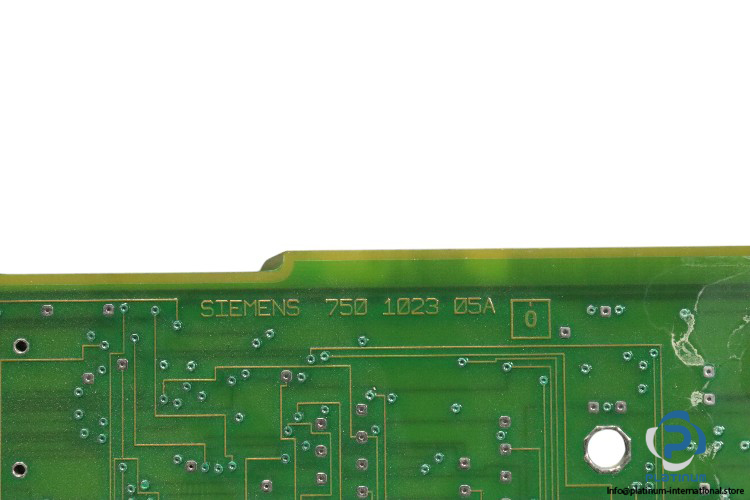

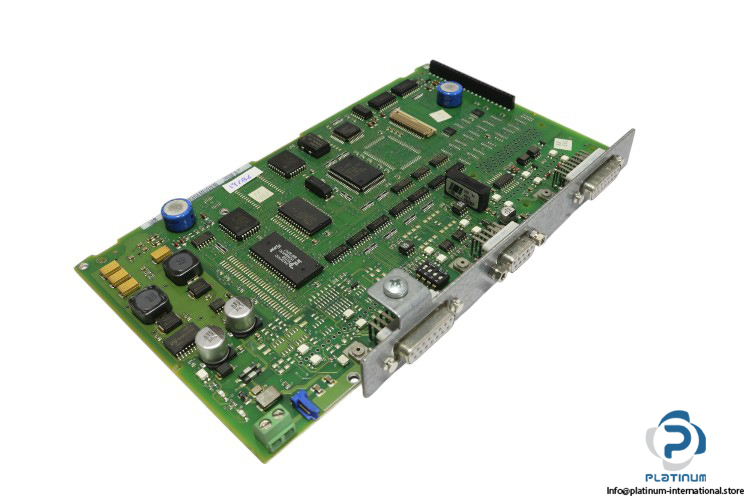

The Siemens circuit board assembly (Model: 750102802 03 15 / 6171JC200 203 / 750 1023 05A) is a genuine replacement set for the OP 17-DP operator panel (Part No.: 6AV3 617-1JC20-0AX1). This complete assembly includes the main control board, an additional HB25503NYU-LYZC-02 circuit board, and the 750 1098 02 operator panel screen. Ideal for restoring full HMI functionality in industrial automation systems, this Siemens original spare part ensures reliability, compatibility, and long-term performance.

  • Manufacturer: Siemens
  • Type: Circuit Board

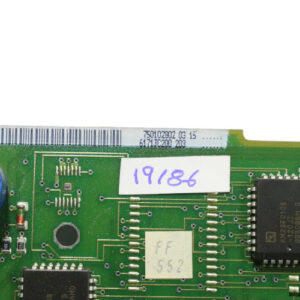

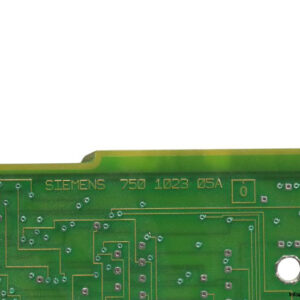

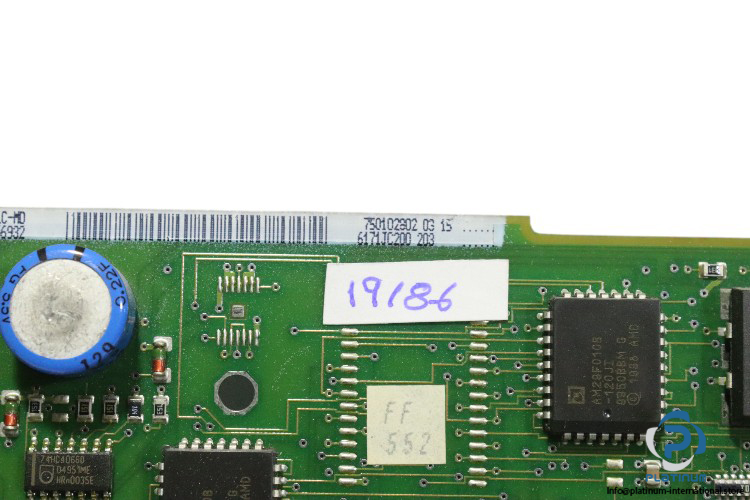

  • Model: 750102802 03 15 / 6171JC200 203 / 750 1023 05A

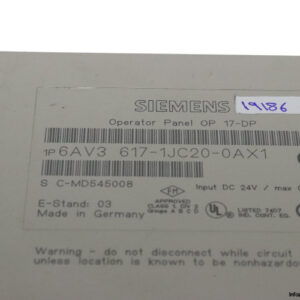

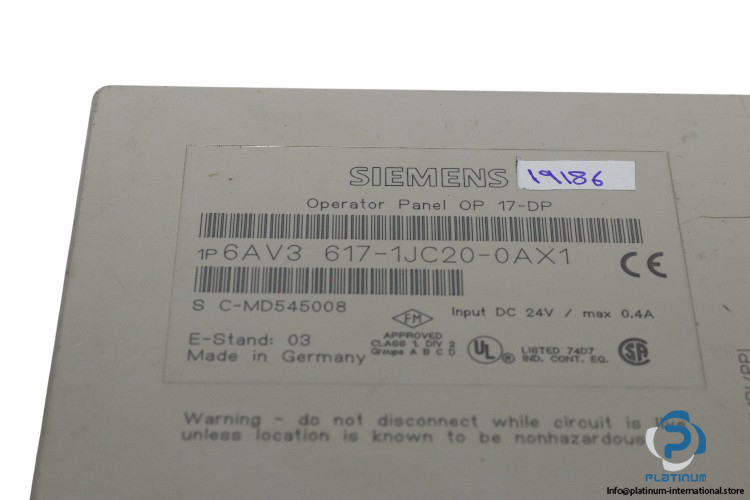

  • Spare For: OP 17-DP (Part No.: 6AV3 617-1JC20-0AX1)

Attachments Included:

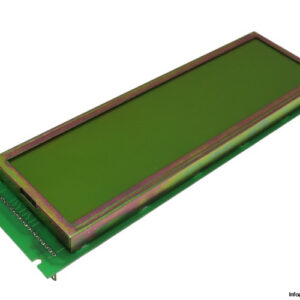

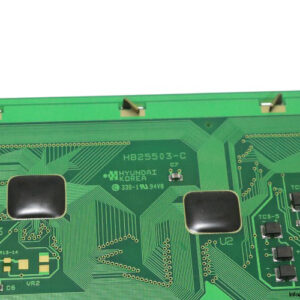

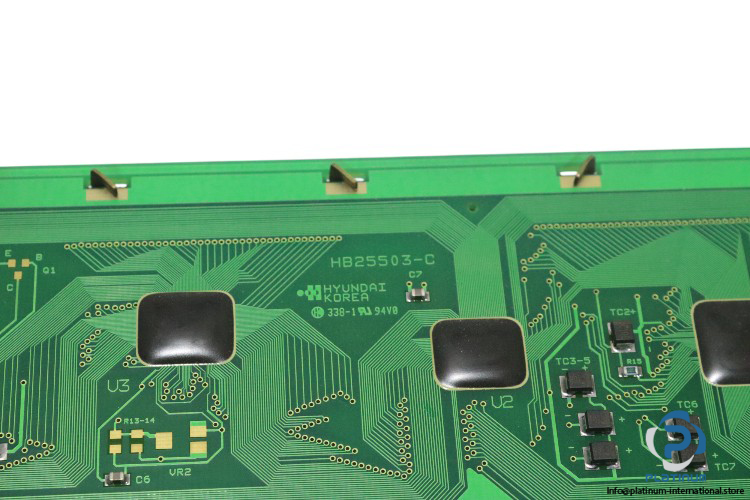

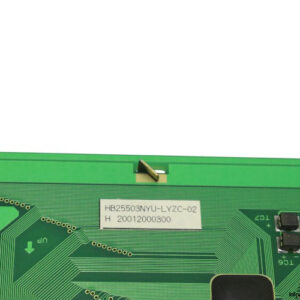

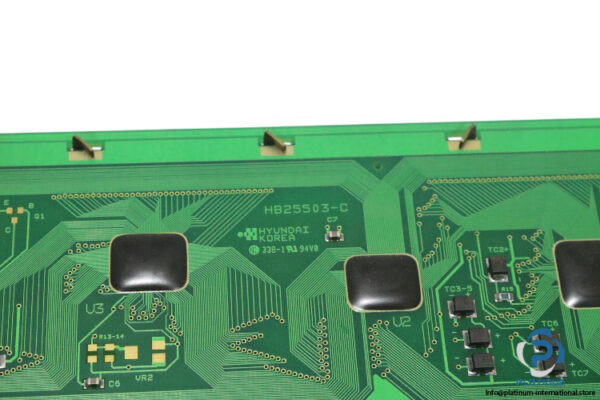

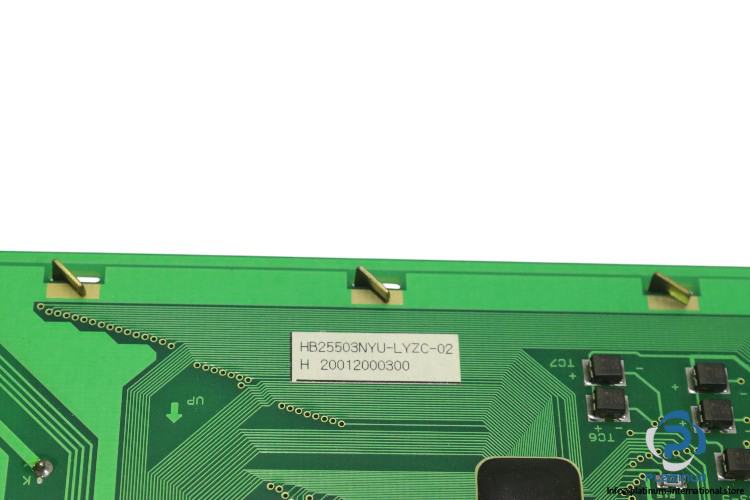

  • Model: HB25503NYU-LYZC-02
  • Type: Circuit Board
  • Part No.: H 20012000300 / HB25503-C

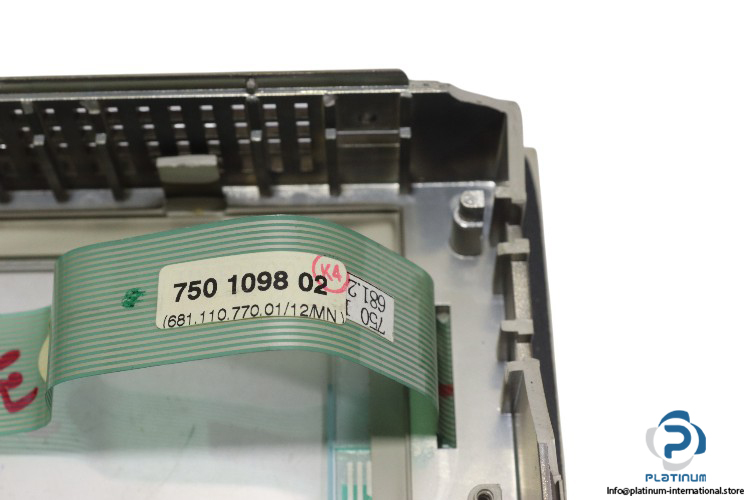

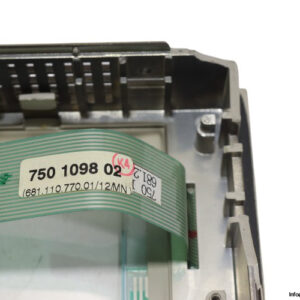

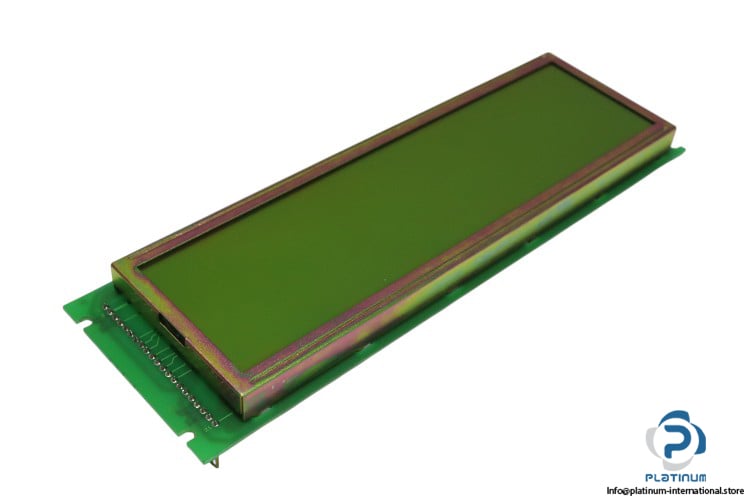

  • Model: 750 1098 02
  • Type: Screen Operator Panel
