Siemens 7MF0300-1FE01-5AF2-Z Pressure Transmitter
Pressure Transmitter

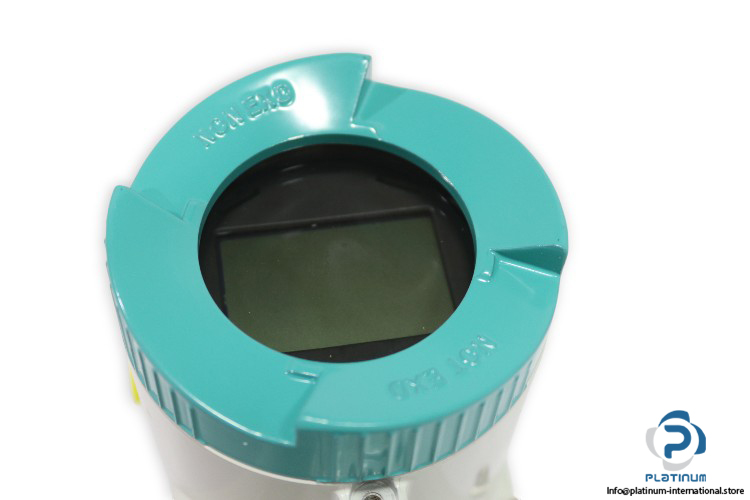

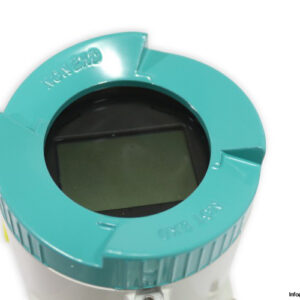

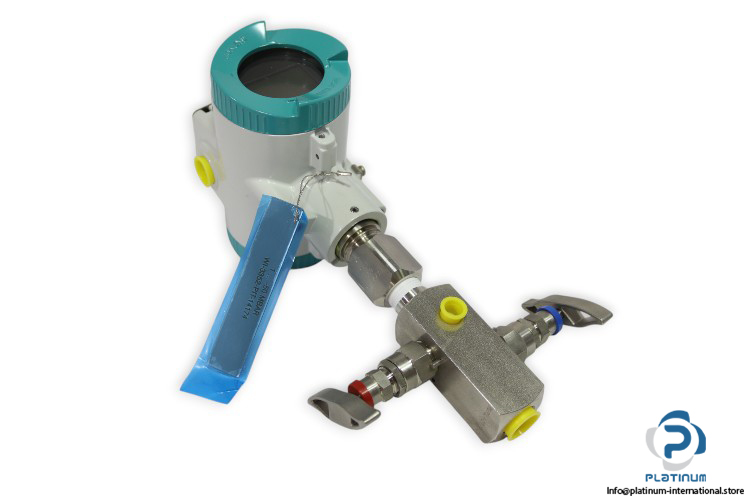

The SIEMENS SITRANS P320 7MF0300-1FE01-5AF2-Z is a high-accuracy industrial pressure transmitter featuring 4 to 20 mA HART output, stainless steel body, and IP66 protection, complete with AS-Schneider manifold block.SIEMENS SITRANS P320 7MF0300-1FE01-5AF2-Z Pressure Transmitter
The SIEMENS SITRANS P320 7MF0300-1FE01-5AF2-Z Pressure Transmitter is a high-precision process instrument engineered for reliable pressure measurement and control in demanding industrial environments. It features HART communication, stainless steel construction, and high protection level for durability and accuracy.
Manufacturer: SIEMENS
Type: Pressure Transmitter
Model: 7MF0300-1FE01-5AF2-Z
Series: SITRANS P320
Serial Number: N1N01410135496

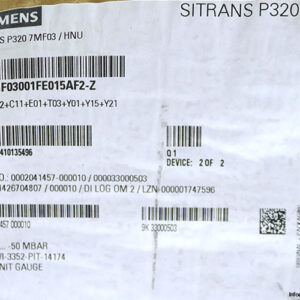

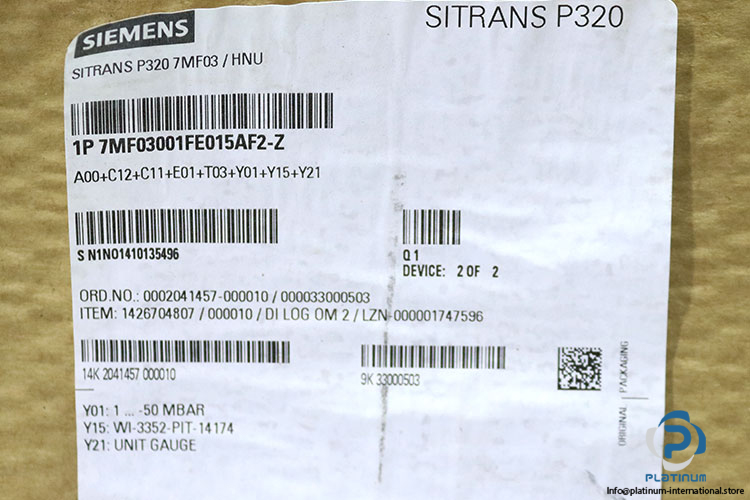

Order Number: 0002041457-000010 / 000033000503
Item: 1426704807 / 000010
LZN: 000001747596
Additional Codes: 14K 2041457 000010 / 9K 33000503
Options String: A00 + C12 + C11 + E01 + T03 + Y01 + Y15 + Y21
Certification Codes: FM19U50SSX, CSA18CA70163103
Attached Components

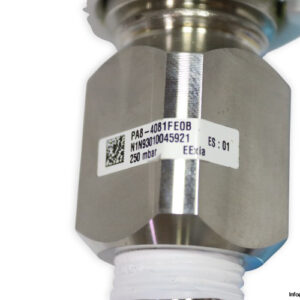

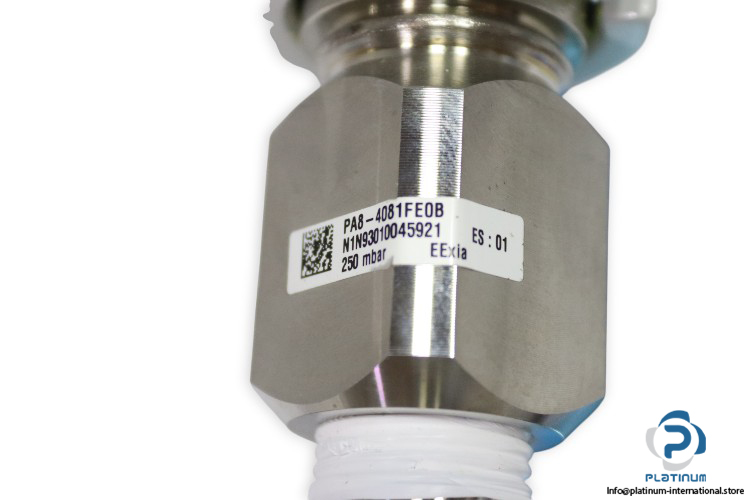

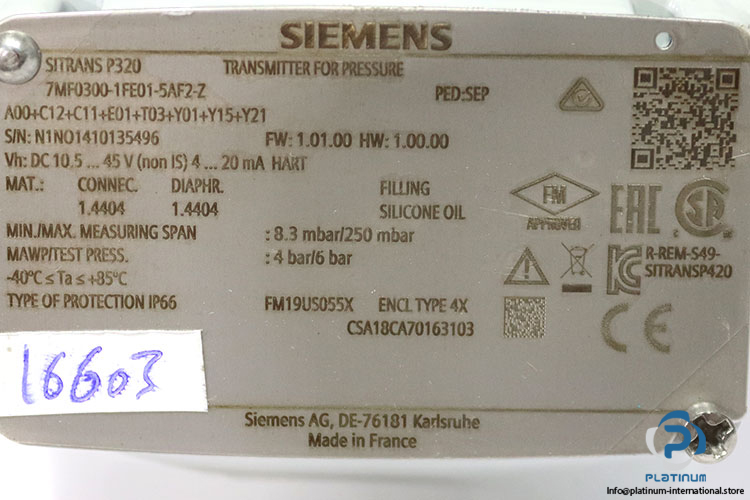

Pressure Sensor Label:

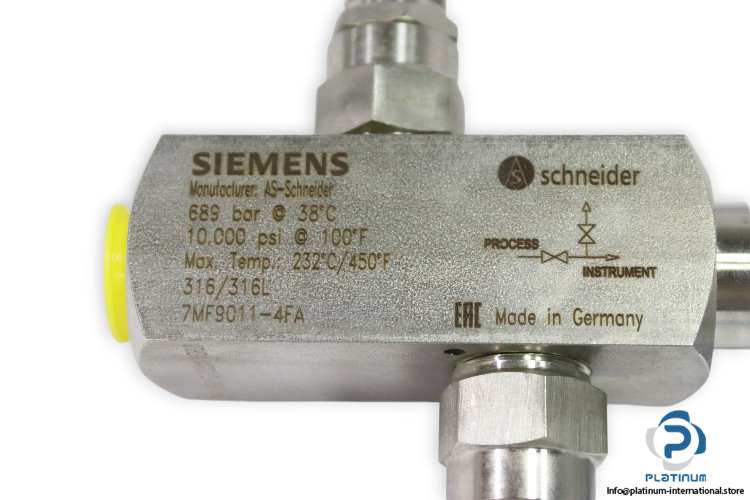

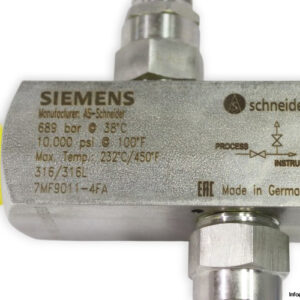

Manifold Block (AS-Schneider):

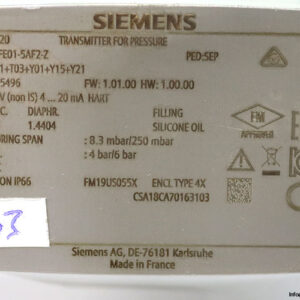

| Firmware Version | 1.01.00 |
| Hardware Version | 1.00.00 |
| Voltage Supply | 10.5 to 45 V DC |
| Signal Output | 4 to 20 mA HART |
| Material (Connection / Diaphragm) | 1.4404 / 1.4404 |
| Filling Fluid | Silicone Oil |
| Minimum / Maximum Measuring Span | 8.3 mbar / 250 mbar |
| Maximum Working / Test Pressure | 4 bar / 6 bar |
| Protection Type | IP66 (Enclosure Type 4X) |

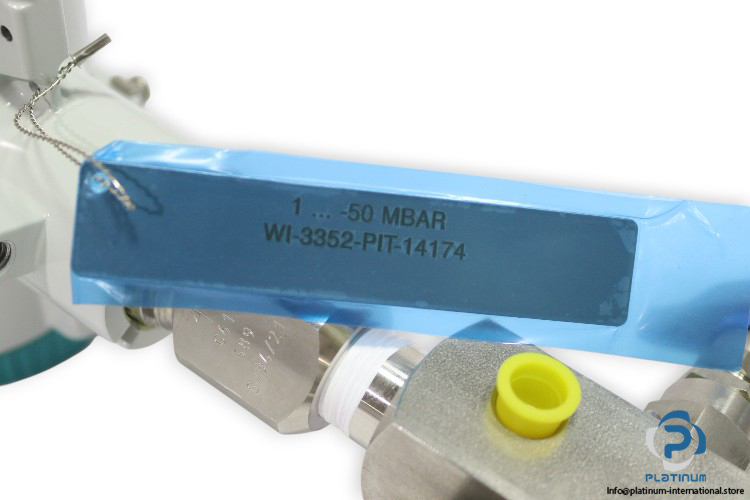

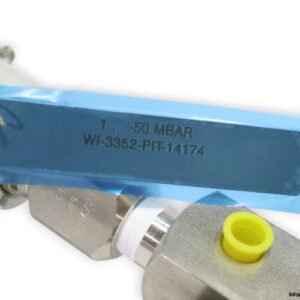

| Pressure Tag | WI-3352-PIT-14174 |
| Range | 1 to 50 mbar |
| Code | PA8-4081FE0B |
| Serial Number | N1N93010045921 |
| Pressure Rating | 250 mbar |
| Safety Class | Ex ia |
| Version | ES:01 |
| Pressure Rating | 689 bar at 38 degree Celsius (10,000 psi at 100 degree Fahrenheit) |
| Maximum Temperature | 232 degree Celsius / 450 degree Fahrenheit |
| Material | 316 / 316L Stainless Steel |
