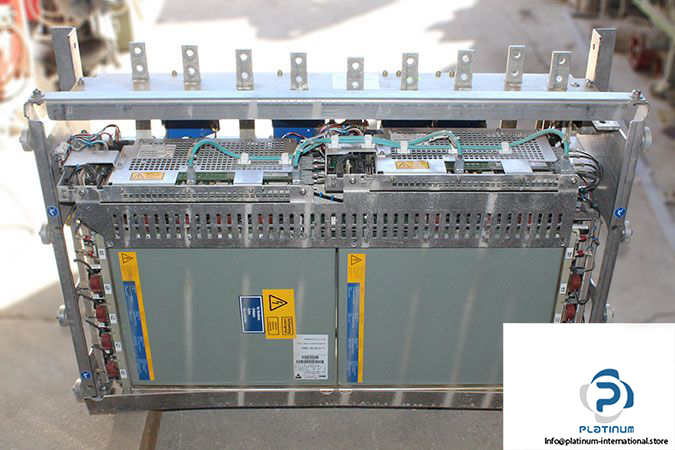

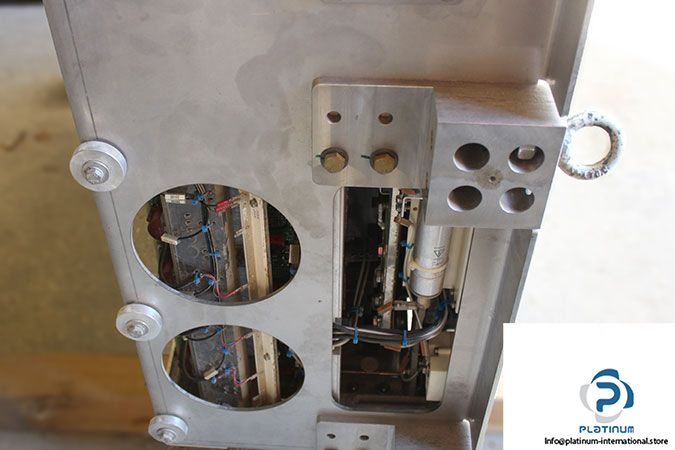

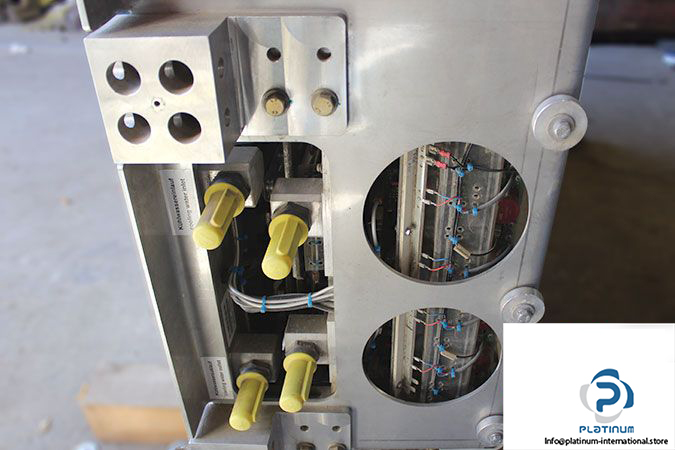

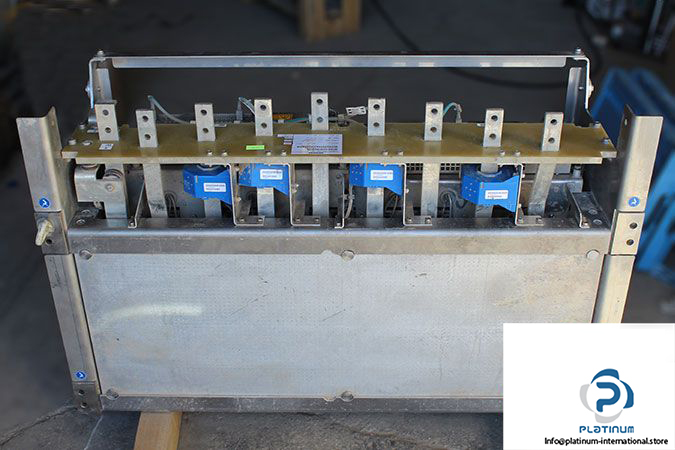

Siemens A5E00727695 Compact Converter Kernel

SIEMENS SIBAC BB AC-1800W COMPACT CONVERTER KERNEL

The SIEMENS SIBAC BB AC-1800W is a high-performance compact converter kernel engineered for demanding power conversion and motor drive applications. Designed with advanced water cooling and integrated with VISHAY™s robust DCMKP capacitor, it ensures reliable operation in high-voltage environments and heavy-duty industrial systems.

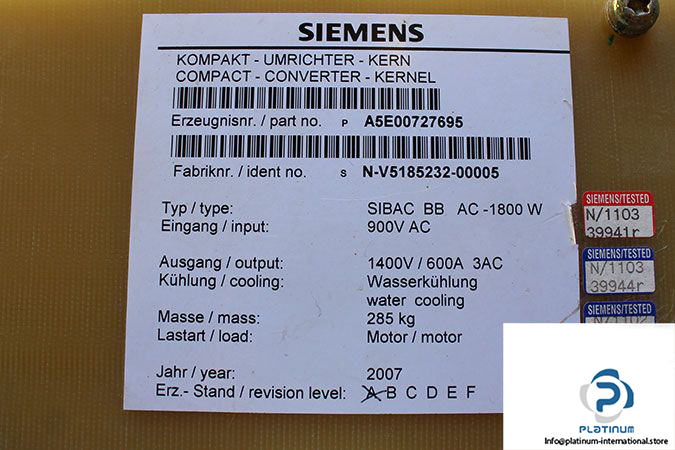

Manufacturer: SIEMENS
Type: Compact Converter Kernel
Model: SIBAC BB AC-1800W
Part No.: A5E00727695
ID No.: N-V5185232-00005

Input / Output Specifications

• Input Voltage: 900 V AC
• Output Voltage: 1400 V (3AC)
• Output Current: 600 A
• Cooling Method: Water Cooling

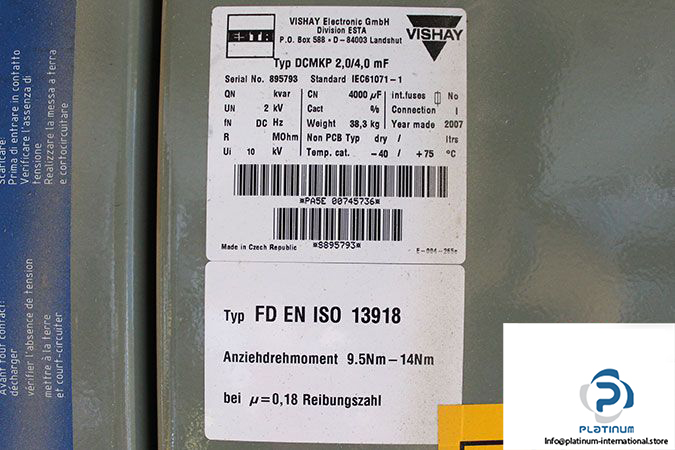

Attached Capacitor Module: VISHAY DCMKP Power Electronic Capacitor

Reference: FD EN ISO 13918 / 00745736 / S895793

Key Features

• High Impulse Current Rating
• Low Inductance
• High Reliability and Lifetime Expectation
• Resistance to Heavy-Duty Shock and Vibration
• Non-Polar Dielectric
• Dry Resin Filled

Applications

• DC Link Capacitors for HVDC / STATCOM
• Static Converters for Transportation (Locomotives, Trams, Trolley Buses)
• Industrial Converters
• DC Supply Equipment
• High Voltage Testing Systems
• Impulse Discharge Energy
• Harmonic Filtering

Technical Specifications

• Min. Rated Voltage: 750 V DC
• Max. Rated Voltage: 10000 V DC
• Capacitance Range: 50 μF “ 20000 μF
• Capacitance Tolerance: ± 5%
• Operating Temperature: -40 °C to +75 °C (Hotspot)
• Inductance: < 40 nH
• Torque: 9.5 NM – 14 NM
• Casing Material: Aluminum or Stainless Steel

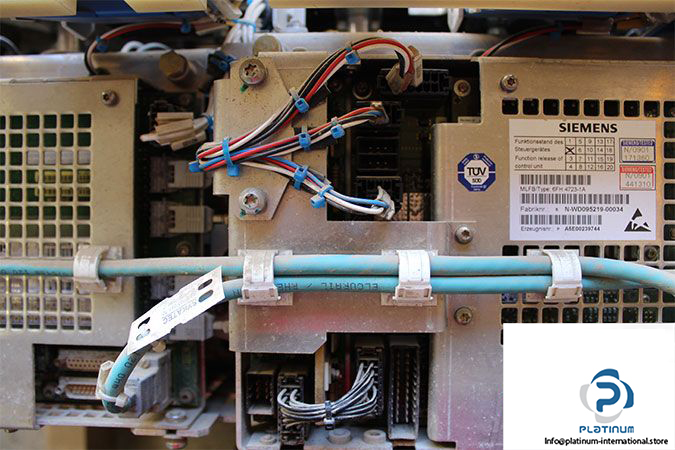

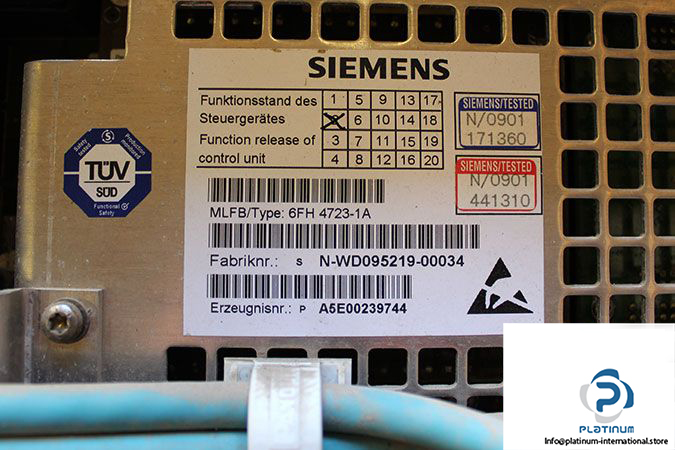

Attached With: SIEMENS 6FH 4723-1A A5E00239744 Compact Converter Kernel
Ref No.: N-WD095219-00034
