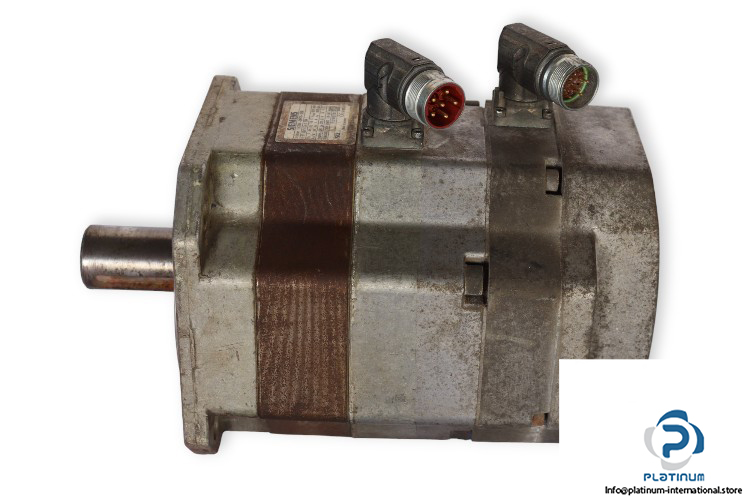

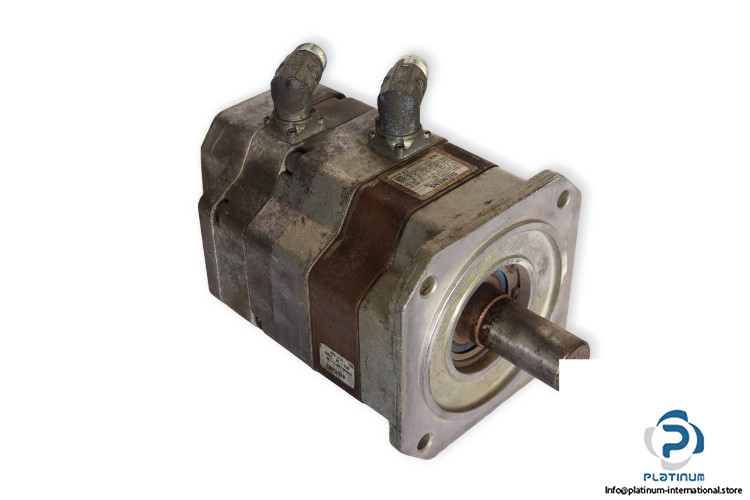

Siemens IFK7080-5AF71-1EB0 Synchronous Servo Motor
Used
In stock1 unitReady to ship
SYNCHRONOUS SERVO MOTOR
SIEMENS IFK7080-5AF71-1EB0 is a compact, natural-cooled synchronous servo motor delivering 6.1 Nm torque and 6000 min»¹ max speed, with integrated encoder and robust IP64 protection, ideal for high-precision automation systems.24VDC60008BrakeCompactDriveEncoderEnDatHighIFK7080-5AF71-1EB0IndustrialIP64motorPolerpmServoSiemensSynchronousTorque
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
SIEMENS IFK7080-5AF71-1EB0 SYNCHRONOUS SERVO MOTOR
This high-precision Siemens synchronous servo motor is designed for advanced automation systems. With natural cooling and compact design, it offers optimal efficiency, high dynamic performance, and reliable braking. Ideal for integration in high-speed, high-torque applications.

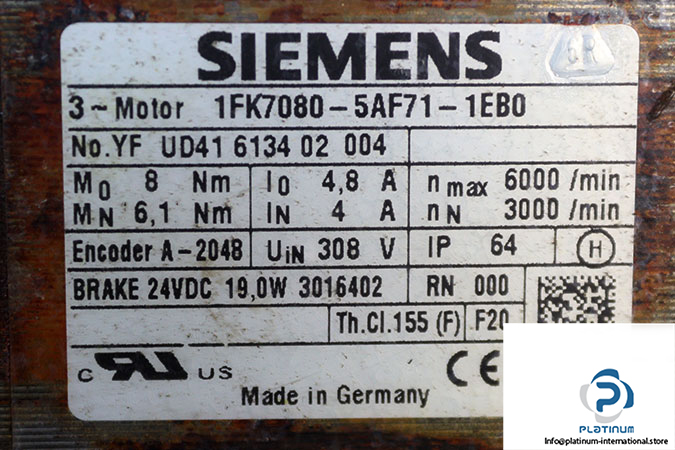

Manufacturer: SIEMENS
Type: Synchronous Servo Motor
Model: IFK7080-5AF71-1EB0
NO.YF: UD41613402004
Brake Specifications
Electronics
| Motor Type | Compact |
| Cooling | Natural cooling |
| Construction Type | IM B5 |
| Shaft Height | 80 |
| Number of Poles | 8 |
| Rated Torque | 6.1 Nm |
| Stall Torque | 8 Nm |
| Rated Voltage | 308 V |
| Rated Current | 4 A |
| Stall Current | 4.8 A |
| Rated Speed | 3000 min»¹ |
| Max Speed | 6000 min»¹ |
| Mechanical Limiting Speed | 12000 rpm |
| Moment of Inertia | 18.1 kgcm² |
| Thermal Class | F |
| Protection Class | IP64 |
| Encoder Type | A-2048 (Abs. encoder EnDat 2048 pulses/rev) |
| Brake Type | EBD 1.5 BN |
| Brake Part No. | 3016402 |
| Braking Voltage | 24 VDC |
| Braking Power | 19 W |
| Braking Torque | 5.5 Nm |
| Max. Braking Torque | 6.8 Nm |
| Braking Current | 7.2 A |
| Operating Voltage | 5 V ± 5% |
| Power Consumption | Max. 300 mA |
