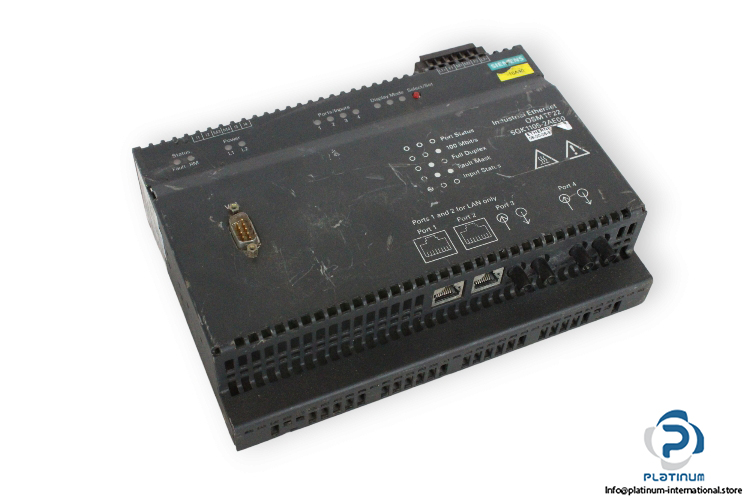

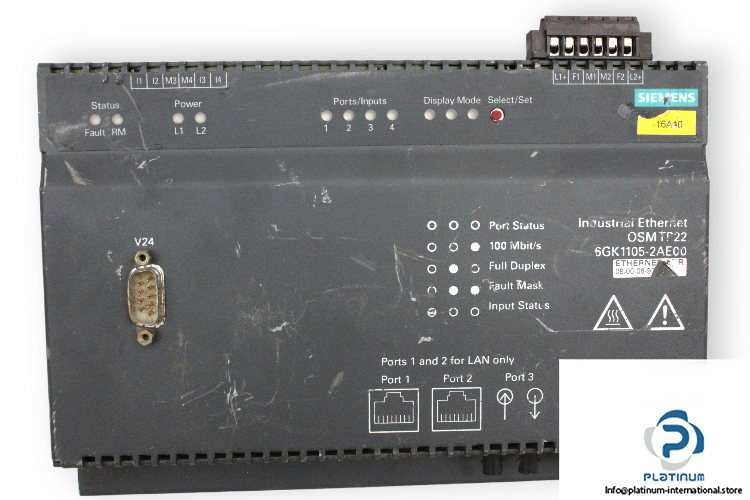

Siemens OSMTP22 Industrial Ethernet

Manufacturer: Siemens
Type: Industrial Ethernet
Model: OSMTP22

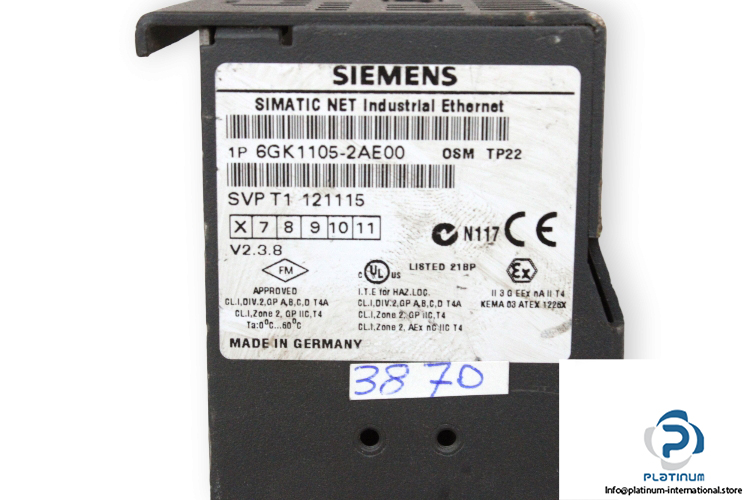

Part No: 6GK1105-2AE00

Transfer Rate: 10 Mbit/s, 100 Mbit/s
Number of Electrical Connections: 2

Type Of Electrical Connection:

For Signaling Contact: On 6-pole terminal block

For Power Supply: 6-pole plug-in terminal block

Operating Voltage of The Signaling Contacts: 24 V DC

Operating Current of The Signaling Contacts: 0.1 A

Number of Digital Inputs: 4

Number of Electrical Connections for Digital Input Signals: 1

Type Of Electrical Connection for Digital Input Signals: 4-pole plug-in terminal block

Signal Voltage:

For Signal 0: -30 … +3 V DC

Rated Value: 24 V

For Signal 1: 13 … 30 V DC

Rated Value: 24 V

Input Current at Digital Input:

With Signal 0: 0.008 mA

For Signal 1: 0.008 A

Power Loss: 20 W

Protection Class: IP20

Dimensions: 217 X 161 X 69 mm
