Siemens QAA29.11/ALG Room Unit
New
In stock1 unitReady to ship
ROOM UNIT
Siemens QAA29.11/ALG Room Unit for precise temperature measurement and manual room controller operation. Features LG-Ni 1000 sensor, 230 V AC input, and IP30 protection.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

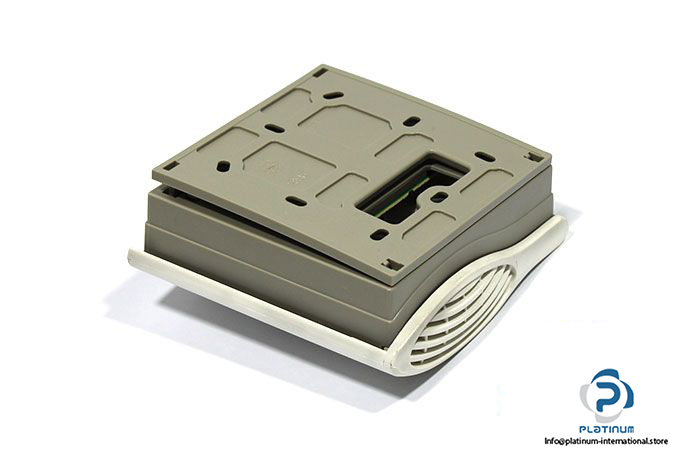

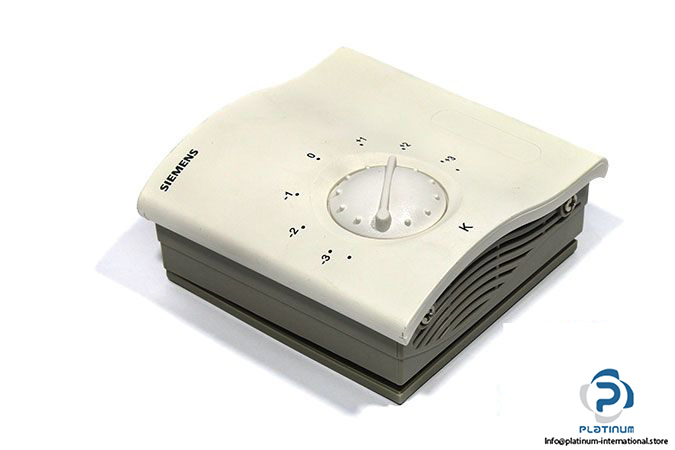

SIEMENS QAA29.11/ALG ROOM UNIT
The Siemens QAA29.11/ALG Room Unit is designed for use in rooms controlled by an individual room control system. It accurately measures the room temperature and allows manual operation of a room controller, ensuring optimal comfort and energy efficiency in heating and cooling applications.
Manufacturer: Siemens
Type: Room Unit
Model: QAA29.11/ALG
REF NO: 120427D
| Application | Room temperature measurement and manual operation of a room controller |
| Voltage | 230 V AC |
| Output Current | 6 A |
| Sensing Element | LG-Ni 1000 |
| Setting Range | ±3 K |
| Resistor Range | 995 / 1185 „¦ |
| Connection Terminals | For cross-sectional areas of 2 x 1.5 mm² or 1 x 2.5 mm² |
| Time Constant | 7 min |
| Operating Temperature | 0 / 50 °C |
| Protection Class | IP30 |
| Dimensions | 99.6 x 96.4 x 42.8 mm |
