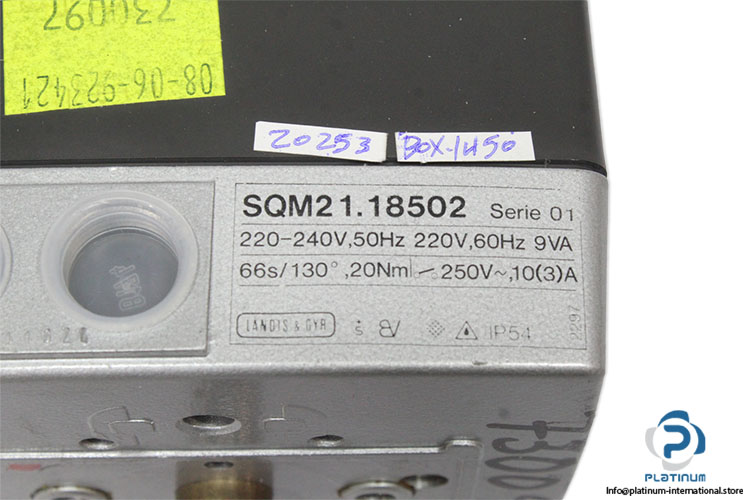

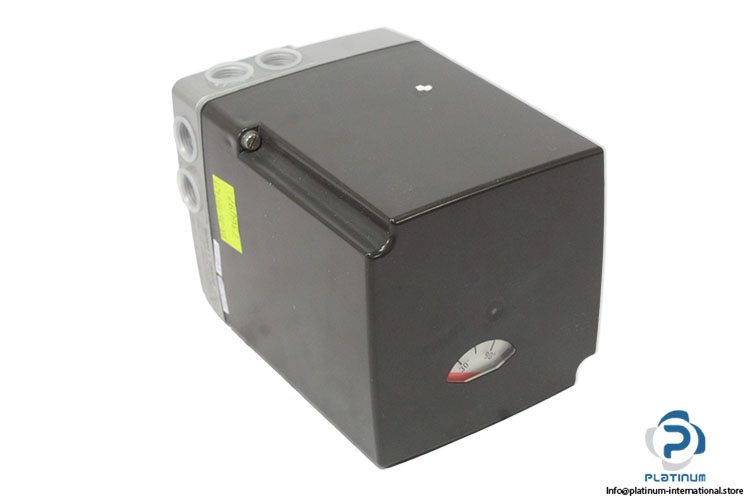

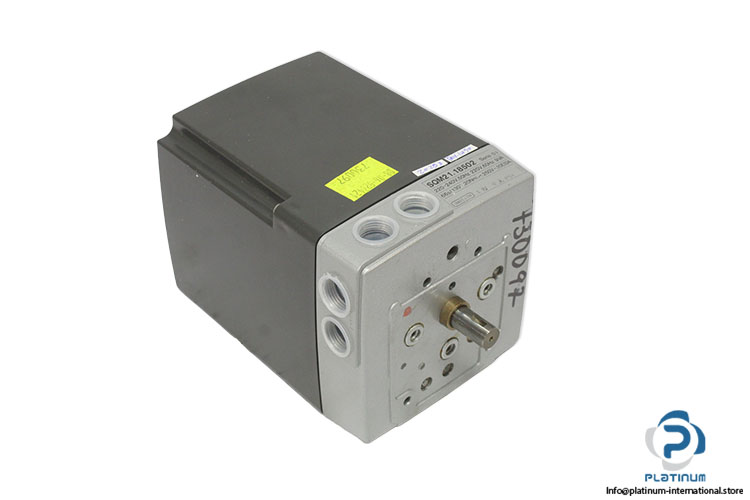

Siemens SQM21.18502 Electric Actuator
New
In stock1 unitReady to ship
499,99$
Actuator The SIEMENS SQM21.18502 actuator is designed for controlling air dampers and oil burner control valves. It features a synchronous motor, 20 Nm torque, 130° rotation angle, five auxiliary switches, and IP54 protection for reliable industrial operation.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Ref. No. | 0704100013 |
| Series | SQM2 |
| Used for | Air Dampers and Control Valves of Oil Burners |
| Nominal Torque | 20 Nm |
| Starting Torque | 20 Nm |
| Holding Torque | 12 Nm |

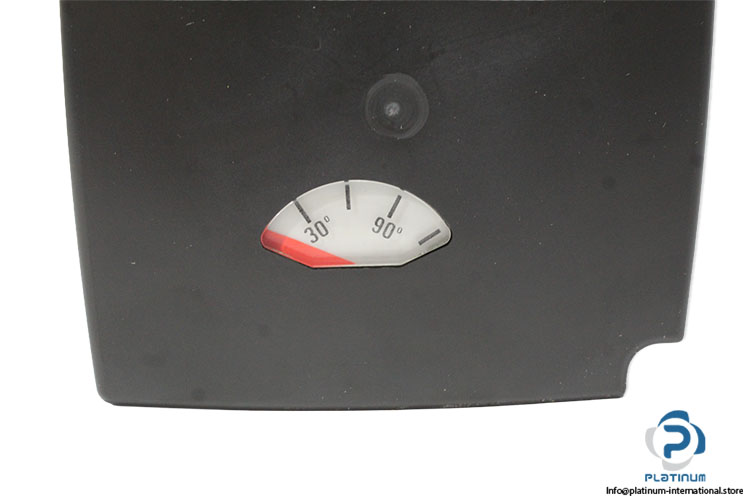

| Angular Rotation | 130° |
| Direction of Rotation | Clock Wise |
| Running Time for Angular Rotation | 66 s |
| Supply Voltage | 220 ... 240 V AC |
| Frequency | 50 … 60 Hz |
| Power Consumption Max. | 9 VA |
| Contact | Normally Open (NO) |
| Contact Ratings | 250 V AC, 10(3) A |
| Switches No. | 5 |
| Actuator Motor | Synchronous Motor |
| Protection Class | IP54 |
| Ambient Temperature | -20 ... 60 °C |
| Dimensions | 184 x 120 x 120 mm |
| Stock Key | CON003 |
| Condition | New |
| SKU | 1102280 |
| Weight | 1,83 |
