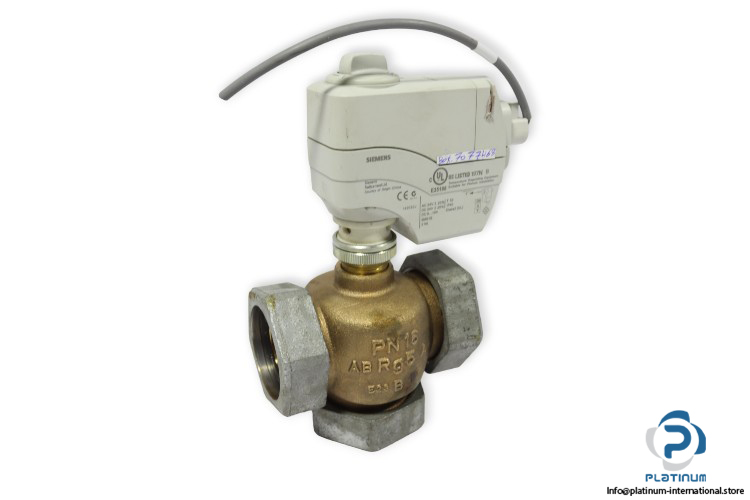

Siemens SSC619 Electromotoric Actuator With 2 Inch Valve
SIEMENS Electromotoric Actuator SSC619 “ Precise 24 V actuator with 5.5 mm stroke, IP40 protection, and 2-inch valve compatibility. Ideal for industrial and HVAC systems.

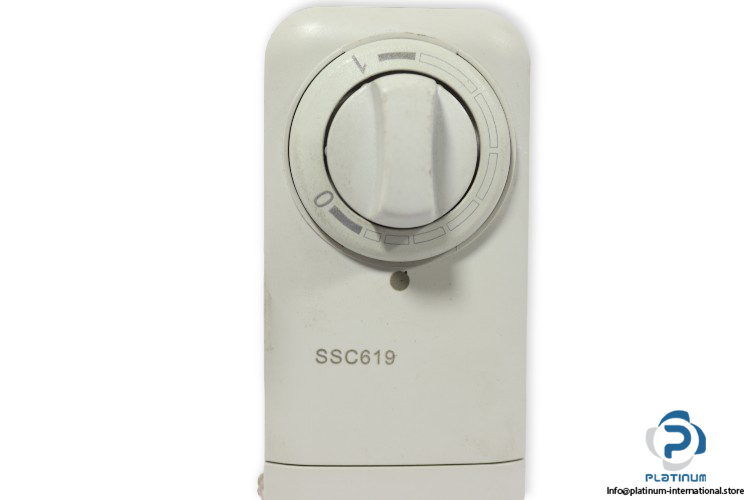

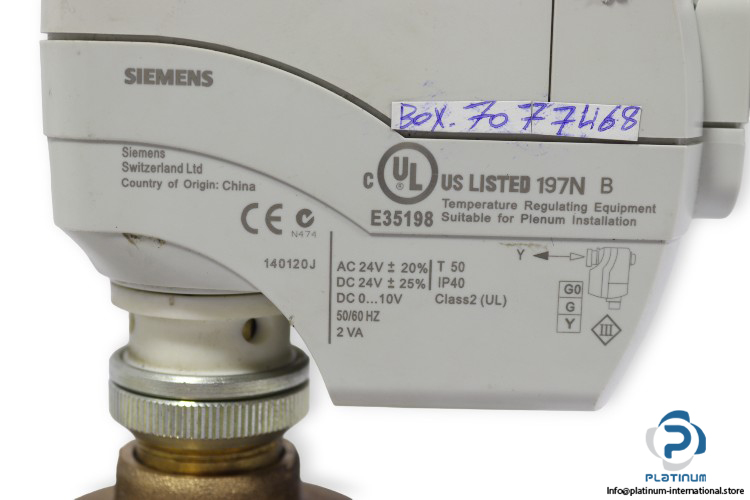

SIEMENS Electromotoric Actuator SSC619
Manufacturer: SIEMENS
Type: Electromotoric Actuator
Model: SSC619
Ref No.: E35198
The SIEMENS Electromotoric Actuator SSC619 is a high-performance actuator engineered for precise and efficient control of 2-inch valves. Designed to operate in industrial and HVAC systems, it ensures reliable performance under demanding conditions.
Technical Specifications:
- Operating Voltage: 24 VDC/AC
- Frequency: 50 / 60 Hz
- Stroke: 5.5 mm
- Control Signal: 0 to 10 VDC
- Power Consumption: 2 VA
- Degree of Protection: IP40
- Running Time at 50 Hz: 30 s
Attached Component:

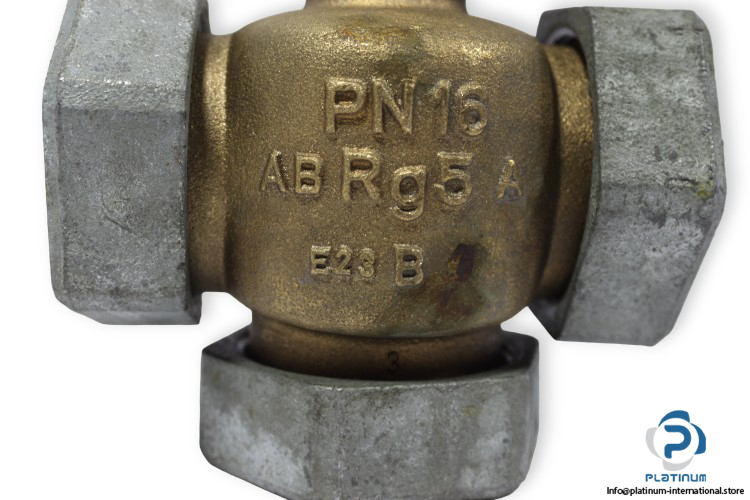

- Valve: 2 Inch
- Nominal Pressure: 16 bar
- Port Size: 2 in
This actuator is optimized for controlling valves in applications requiring precise positioning and control signals ranging from 0 to 10 VDC. Its IP40 protection class ensures safety in indoor installations, while the included 2-inch valve with 16 bar nominal pressure enhances its versatility and suitability for industrial use.
