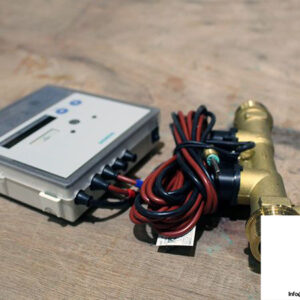

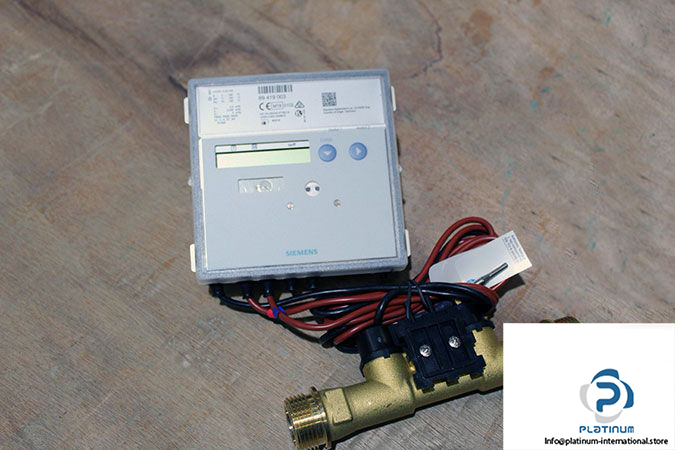

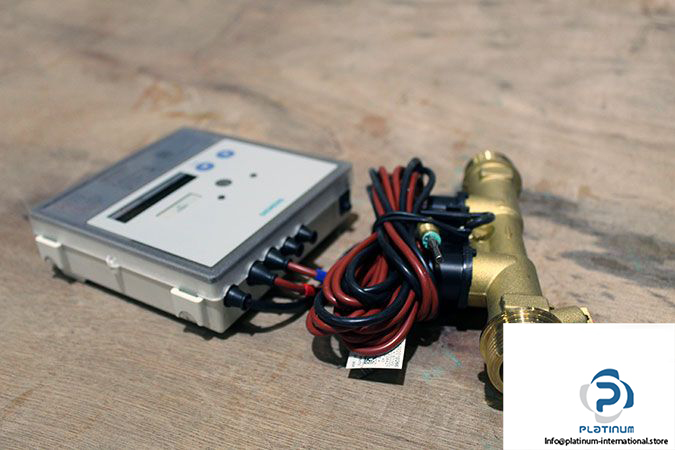

Siemens UH50-C40-00 Ultrasonic Meter
New
Available on request
225,00$
ULTRASONIC HEAT AND COOLING ENERGY METER
Siemens UH50-C40-00 delivers high-accuracy heat and cooling energy measurement with MID Class 2 compliance, 2.5 m³/h nominal flow rate, and durable PN25 pressure rating.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
SIEMENS UH50-C40-00 ULTRASONIC HEAT AND COOLING ENERGY METER
The Siemens UH50-C40-00 is a precision-engineered ultrasonic heat and cooling energy meter designed for accurate measurement of thermal energy consumption in heating and cooling systems. Built to meet EN 1434 standards and MID Class 2 accuracy, this meter offers high reliability, robust construction, and consistent performance in demanding applications.
Manufacturer: Siemens
Type: Ultrasonic Heat and Cooling Energy Meter
Model: UH50-C40-00

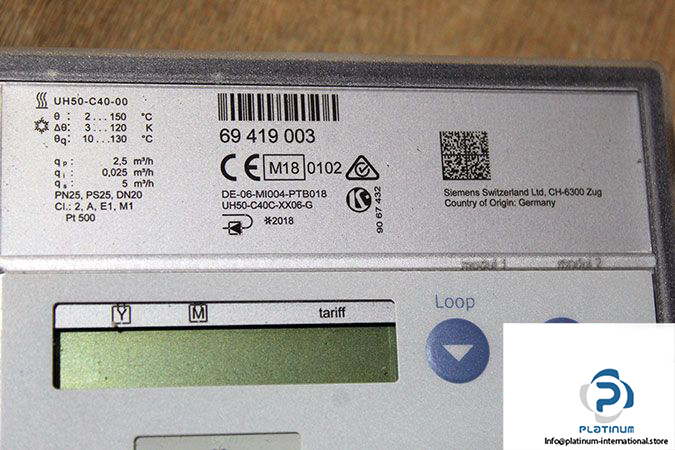

MRN: DE-06-MI004-PTB018-UH50-C40V-XX06-G
SN: 69 419 003
| Measurement Accuracy | MID Class 2, EN 1434 |
| Standard | EN 1434 |
| Voltage Supply | Without (see accessories) |
| PN Class | PN 25 |
| Due Date | 01.01 |
| Nominal Flow Rate | 2.5 m³/h |
| Mounting Length | 190 mm |
| Temperature Response Threshold | Heat: 0.2 K, Cold: 0.2 K |
| Measuring Range (Temperature) | Processor Unit: 0 / 180 °C, Flow Measuring Section: 5 / 50 °C |
| Sensing Element (Temperature) | Pt500 |
| Sensor | Direct short M10; 1 × 27.5 mm |
| Connecting Thread | G 1 |
| Pressure | PN25 |
| Sensor Length | 27.5 mm |
| Sensor Type | Pt500 |
