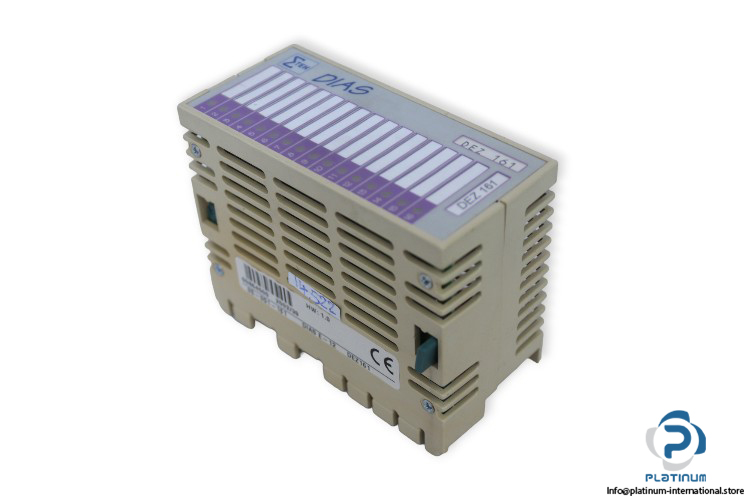

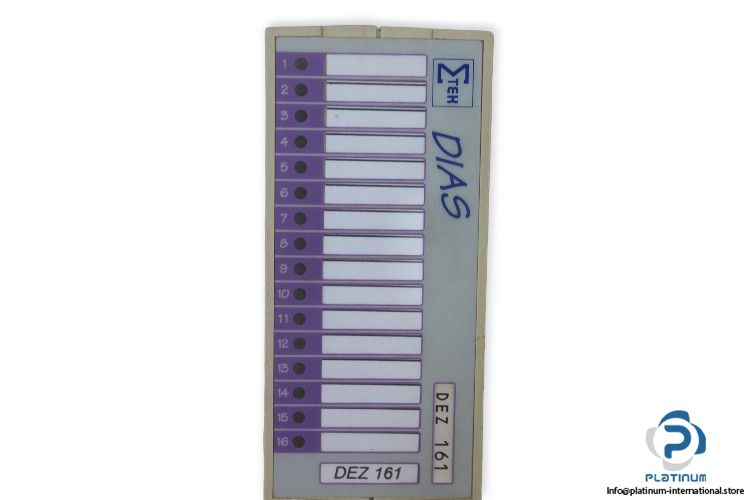

Sigmatek DEZ 161 Digital Input/Output Module
Manufacturer: SIGMATEK
Type: Digital Input/Output Module
Model: DEZ161

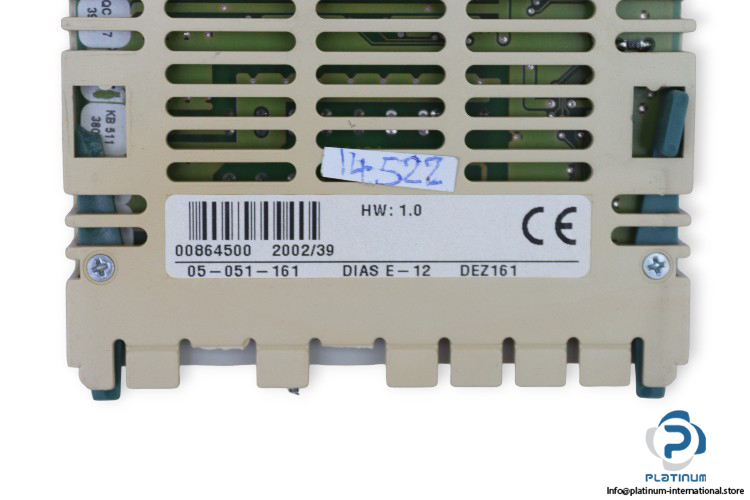

Art No.: 05051161
Range: DIAS
Supply Voltage: 18 … 30 V DC
Input Current Max.: 50 … 70 mA
No. of Digital Inputs (DI): 10
Inputs Ratings Max.: 24 … 30 V, 5 mA
No. of Relay Outputs: 6 (5 X Make Relays, 1 X Change-Over Relay)
Relay Outputs Ratings Max.: 30 V, 1 A
Temperature: 0 … 60 °C
Dimensions: 80 x 45 x 98 mm
