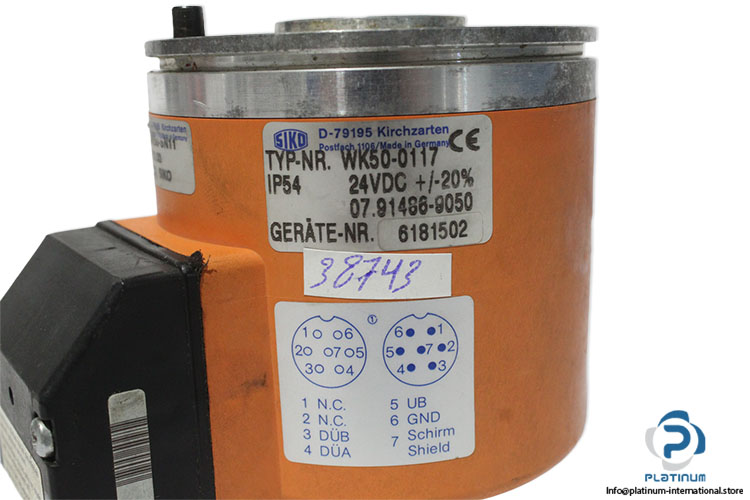

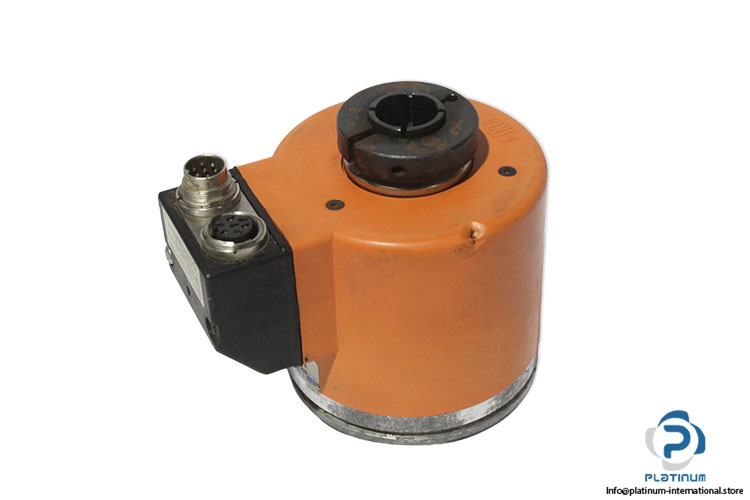

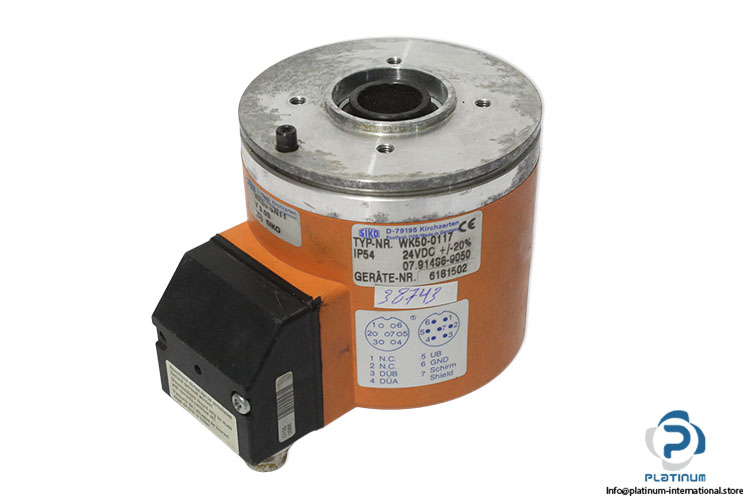

SIKO WK50-0117 Angle Encoder
Used
In stock1 unitReady to ship
Absolute Angle Encoder Siko absolute angle encoder with hollow shaft, 24 VDC supply, RS 485 SSI interface and up to 8192 pulses per revolution for precise industrial position measurement.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

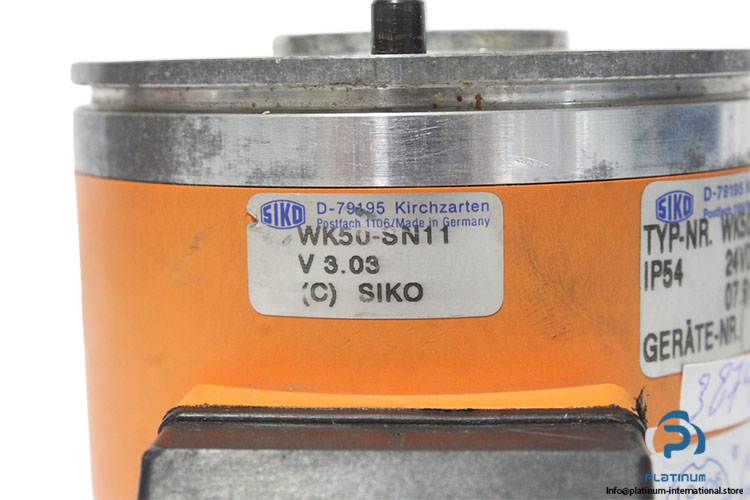

| Code | 07.91486-9050 (WK50-SN11 V 3.03) |
| Device Nr. | 6181502 |
| Supply Voltage | 24 VDC |
| Shaft Design | Hollow Shaft |
| Output Driver | RS 485 (SSI interface) |
| Maximum Speed | 3000 rpm (2000 rpm with IP65 rating) |
| Max. pulses/revolution | 8192 |
| Max. speed | 3000 rpm |
| Power consumption | <1.3 W |
| Permissible load/channel | max. 1 MHz |
| SSI clock rate min./max. | 100 kHz/500 kHz |
| Signal level high typ. | 3.8 V |
| Signal level low typ. | 1.3 V (20 mA) |
| Shaft material | browned steel, on double ball bearing |
| Housing material | aluminum |
| Protection degree | IP54 |

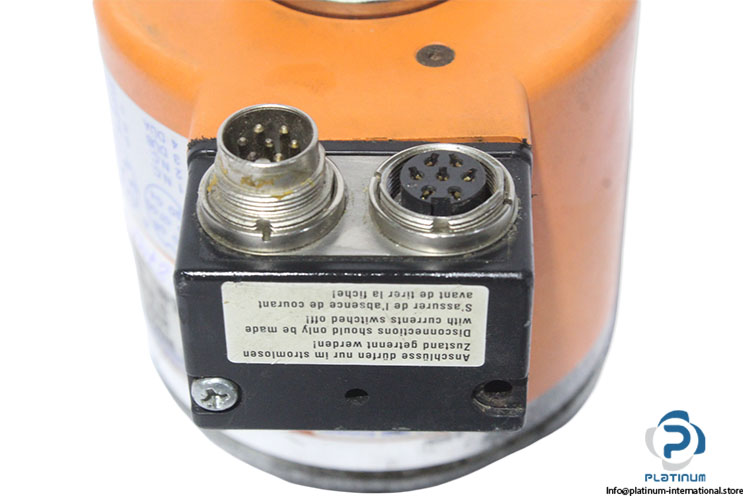

| Type of connection | with mating connectors (Male,female-7PINS) |
| Operating temperature | 0 ... +60 °C |
| Condition | Used |
| Stock key | JO-004 |
| SKU | 1098316 |
| Weight | 1,11 |
