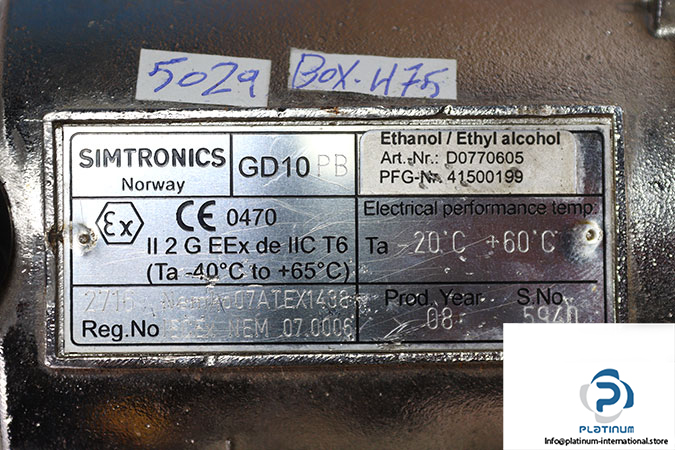

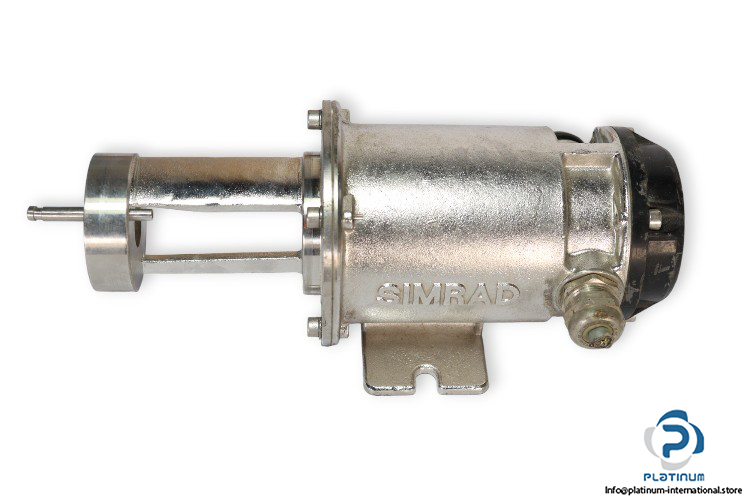

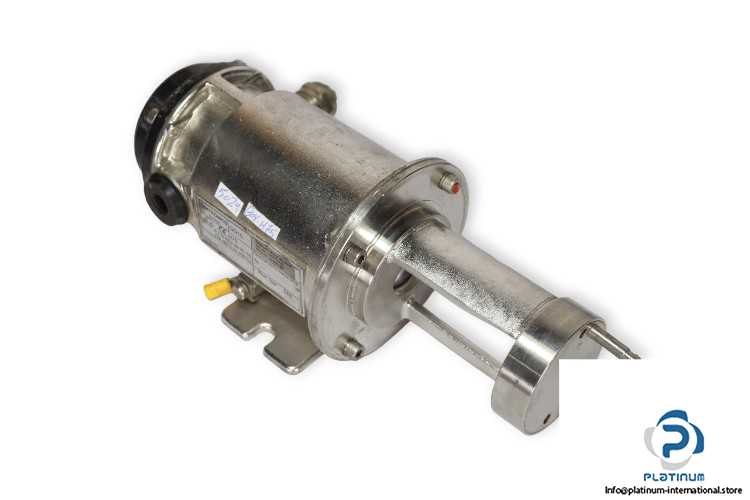

Simtronics GD10PB Infrared GAS Detector

Manufacturer: SIMTRONICS
Type: Infrared Gas Detector
Model: GD10PB

Power Supply: 24 V DC
Connection: 20 mm
Detection method: IR-absorption, dual-wavelength, dual path
IR-Source: Solid state IR source, 50Hz flash
Gases detected: Detector versions for several hydrocarbons as well as CO2
Self-test: Continuous
Calibration: Factory set, no field recalibration
Connector type: 3 wires (0.5mm² – 1.5mm²)
Protection category: IP66/IP67
Housing material: Stainless steel
Dimensions: 264L x 104W x 106H mm
Operating Temperature: -40 … 65°C
