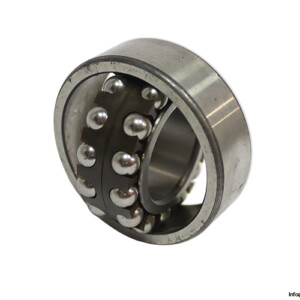

SKF 2207 KTN9/C3 Self-Aligning Ball Bearing
New
In stock3 unitsReady to ship
Self-Aligning Ball Bearing
SKF 2207 KTN9/C3 self-aligning ball bearing with tapered bore 1:12, C3 internal clearance, TN9 polyamide cage, and high-speed capability for industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
SKF 2207 KTN9/C3 Self-Aligning Ball Bearing
The SKF 2207 KTN9/C3 self-aligning ball bearing is designed to accommodate shaft misalignment while maintaining high rotational accuracy and reliable load performance in industrial applications.
Manufacturer: SKF
Type: Self-Aligning Ball Bearing
Model: 2207 KTN9/C3
To ensure optimal performance and system integration, this bearing can be combined with suitable Servo Motors and Sensors available at Platinum International Company for Industrial Technologies. Please contact us via ASK for assistance with any inquiries.
| Bore Diameter (d) | 35 mm |
| Outer Diameter (D) | 72 mm |
| Width (B) | 23 mm |
| Dynamic Load Rating (Cr) | 30,200 N |
| Static Load Rating (C0r) | 8,800 N |
| Limiting Speed | 18,000 rpm |
| Reference Speed | 12,000 rpm |
| Bore Type | K, Tapered 1:12 |
| Radial Internal Clearance | C3 |
| Cage Material | TN9, Glass fibre reinforced injection molded cage of polyamide 6,6 |
