SKF 22244 CC/W33 Spherical Roller Bearing

Manufacturer: SKF
Type: Spherical Roller Bearing
Model: 22244CC/W33

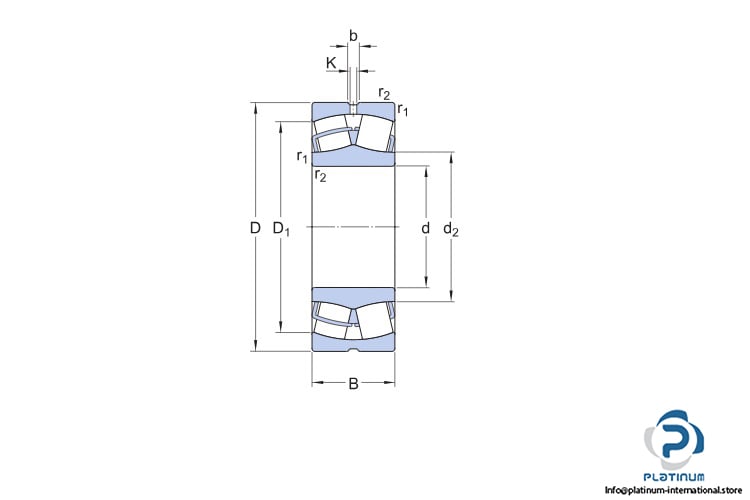

Dimensions
Bore Diameter d: 220 mm
Outer diameter D: 400 mm
Width B: 108 mm
Dynamic load rating: 1835 kN
Static load rating: 2360 kN
Fatigue load limit: 200 kN
Limiting speed: 2000 RPM
Reference speed: 1500 RPM
Cage material: Sheet metal
Lubrication: W33, Annular groove and three lubrication holes in outer ring
