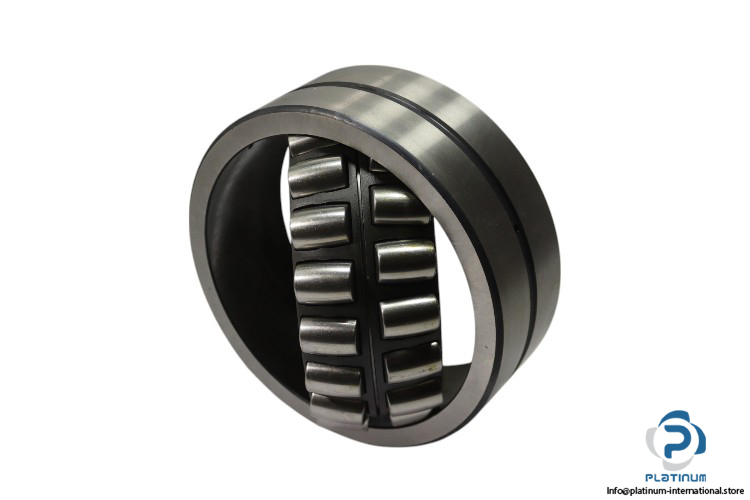

SKF 23224 CC/W33 Spherical Roller Bearing
New
Available on request
Spherical Roller Bearing
The SKF 23224 CC/W33 is a high-performance spherical roller bearing with a 120 mm bore, 215 mm outer diameter, and sheet metal cage. Its W33 lubrication system ensures long-term durability under high radial and axial loads.120mm23224bearingbearingsboreCageCC/W33Heavy-DutyHighIndustrialLoadlubricationMetalRollersheetSKFSphericalW33
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
SKF 23224 CC/W33 Spherical Roller Bearing
The SKF 23224 CC/W33 is a heavy-duty spherical roller bearing designed to accommodate high radial loads and moderate axial loads in both directions. It features a durable sheet metal cage and a W33 lubrication design with an annular groove and three lubrication holes in the outer ring for reliable operation under demanding industrial conditions.
Manufacturer: SKF
Type: Spherical Roller Bearing
Model: 23224 CC/W33
| Bore Diameter (d) | 120 mm |
| Outer Diameter (D) | 215 mm |
| Width (B) | 76 mm |
| Dynamic Load Rating (Cr) | 732,000 N |
| Static Load Rating (C0r) | 930,000 N |
| Limiting Speed | 2800 rpm |
| Reference Speed | 2000 rpm |
| Lubrication | W33 - Annular groove and three lubrication holes in outer ring |
| Cage Type | Sheet Metal |
