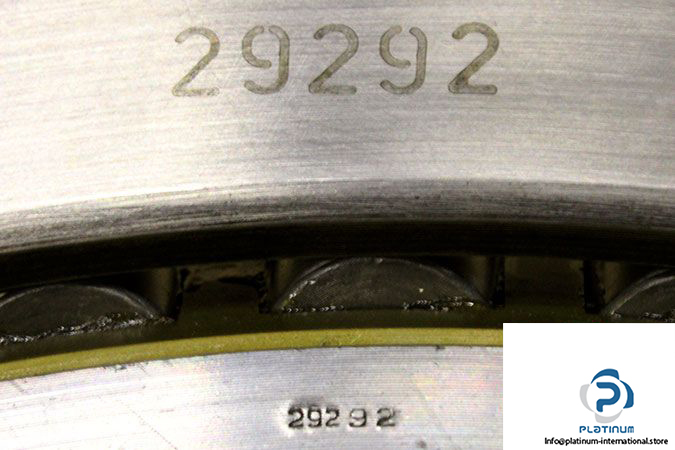

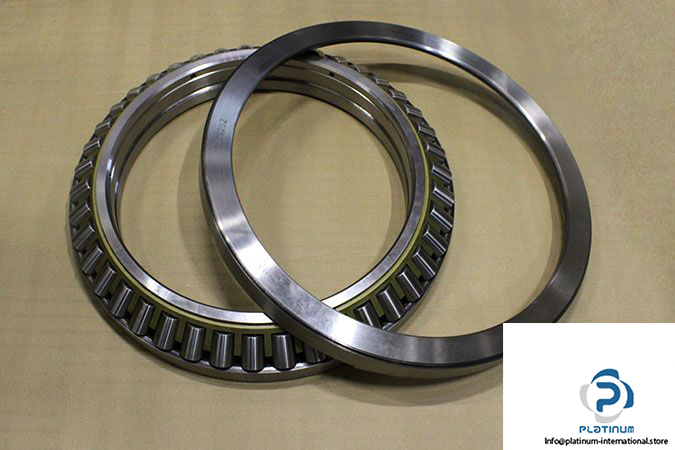

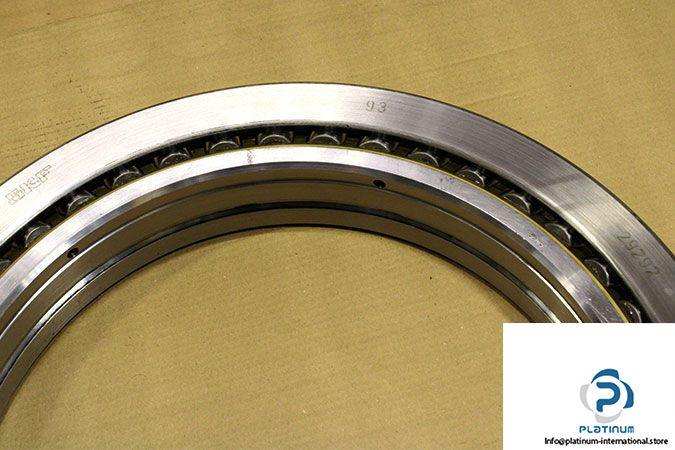

SKF 29292 Spherical Roller Thrust Bearing

Manufacturer: SKF

Type: Spherical Roller Thrust Bearing

Model: 29292

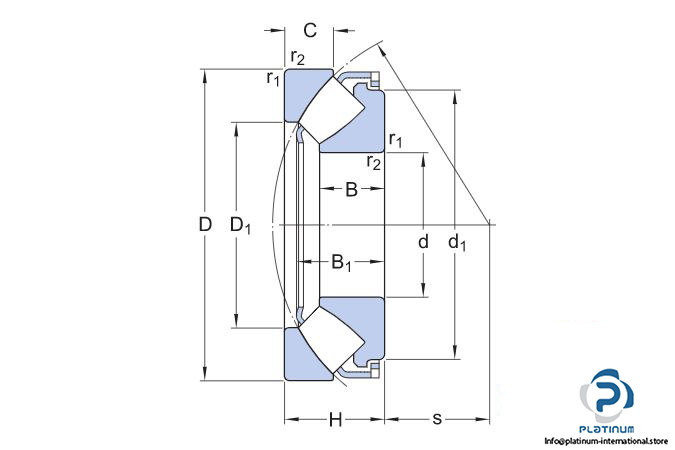

Dimensions:

Bore Diameter d: 460 mm

Outer diameter D: 620 mm

Width H: 95 mm

Minimum chamfer dimension r_{1,2 min}: 5 mm

Basic load ratings:

Dynamic C: 2070 kN

Static C₀: 10600 KN

Fatigue load limit P_u: 865 kN

Reference speed: 600 rpm

Limiting speed: 950 rpm

Cage: Machined Brass Cage

Weight: 82 kg
