SKF 30310 Single ROW Tapered Roller Bearing
New
In stock7 unitsReady to ship
Single Row Tapered Roller Bearing
The SKF 30310 Tapered Roller Bearing features a 50 mm bore diameter, 110 mm outer diameter, 154 kN dynamic load rating, and a contact angle of 12.953°, offering high-performance for demanding industrial applications.1“1012.953°1543031050ANDAngleAxialbearingboreContactdiameterDynamichigh-performancekNLoadmmOuterradialRatingRollerRowSingleSKFtapered
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

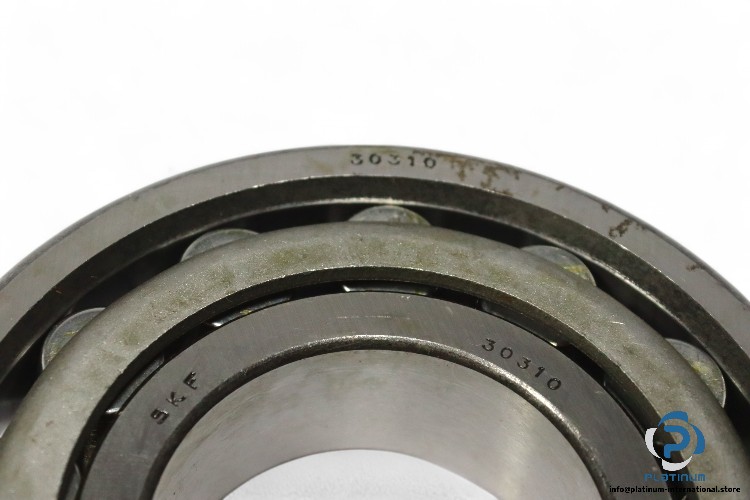

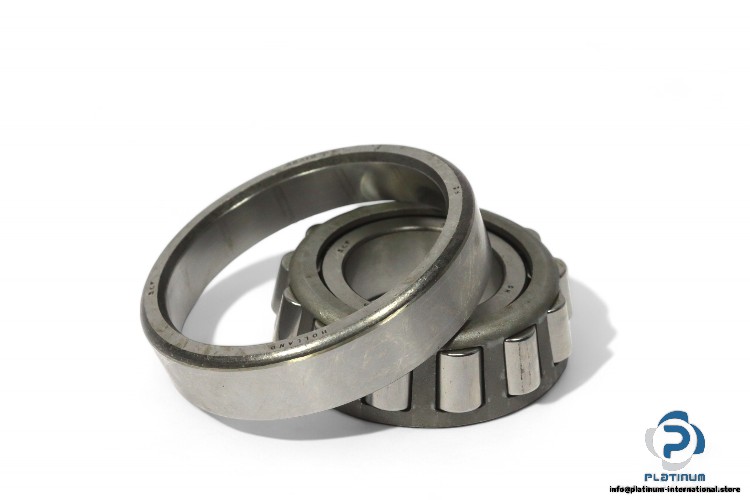

SKF 30310 Single Row Tapered Roller Bearing
The SKF 30310 Single Row Tapered Roller Bearing is designed for handling high radial and axial loads in both directions. With a contact angle of 12.953° and excellent dynamic and static load ratings, it is perfect for applications requiring high performance and reliability.
Manufacturer: SKF
Type: SINGLE ROW TAPERED ROLLER BEARING
Model: 30310
This SKF tapered roller bearing is ideal for high-speed and high-load applications, offering superior performance and long service life even in demanding conditions.
| Bore Diameter (d) | 50 mm |
| Outer Diameter (D) | 110 mm |
| Total Width (T) | 29.25 mm |
| Width of Outer Ring | 23 mm |
| Width of Inner Ring | 27 mm |
| Contact Angle | 12.953° |
| Dynamic Load Rating | 154 kN |
| Static Load Rating | 140 kN |
| Reference Speed | 5300 r/min |
| Limiting Speed | 6300 r/min |
| Fatigue Load Limit | 16.6 kN |
