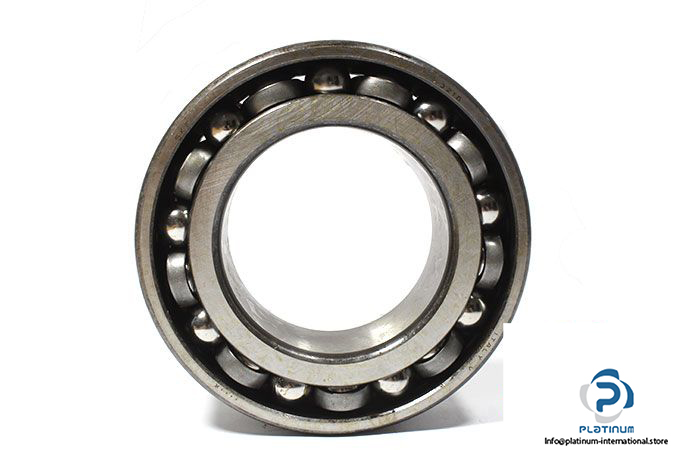

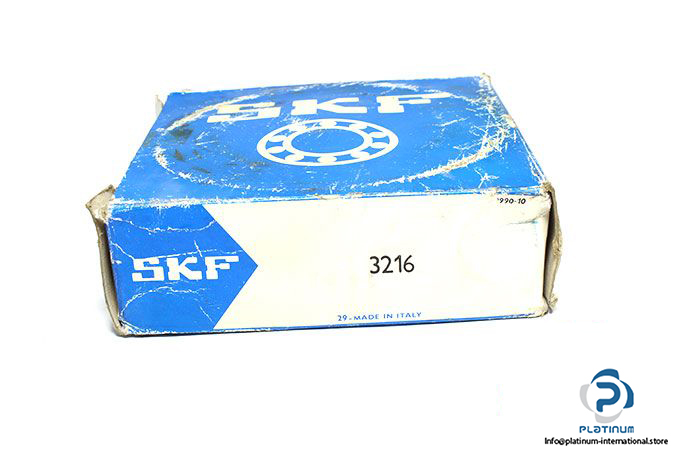

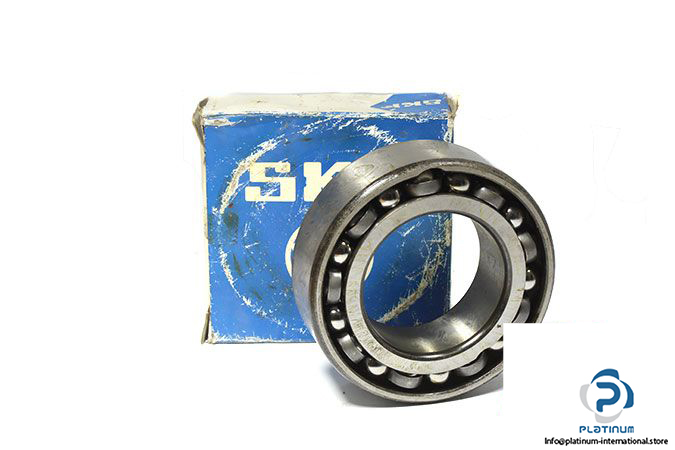

SKF 3216 Double ROW Angular Contact Ball Bearing ‎

Manufacturer: ‎SKF

Type: Double row Angular contact ball bearing

Part No: 3216

Bore Diameter: 80 mm

Outer diameter: 140 mm

Width: 44.4 mm

Chamfer r_min: 2 mm

Contact Angel: 30°

Basic load ratings:

Dynamic C_r: 106 kN

Static C_0r: 95 kN

Fatigue limit load P_ur: 3.9 kN

Limiting speed: 4300 rpm

Reference speed: 5000 rpm

Cage design: Stamped steel cage, ball centred (double row bearing)

Weight: 2.6 kg
