SKF 3312 A Double ROW Angular Contact Ball Bearing
Used
In stock1 unitReady to ship
Double Row Angular Contact Ball Bearing
The SKF 3312 A bearing features a 60 mm bore, 30° contact angle, and sheet metal cage, delivering high performance and load capacity for precision industrial operations.130mm331260mmaAngularBallbearingboreCageContactdiameterDoubleHighIndustrialLoadMetalOuterRowsheetSKF
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

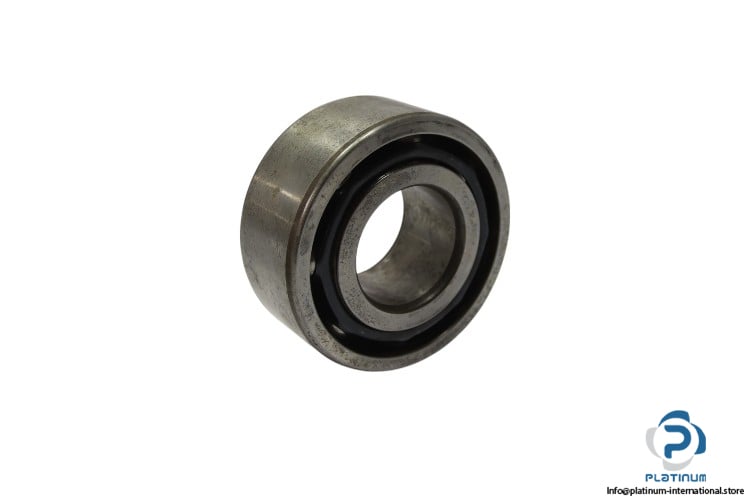

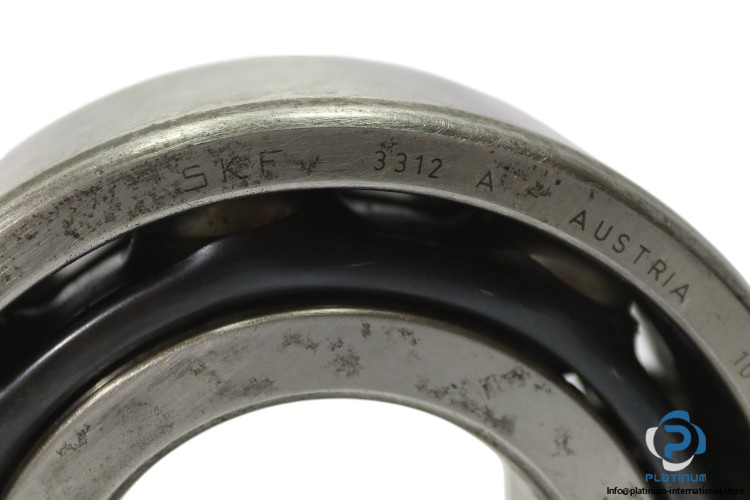

SKF 3312 A Double Row Angular Contact Ball Bearing
The SKF 3312 A is a precision-engineered double row angular contact ball bearing designed for high radial and axial load capacity in both directions. With a 30° contact angle, it offers excellent rigidity and reliability in demanding applications. Its sheet metal cage ensures efficient performance at high speeds.
Manufacturer: SKF
Type: Double Row Angular Contact Ball Bearing
Model: 3312 A
| Bore Diameter (d) | 60 mm |
| Outer Diameter (D) | 130 mm |
| Width (B) | 54 mm |
| Contact Angle | 30° |
| Dynamic Load Rating (Cr) | 127000 N |
| Static Load Rating (C‚r) | 95000 N |
| Limiting Speed | 5000 rpm |
| Reference Speed | 5600 rpm |
| Cage Type | Sheet Metal |
