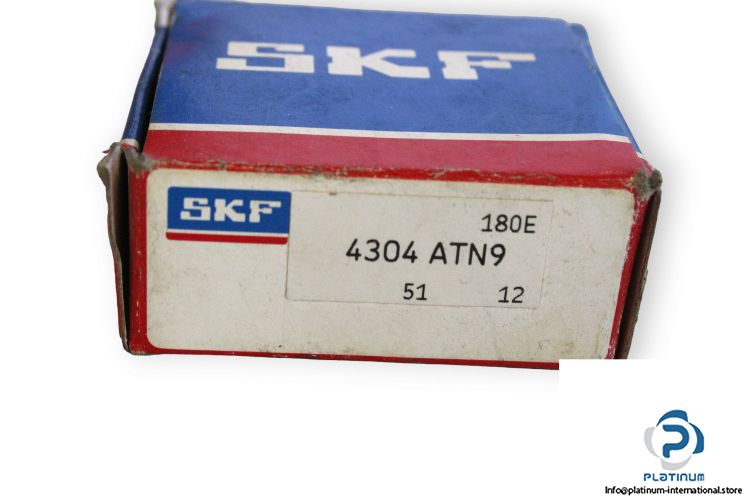

SKF 4304 ATN9 Double ROW Deep Groove Ball Bearing
Manufacturer: SKF
Type: Double Row Deep Groove Ball Bearing
Model: 4304ATN9
Dimensions
Bore Diameter d: 20 mm
Outer diameter D: 52 mm
Width B: 21 mm
Chamfer dimension r1,2 min: 1.1 mm
Basic load ratings:
Dynamic C: 23.4 kN
Static C0: 16 kN
Fatigue load limit Pu: 0.68 KN
Reference speed: 22000 rpm
Limiting speed: 12000 rpm
Cage: Glass fibre reinforced PA66 cage, rolling element centred
