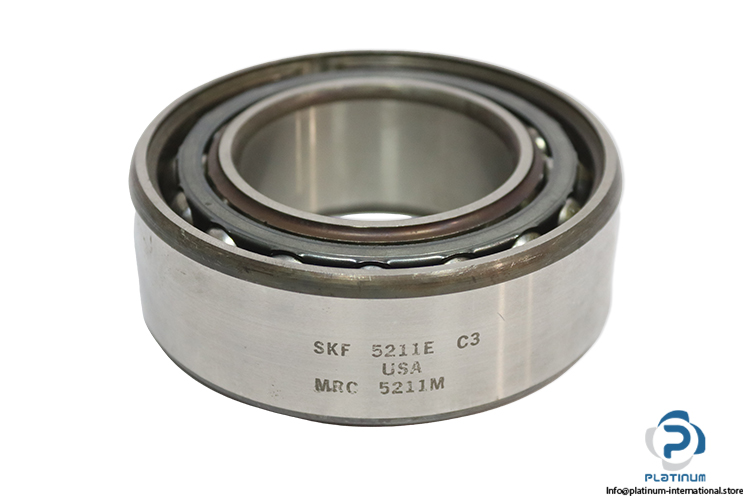

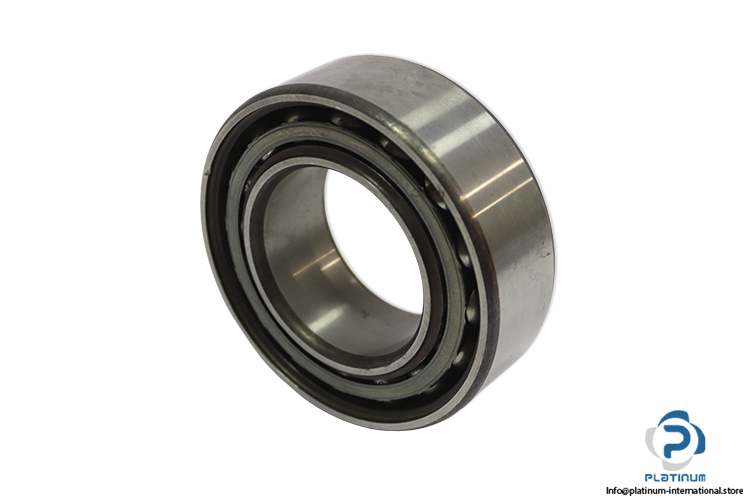

SKF 5211 EC3 Angular Contact Ball Bearing
SKF 5211E C3 double row angular contact ball bearing with 55 mm bore, C3 internal clearance, high load capacity, and steel cage, designed for combined radial and axial load applications.
SKF 5211E C3 Double Row Angular Contact Ball Bearing
The SKF 5211E C3 is a double row angular contact ball bearing designed to accommodate combined radial and axial loads while providing high operational reliability and stability in industrial applications.
Manufacturer: SKF
Type: Double Row Angular Contact Ball Bearing
Model: 5211E C3 (MRC 5211M)
Additional Recommendation:
For optimal system integration, this bearing can be combined with precision shafts, bearing housings, couplings, electric drive solutions such as Servo Motors, and condition monitoring Sensors, all available from Platinum International Company for Industrial Technologies.
Please contact us via Ask for assistance with any inquiries.
| Bore Diameter | 55 mm |
| Outer Diameter | 100 mm |
| Width | 33.4 mm |
| Contact Angle | 30° |
| Dynamic Load Capacity | 66 kN (66,000 N) |
| Static Load Capacity | 76.5 kN (76,500 N) |
| Maximum Speed (Oil Lubrication) | 5,600 rpm |
| Maximum Speed (Grease Lubrication) | 4,300 rpm |
| Universal Matching Bearing | No |
| Axial Internal Clearance | C3 |
| Suffix | E “ Internal Design |
| Material | Steel Rings And Balls With Steel Cage |
