SKF 53215 Thrust Ball Bearing

Manufacturer: SKF

Type: Single direction thrust ball bearing with sphered housing washer

Model: 53215

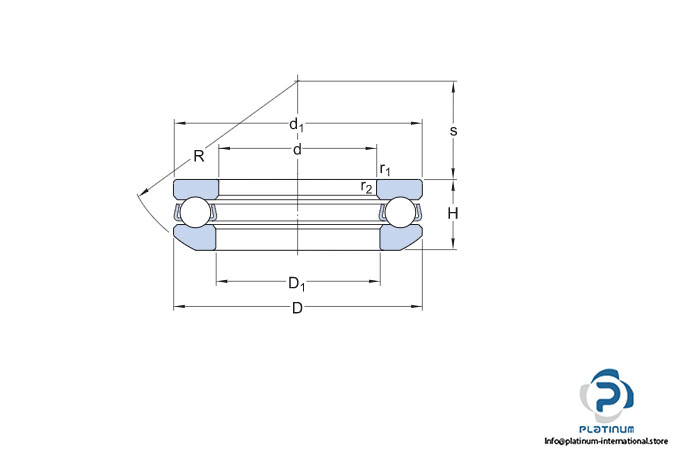

Dimensions:

Bore diameter d: 75 mm

Outer diameter D: 110 mm

Height H: 28.3 mm

Outside diameter shaft washer d₁: 110 mm

Inner diameter housing washer D₁: 77 mm

Minimum chamfer dimension r _1,2: 1 mm

Basic load ratings:

Dynamic C: 63700 N

Static C₀: 170000 N

Fatigue load rating P_u: 6200 N

Reference speed: 2400 rpm

Limiting speed: 3400 rpm

Cage: Sheet Metal

Housing washer type: Sphered
