SKF 6203-Z Deep Groove Ball Bearing
New
In stock1 unitReady to ship
Deep Groove Ball Bearing
The SKF 6203 Z Deep Groove Ball Bearing features a 17 mm bore diameter, 40 mm outer diameter, and a shield on one side for effective sealing, providing high performance in industrial applications.0.2174062039.95BallbearingboreCageDeepdiameterDynamicfatigueGrooveIndustrialkNLimitLoadMetalmmOuterRatingsheetShieldSKFWithZ
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

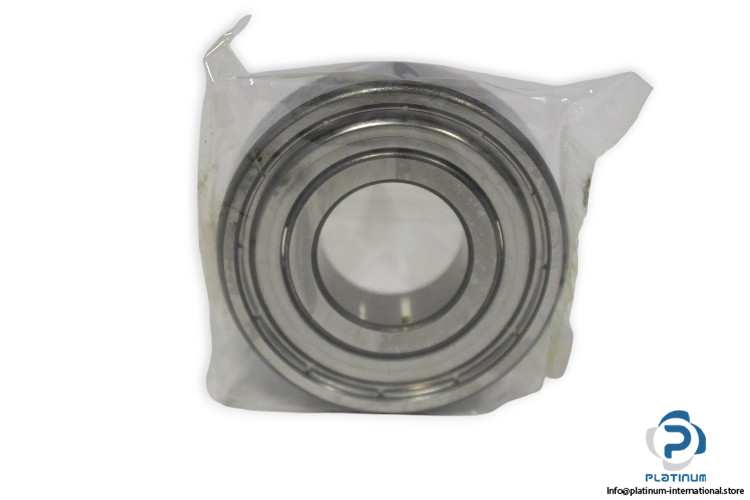

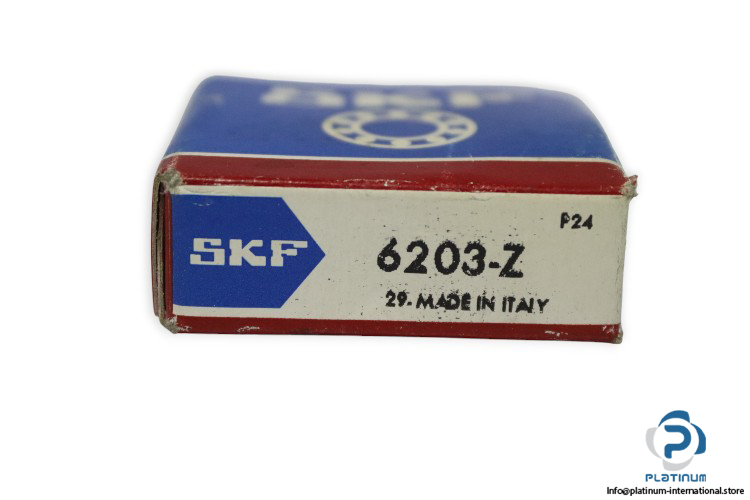

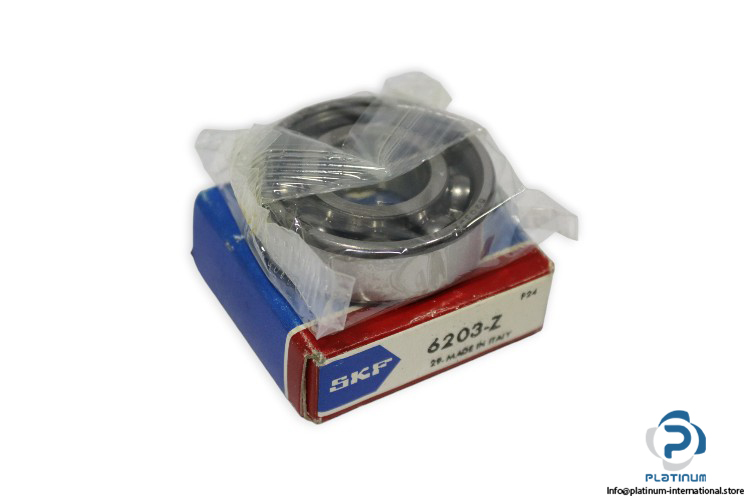

SKF 6203 Z Deep Groove Ball Bearing
The SKF 6203 Z Deep Groove Ball Bearing is designed to provide smooth and reliable performance in applications requiring high precision and durability. Featuring a shield on one side, this bearing offers effective sealing for long-lasting operation in a variety of industrial environments.
Manufacturer: SKF
Type: DEEP GROOVE BALL BEARING
Model: 6203 Z
This SKF deep groove ball bearing is designed to provide high load capacity and reduced friction for smooth operation in various industrial and mechanical systems.
| Bore Diameter (d) | 17 mm |
| Outer Diameter (D) | 40 mm |
| Inner Ring Width (B) | 12 mm |
| Basic Dynamic Load Rating | 9.95 kN |
| Basic Static Load Rating | 4.75 kN |
| Fatigue Load Limit | 0.2 kN |
| Reference Speed | 38000 r/min |
| Limiting Speed | 24000 r/min |
| Sealing | Z, Shield on one side |
| Cage Material | Sheet metal |
