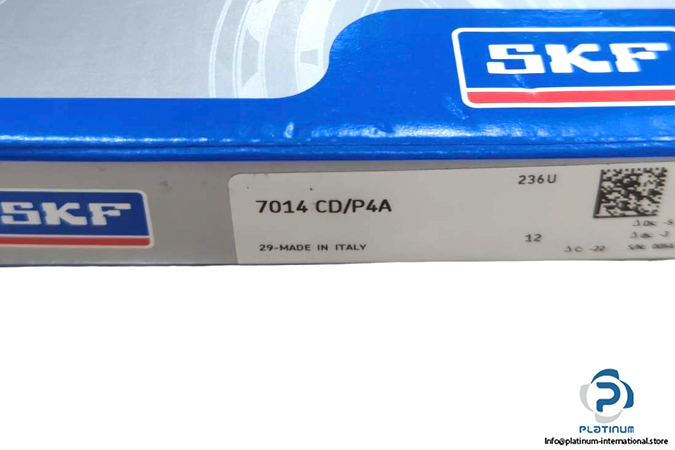

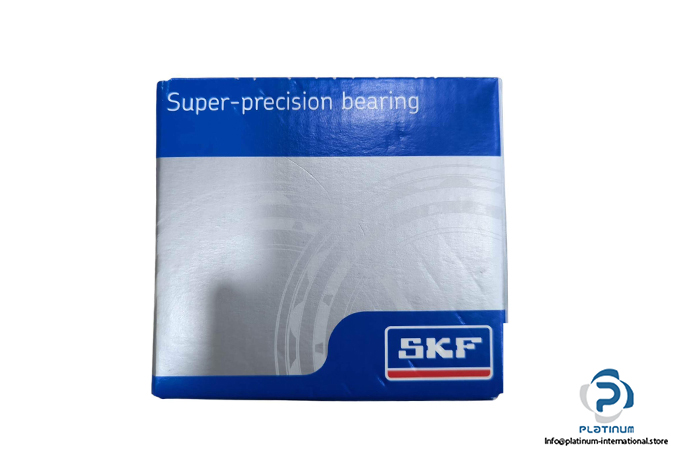

SKF 7014 CD/P4A Angular Contact Ball Bearing

Manufacturer: SKF

Type: Super-precision, high-capacity, single row angular contact ball bearing

Model: 7014CD/P4A



Dimensions:

Bore Diameter d: 70 mm

Outer diameter D: 110 mm

Width: 20 mm

Contact angle: 15 °

Dynamic load rating: 52 kN

Static load rating: 45.5 kN

Fatigue load limit: 1.93 kN

Attainable speed for grease lubrication: 12000 RPM

Attainable speed for oil-air lubrication: 19000 RPM

Tolerance class: P4A
