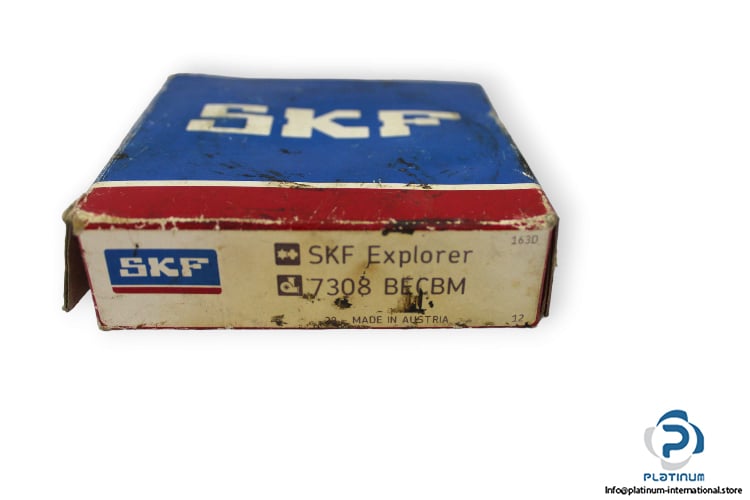

SKF 7308 Becbm Angular Contact Ball Bearing

Manufacturer: SKF

Type: Angular Contact Ball Bearing

Model: 7308BECBM



Dimensions

Bore Diameter d: 40 mm

Outer diameter D: 90 mm

Width B: 23 mm

Contact angle α: 40 °

Basic load ratings:

Dynamic C_r: 50000 N

Static C_0r: 32500 N

Limiting speed: 12000 rpm

Reference speed: 9500 rpm

Matched condition (axial clearance/ preload): Axial clearance CB

Cage: Machined brass
