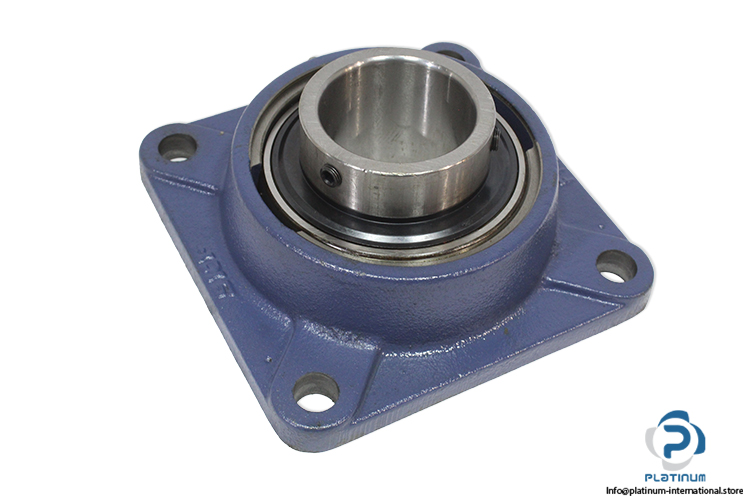

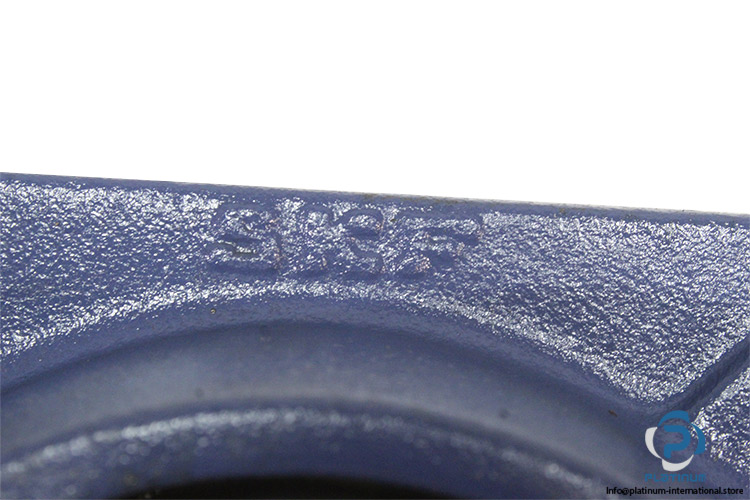

SKF FY 65 TF Square Flanged Ball Bearing Unit
New
In stock3 unitsReady to ship
Flanged Bearing Unit SKF FY65TF Square Flanged Ball Bearing Unit features a 65 mm shaft diameter, cast iron housing, and high load capacity with 57.2 kN dynamic rating, designed for reliable industrial performance.
2132FbearingbearingsCastFlangeflangedFY513MFY65TFHighHousingIndustrialIronLoadmountedSKFSquareUnitYAR
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

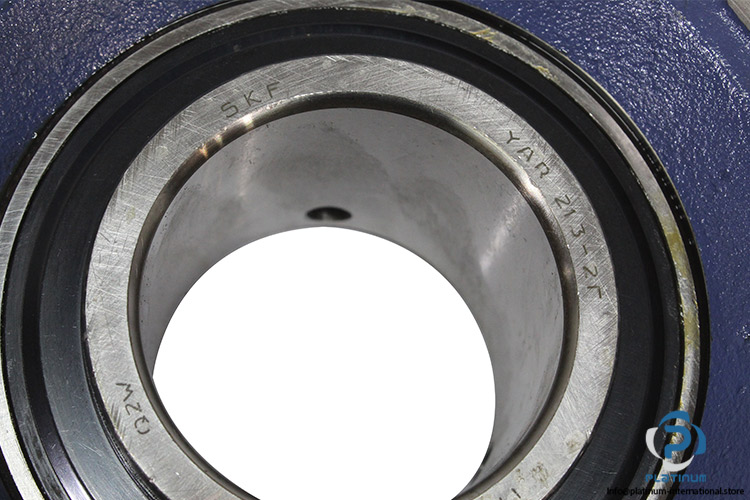

| Bearing No. | YAR 213-2F |

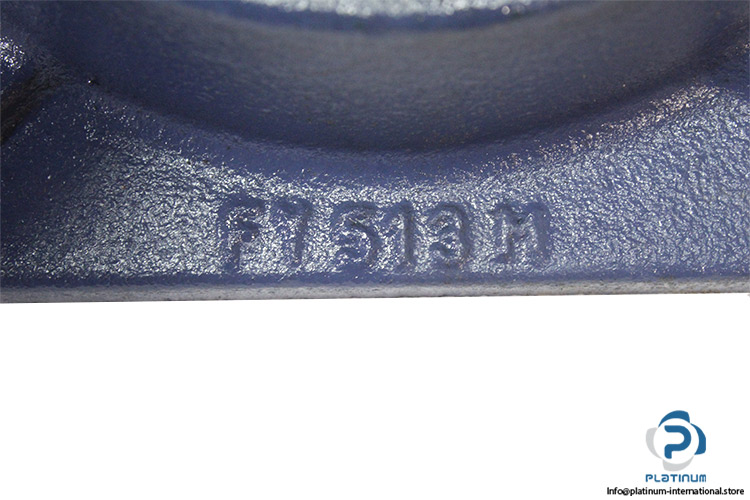

| Housing No. | FY513M |
| Attachment bolt diameter | 16 mm |
| Shaft diameter | 65 mm |
| Housing overall width | 52.5 mm |
| Width total | 76.9 mm |
| Centre distance between bolt holes | 149.5 mm |
| Bearing width, total | 68.3 mm |
| Basic dynamic load rating | 57.2 kN |
| Basic static load rating | 40 kN |
| Fatigue load limit | 1.7 kN |
| Limiting speed | 3000 r/min |
| Material, housing | Cast iron |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097090 |
| Weight | 4,9 |
