SKF HMV 32E Hydraulic NUT
In stock1 unitReady to ship
Hydraulic Nut
SKF HMV 32E hydraulic nut for bearing mounting and dismounting, featuring up to 150 MPa working pressure, M160×3 thread, and precision piston design for controlled axial force application.SKU
1093040Category
Hydraulic Actuators
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

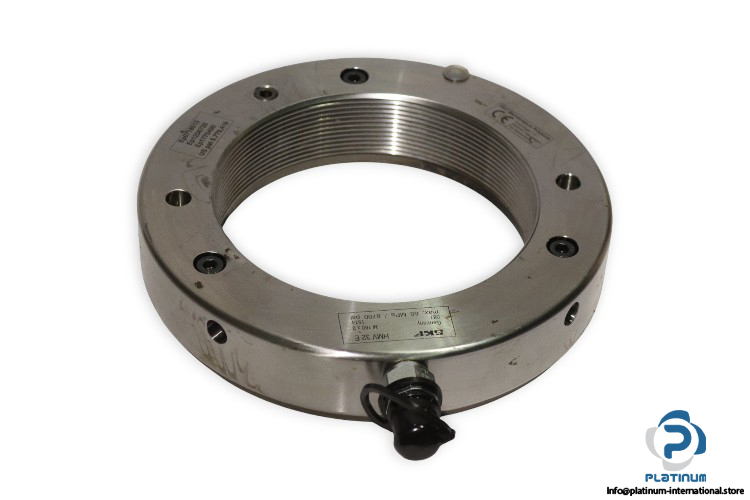

SKF HMV 32E Hydraulic Nut
The SKF HMV 32E is a hydraulic nut designed for safe and efficient mounting and dismounting of bearings. It enables accurate application of axial force using hydraulic pressure, reducing installation time and minimizing the risk of damage to bearings and shafts.
Manufacturer: SKF
Type: Hydraulic Nut
Model: HMV 32E
Series: HMVC
Code: 087/1514
| Application | Mounting Or Dismounting Of Bearings |
| Maximum Pressure | 8700 PSI |
| Working Pressure | Max. 150 MPa |
| Inside Diameter | 160.5 mm |
| Outside Diameter | 232 mm |
| Piston Area | 8,600 mm² |
| Piston Displacement | 6 mm |
| Piston Outer Diameter | 224 mm |
| Piston Width | 7 mm |
| Overall Width | 40 mm |
| Thread | M 160 × 3 |
