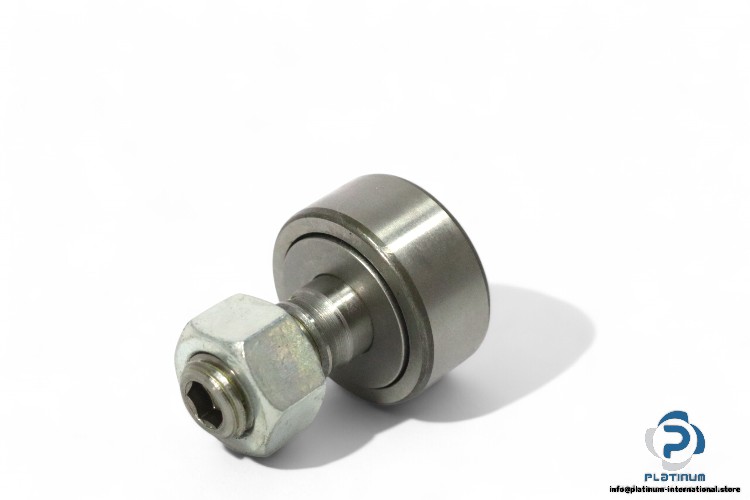

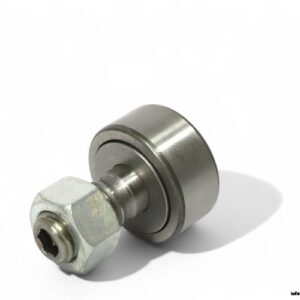

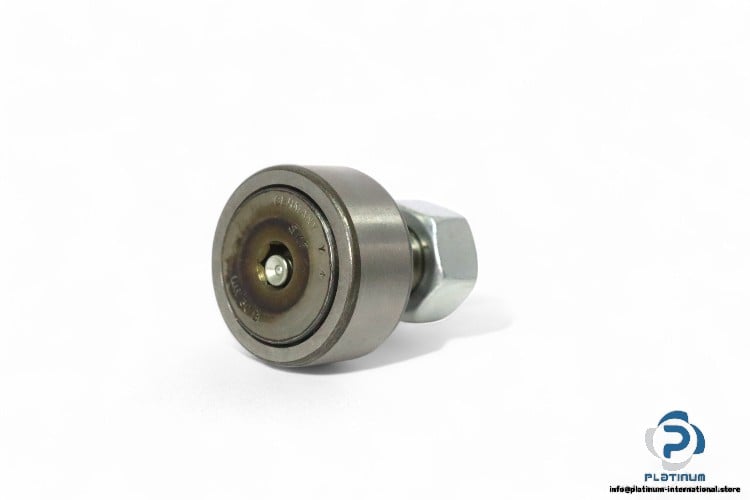

SKF KR 30 B Stud Type Track Roller

Manufacturer: SKF
Type: STUD TYPE TRACK ROLLER
Model: KR 30-B

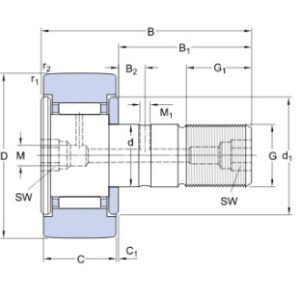

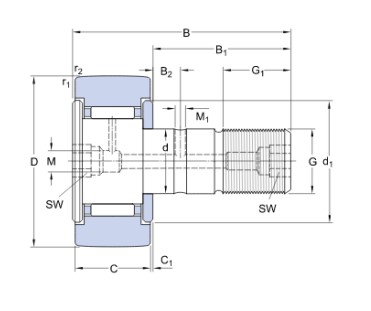

Dimensions
Functional outside diameter: 30 mm
Stud diameter: 12 mm
Total length: 40 mm
Width outer ring: 14 mm
B1: 25 mm
G1: 13 mm
Thread stud G: M12x1.5
Basic load ratings:
Dynamic C: 6.44 kN
Static C₀: 8 kN
Fatigue load limit: 0.88 kN
Limiting speed: 4800 rpm
Maximum dynamic radial loads: 7.8 kN
Maximum static radial loads: 11.2 kN
Design: B, KR design cam followers with a crowned profile of the outer ring running surface and a recessed hexagon on both ends of the stud
