SKF NJ 220 ECJ/C3 Cylindrical Roller Bearing
New
In stock1 unitReady to ship
Cylindrical Roller Bearing
The SKF NJ 220 ECJ/C3 is a robust cylindrical roller bearing with 100 mm bore, C3 clearance, and a sheet metal cage, offering high load capacity and excellent speed performance for industrial applications.100mm220bearingboreC3CageClearanceCylindricalECJ/C3High-SpeedIndustrialMetalNJNJ220ECJC3.RollersheetSKF
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

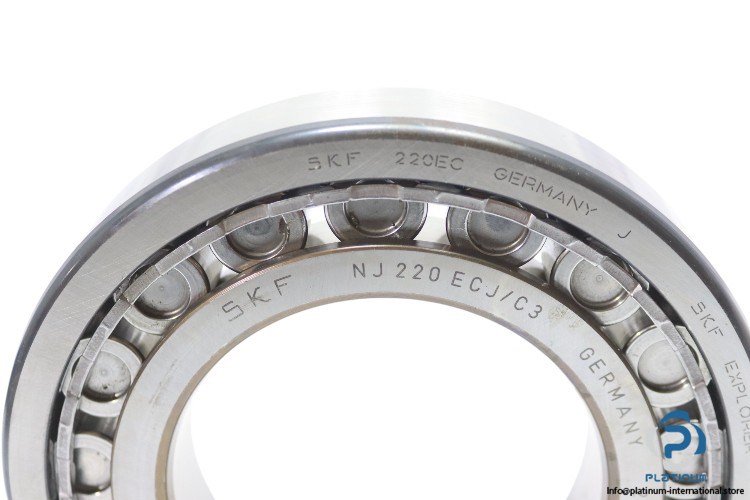

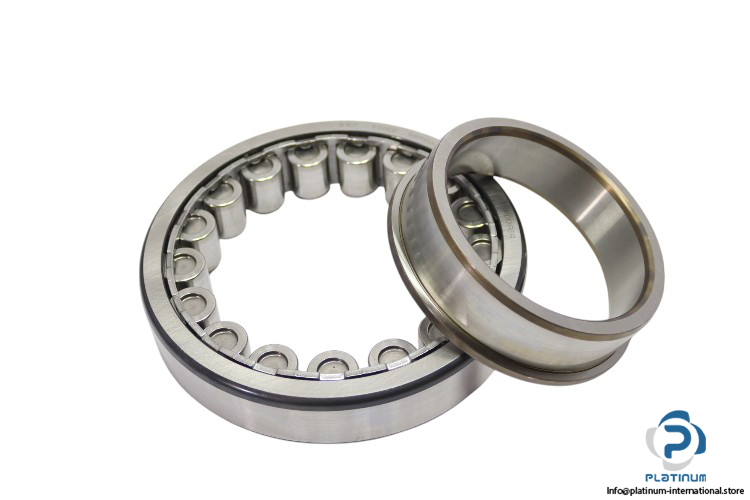

SKF NJ 220 ECJ/C3 Cylindrical Roller Bearing
The SKF NJ 220 ECJ/C3 is a high-capacity cylindrical roller bearing designed for demanding industrial environments. Featuring a C3 radial internal clearance and sheet metal cage, it provides excellent load-carrying capability, reduced friction, and superior reliability under high-speed operating conditions.
Manufacturer: SKF
Type: Cylindrical Roller Bearing
Model: NJ 220 ECJ/C3
| Bore Diameter (d) | 100 mm |
| Outer Diameter (D) | 180 mm |
| Width | 34 mm |
| Dynamic Load Rating (Cr) | 285 kN |
| Static Load Rating (C0r) | 305 kN |
| Reference Speed | 4000 rpm |
| Limiting Speed | 4500 rpm |
| Cage Type | Sheet Metal |
| Radial Internal Clearance | C3 |
