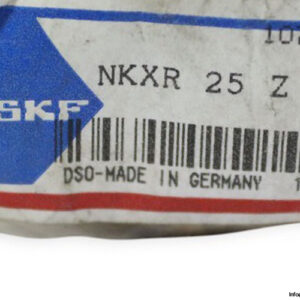

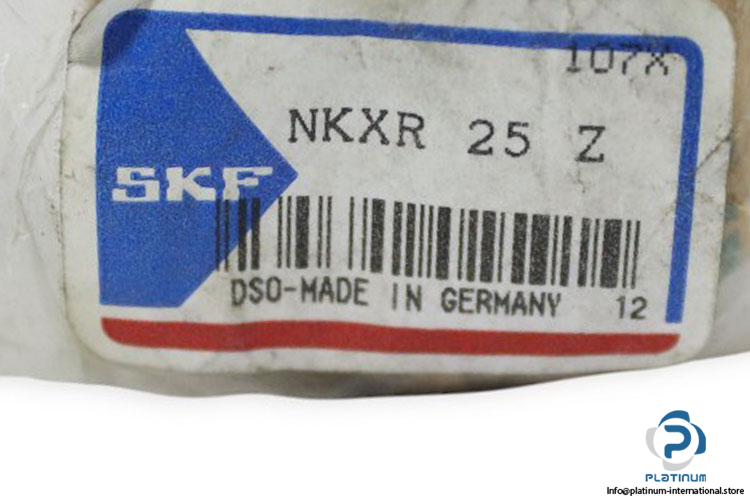

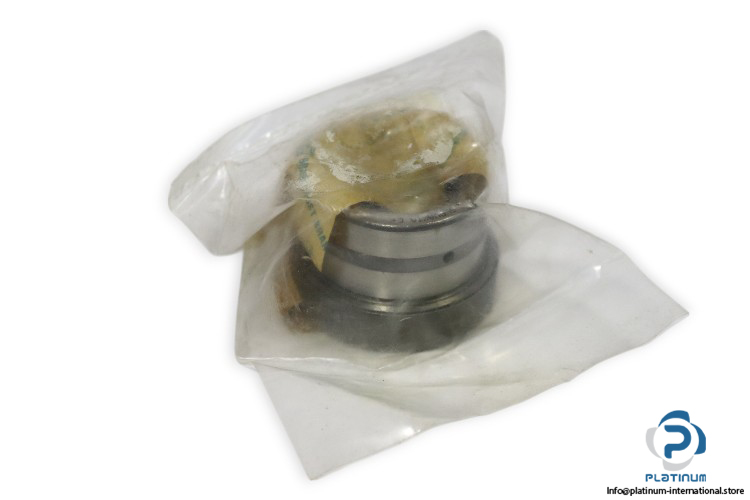

SKF Nkxr 25 Z Combined Needle Roller / Cylindrical Roller Thrust Bearing
Combined Needle Roller / Cylindrical Roller Thrust Bearing
The SKF NKXR 25 Z Combined Needle Roller / Cylindrical Roller Thrust Bearing offers high load capacity with precise performance for radial and axial loads. With a 25 mm bore diameter and 37 mm outer diameter, it provides reliable operation in demanding applications.SKF NKXR 25 Z Combined Needle Roller / Cylindrical Roller Thrust Bearing
The SKF NKXR 25 Z Combined Needle Roller / Cylindrical Roller Thrust Bearing is a high-performance bearing solution designed to handle both radial and axial loads. Featuring a robust design with a stamped steel cover, this bearing provides exceptional stability and reliability for industrial applications.
Manufacturer: SKF
Type: Combined Needle Roller / Cylindrical Roller Thrust Bearing
Model: NKXR 25 Z
Basic Load Ratings:
Speed Ratings:
Special Features:
This combined needle roller and cylindrical roller thrust bearing is ideal for applications requiring high load capacity and precise alignment, offering exceptional durability and performance.
| Bore Diameter (Fw) | 25 mm |
| Outer Diameter (D) | 37 mm |
| Height (C) | 30 mm |
| Radial Dynamic Load Rating (Cr) | 19 kN |
| Radial Static Load Rating (C0r) | 32.5 kN |
| Radial Fatigue Load Limit | 4 kN |
| Axial Dynamic Load Rating (Ca) | 25 kN |
| Axial Static Load Rating (C0a) | 69.5 kN |
| Axial Fatigue Load Limit | 6.8 kN |
| Limiting Speed | 6300 rpm |
| Reference Speed | 3200 rpm |
| Thrust Part | Stamped steel cover without lubrication holes |
