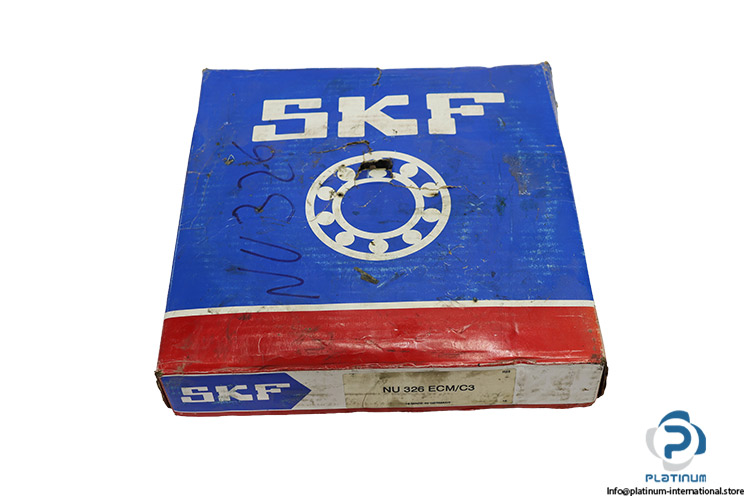

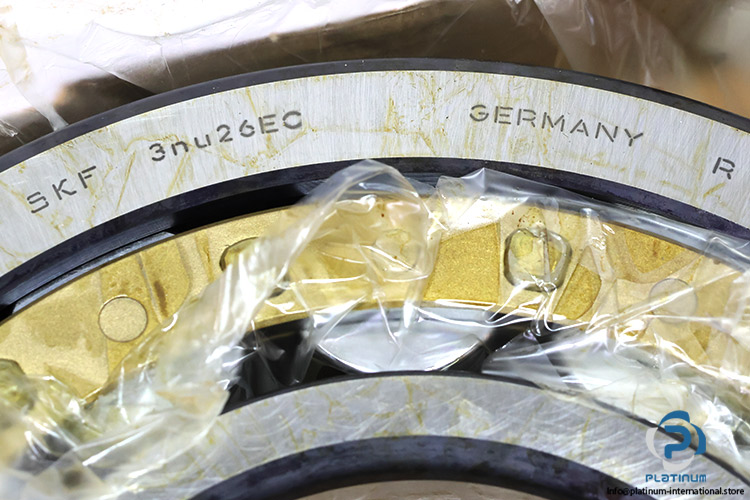

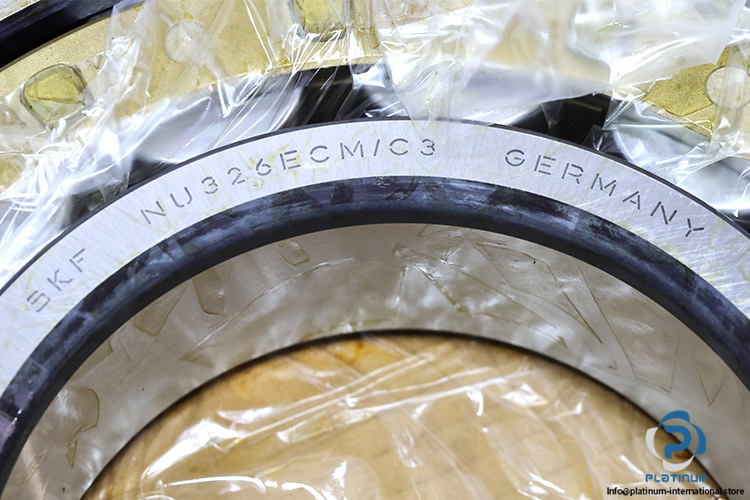

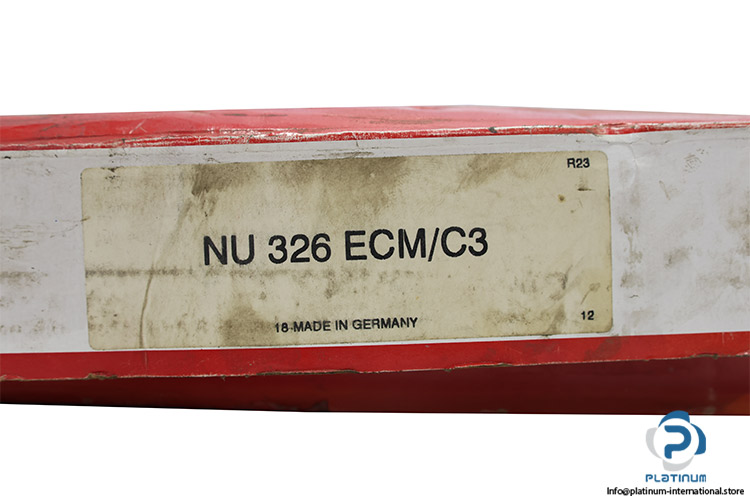

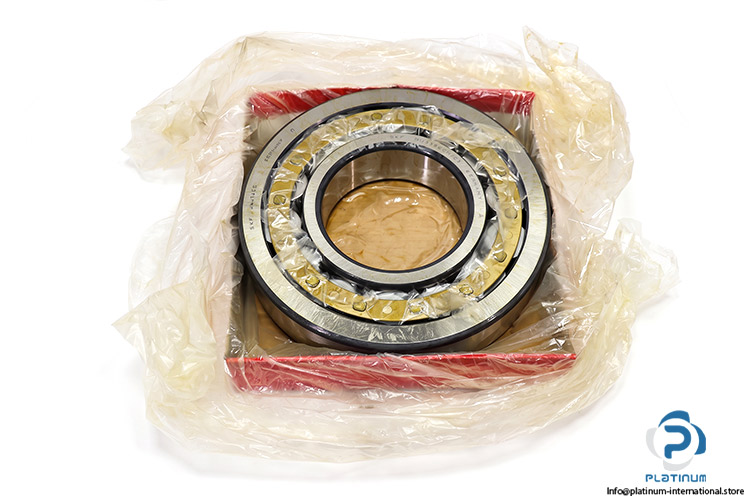

SKF NU326 -ECM/C3 Cylindrical Roller Bearing
New
In stock3 unitsReady to ship
Cylindrical Roller Bearing The SKF NU326-ECM/C3 is a single row cylindrical roller bearing designed for high radial loads and reliable performance in industrial machinery and power transmission systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Design | NU |
| Bore diameter | 130 mm |
| Outside diameter | 280 mm |
| Width | 58 mm |
| Shoulder diameter of outer ring | 234.15 mm |
| Raceway diameter of inner ring | 167 mm |
| Chamfer dimension | min.4 mm |
| Permissible axial displacement | max.3.7 mm |
| Basic dynamic load rating | 720 kN |
| Basic static load rating | 750 kN |
| Fatigue load limit | 81.5 kN |
| Reference speed | 2 400 r/min |
| Limiting speed | 3 000 r/min |
| Clearance | C3 |
| Condition | New |
| SKU | 1005189 |
| Weight | 18,2 |
