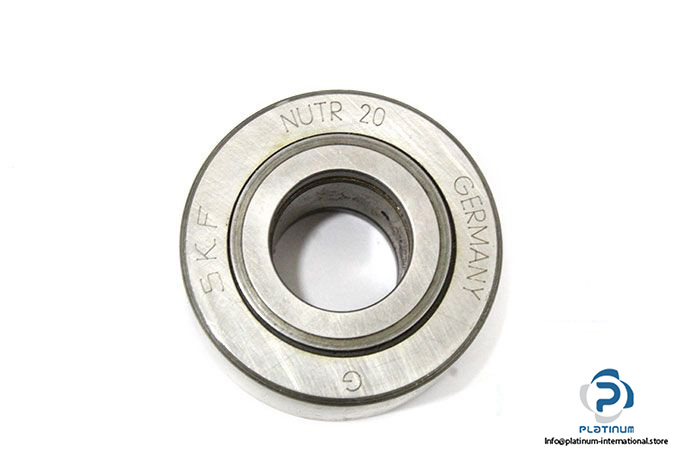

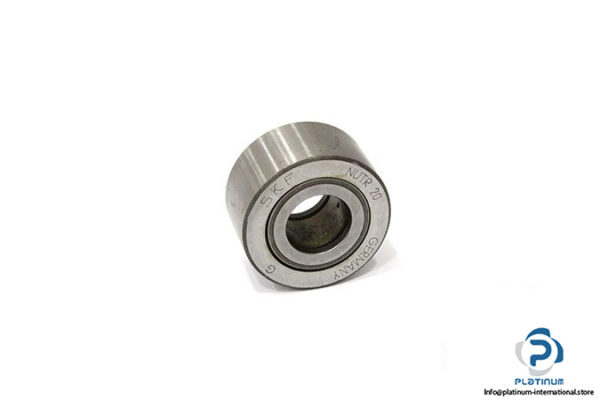

SKF Nutr 20 Support Roller
New
In stock2 unitsReady to ship
SUPPORT ROLLER
SKF NUTR 20 support roller with 20 mm bore, 47 mm outer diameter, and high dynamic load rating, designed for precision linear guidance and heavy-duty industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
SKF NUTR 20 SUPPORT ROLLER
The SKF NUTR 20 is a high-performance support roller designed for applications requiring heavy radial load handling, durability, and precise motion support. Built with SKF's trusted engineering, it offers superior static and dynamic load ratings, making it ideal for track runner systems and industrial machinery.
Manufacturer: SKF
Type: Support Roller
Model: NUTR 20

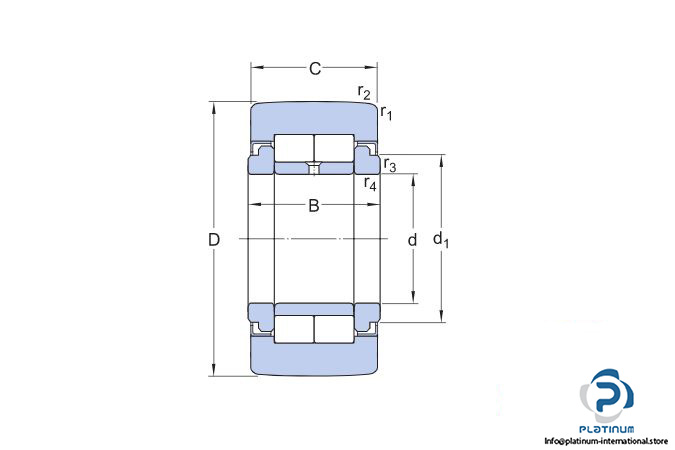

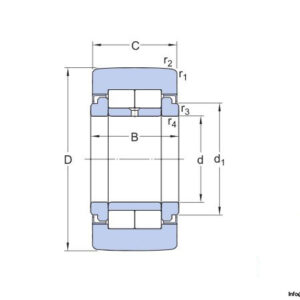

| Bore Diameter (d) | 20 mm |
| Outer Diameter (D) | 47 mm |
| Width Outer Ring (C) | 24 mm |
| Total Width | 25 mm |
| Dynamic Load Rating (C) | 28.6 kN |
| Static Load Rating (C0) | 33.5 kN |
| Fatigue Load Limit (Pu) | 3.9 kN |
| Maximum Dynamic Radial Loads (Fr) | 17.6 kN |
| Maximum Static Radial Loads (F0R) | 25 kN |
| Limiting Speed | 3800 rpm |
