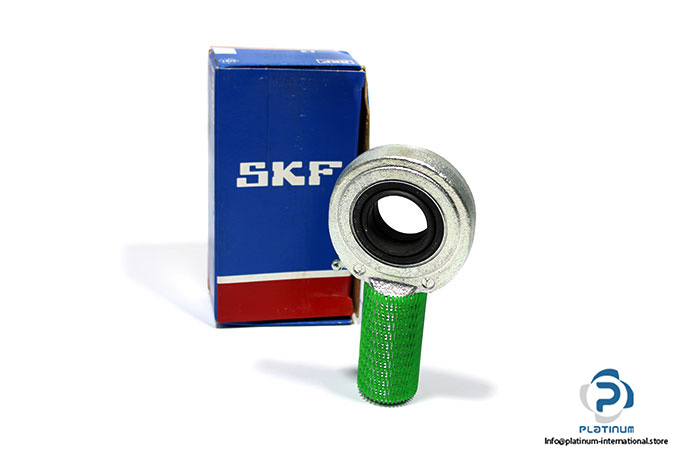

SKF SA 30 ES ROD END

Manufacturer: SKF

Type: Rod end, requires maintenance, male thread

Model: SA30ES

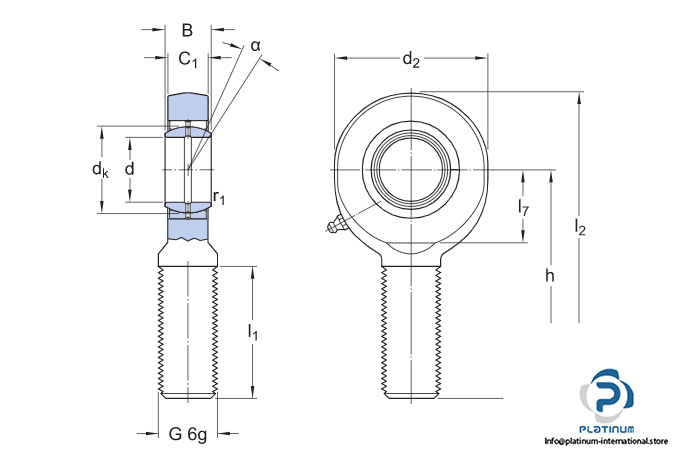

Dimensions:

Bore Diameter d: 30 mm

Diameter head d₂: 75 mm

Width inner ring B: 22 mm

Attachment feature, rod end shank: Right-hand male thread

Height shank end face – centre rod end eye h: 110 mm

Length threat l₁: 65 mm

Length (height) housing l₂: 149 mm

Thread G: M 30×2

Basic load ratings:

Dynamic C: 62 kN

Static C₀: 81.5 kN
