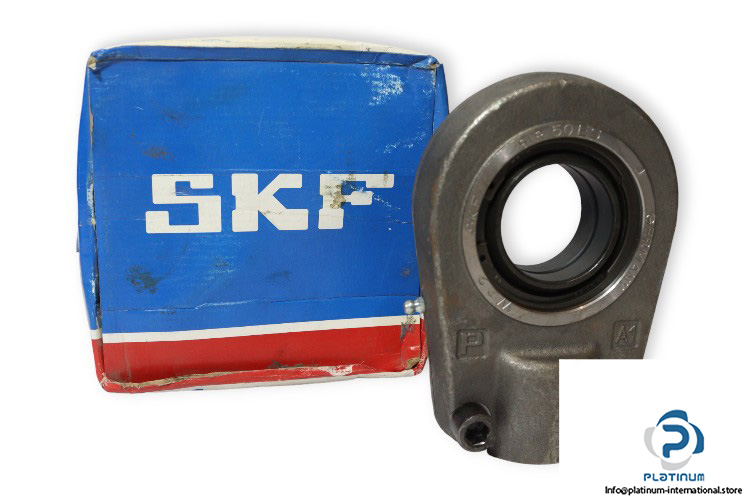

SKF SIR 50 ES ROD END

Manufacturer: SKF
Type: Rod End, Female thread
Model: SIR 50 ES

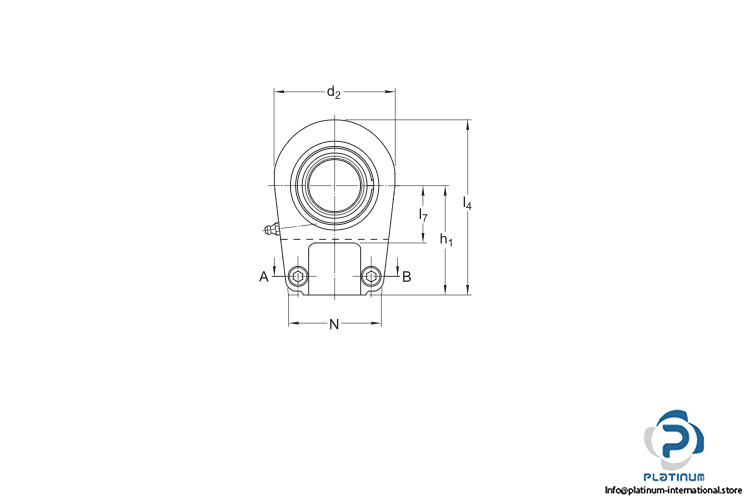

Dimensions
Bore Diameter d: 50 mm
Outer diameter d2: 118 mm
Width B: 35 mm
Centre height, housing (from end of shank) h1: 105 mm
Thread designation: M45x1.5
Sliding contact surface combination: Steel/Steel
Attachment feature, rod end shank: Right-hand female thread
Basic dynamic load rating: 156 kN
Basic static load rating: 280 kN
