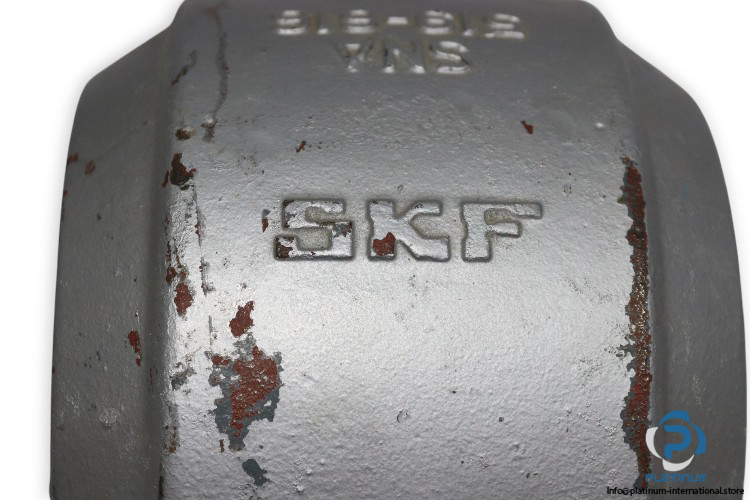

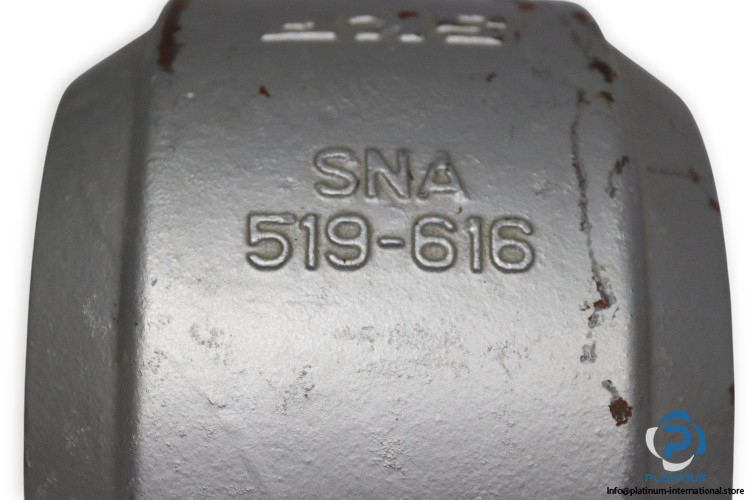

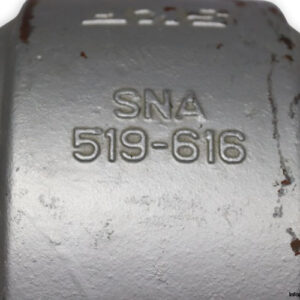

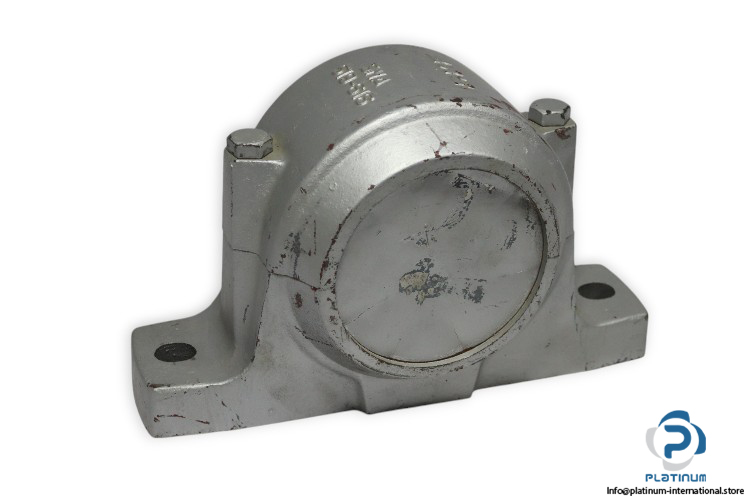

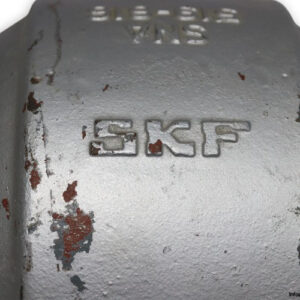

SKF SNA 519-616 Plummer Block Housing
SKF Plummer Block Housing SNA 519-616 €“ SNL 519-616 offers robust cast iron construction, 131 mm bore diameter, and 190 kN axial breaking load, making it ideal for industrial use.
SKF Plummer Block Housing SNA 519-616 €“ SNL 519-616
Manufacturer: SKF
Type: Plummer Block Housing
Model: SNA 519-616 €“ SNL 519-616
The SKF Plummer Block Housing SNA 519-616 €“ SNL 519-616 is engineered for precision and durability, making it ideal for demanding industrial applications. Constructed from high-quality cast iron, this housing provides robust support and reliable performance under heavy loads. Its design ensures compatibility with a wide range of applications, offering ease of installation and maintenance. With an impressive breaking load and optimized dimensions, this plummer block housing is a reliable choice for various mechanical setups.
Technical Specifications:
- Bore Diameter: 131 mm
- Diameter of Bearing Seat: 170 mm
- Width of Bearing Seat: 68 mm
- Centre Height (Pillow Block): 112 mm
- Centre Distance Between Bolt Holes: 290 mm
- Attachment Bolt Diameter: 20 mm
- Overall Width: 148 mm
- Overall Height: 210 mm
- Overall Length: 345 mm
- Inside Width Between Seal Grooves: 116 mm
- Size of Cap Bolts: M16x90
- Tightening Torque for Cap Bolts: 150 N·m
- Housing Material: Cast Iron
- Breaking Load, Axial: 190 kN
This SKF Plummer Block Housing is meticulously designed to provide reliable performance and longevity, even in challenging industrial environments.
