SKF TSN 616 S Labyrinth Seal
In stock1 unitReady to ship
Labyrinth Seal
SKF TSN616S steel labyrinth seal with silicone element, 70 mm shaft diameter, and 138.5 mm outside diameter. Provides reliable sealing and shaft protection for bearing housings.accessorybearingElementEquipmentHousingIndustriallabyrinthMechanicalRotarySealSealingshaftSiliconeSKFSteel
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

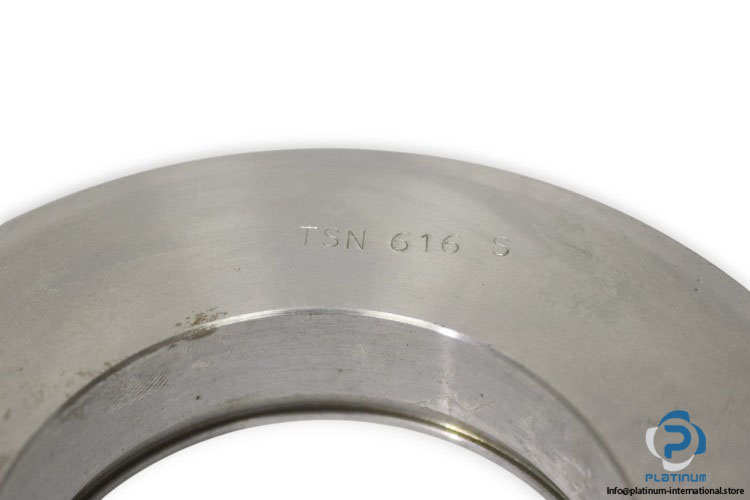

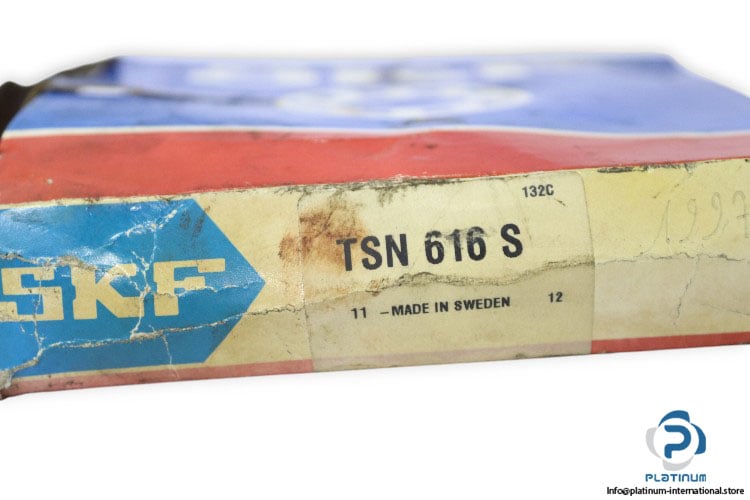

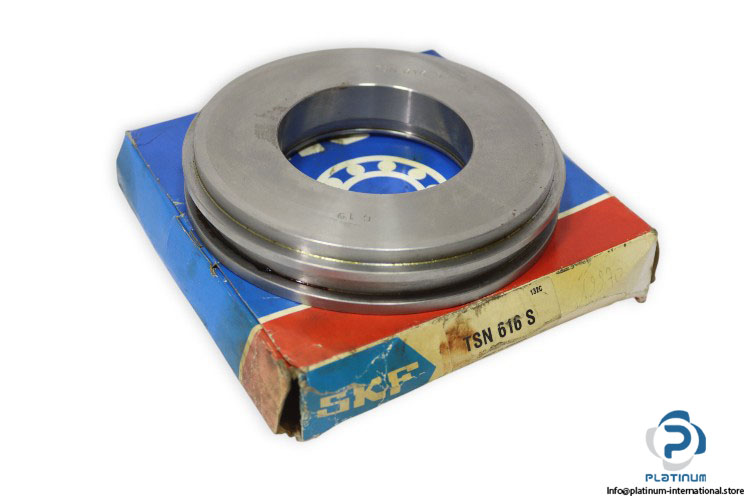

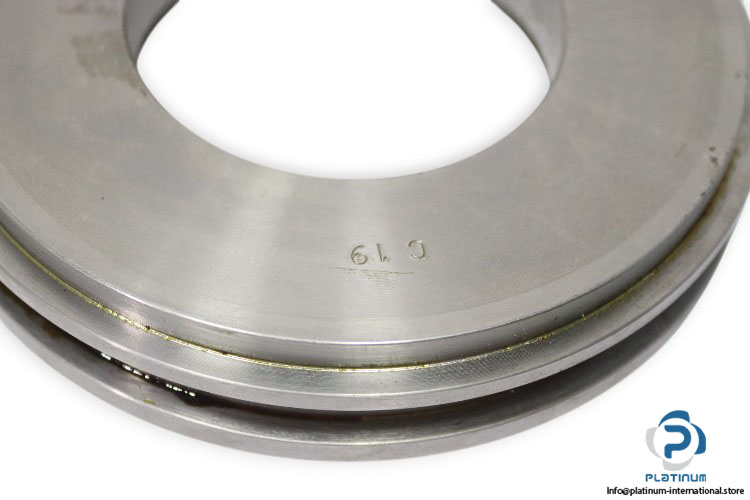

SKF TSN616S Labyrinth Seal
The SKF TSN616S is a high-quality labyrinth seal designed for reliable shaft protection and effective sealing in bearing housings and rotating assemblies.
Manufacturer: SKF
Type: Labyrinth Seal
Model: TSN616S
| Outside Diameter | 138.5 mm |
| Shaft Diameter | 70 mm |
| Housing Groove Diameter | 141 mm |
| Width | 24 mm |

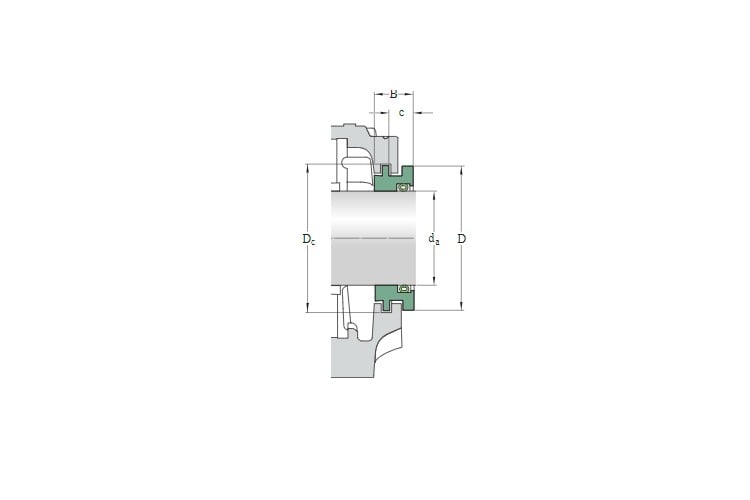

| Shaft Diameter da | 70 mm |
| Diameter of Seal Groove Dc | 141 mm |
| Outside Diameter D | 138.5 mm |
| Width B | 24 mm |
| Distance to Side Face C | 14 mm |
| Accessory Type | Housing Seal |
| Sealing Type | Labyrinth |
| Material | Steel with Silicone Element |
