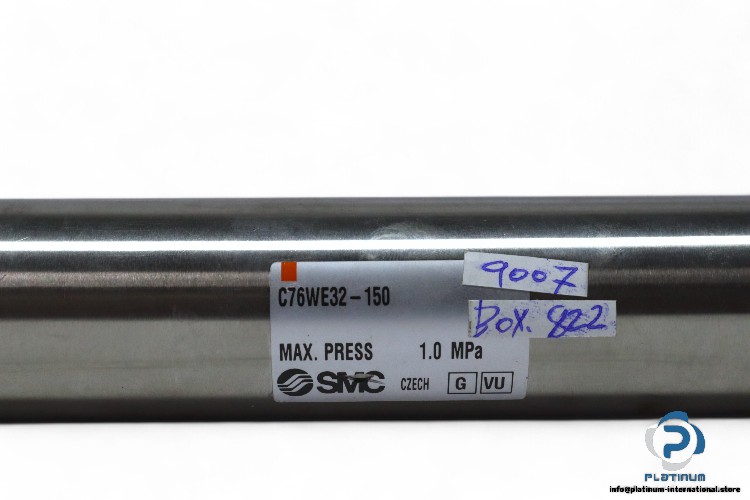

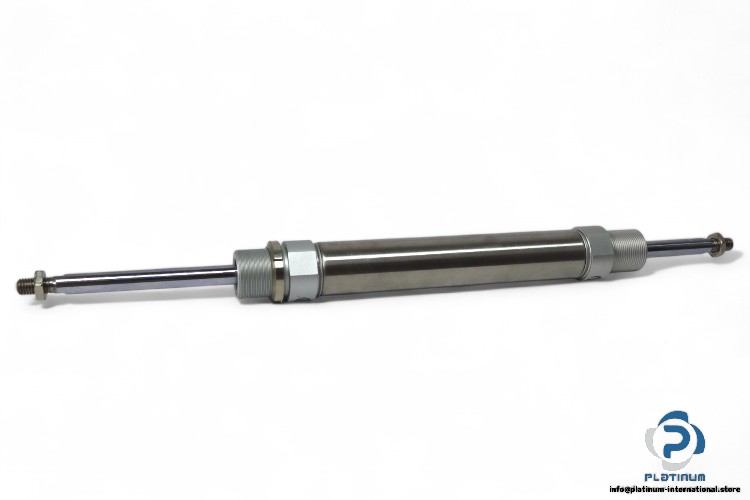

SMC C76WE32-150 AIR Cylinder
SMC C76WE32-150 Air Cylinder, 150 mm stroke length, 32 mm bore size, double acting, max. pressure 1.0 MPa, G1/8 pneumatic connection. Durable and efficient actuator.
SMC C76WE32-150 Air Cylinder
The SMC C76WE32-150 Air Cylinder is a high-performance pneumatic actuator designed for precision and reliability in industrial automation systems. With a 150 mm stroke length, 32 mm bore size, and a 12 mm piston rod diameter, it ensures efficient and controlled motion for various applications. Built to handle a maximum operating pressure of 1.0 MPa and proof pressure of 1.5 MPa, this double-acting cylinder is ideal for demanding environments.
🔧 Technical Specifications:
- Manufacturer: SMC
- Type: Air Cylinder
- Model: C76WE32-150
- Stroke Length: 150 mm
- Bore Size: 32 mm
- Piston Rod Diameter: 12 mm
- Fluid: Air
- Max. Operating Pressure: 1.0 MPa
- Proof Pressure: 1.5 MPa
- Mode of Operation: Double Acting
- Pneumatic Connection: G1/8
- Temperature Range: -20 / 80 °C
Designed for versatility and durability, the SMC C76WE32-150 features a G1/8 pneumatic connection and can operate within a wide temperature range of -20 to 80 °C. Its double-acting mechanism ensures smooth and efficient motion for a variety of pneumatic systems.
