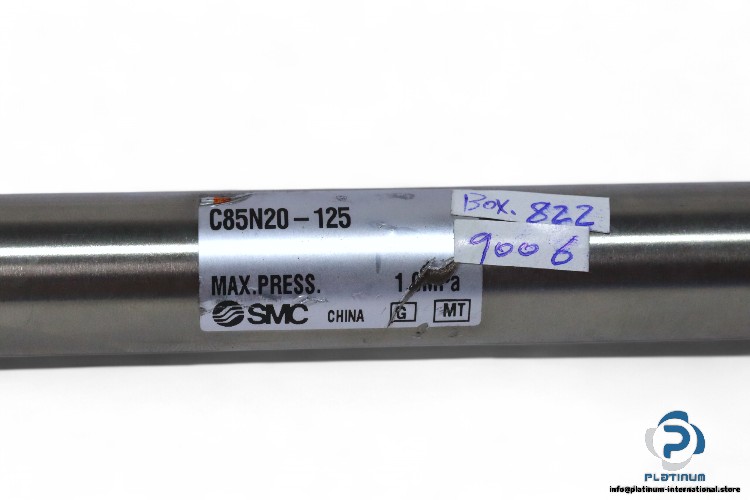

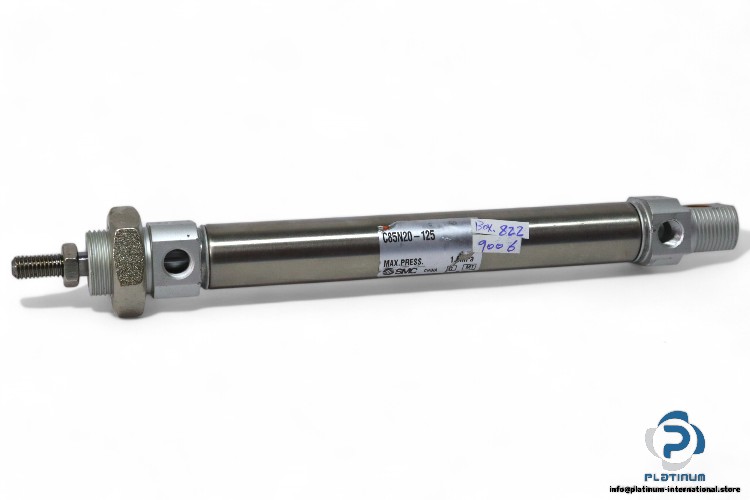

SMC C85N20-125 ISO Cylinder
SMC C85N20-125 ISO Cylinder, 125 mm stroke length, 20 mm bore size, double acting, max. pressure 1.0 MPa, G1/8 pneumatic connection. Reliable and ISO-compliant.
SMC C85N20-125 ISO Cylinder
The SMC C85N20-125 ISO Cylinder is a premium-quality pneumatic actuator designed to meet ISO standards for industrial automation. With a 125 mm stroke length, 20 mm bore size, and an 8 mm piston rod diameter, this cylinder delivers reliable and efficient performance across various applications. It operates with a maximum pressure of 1.0 MPa and a proof pressure of 1.5 MPa, ensuring durability and safety under demanding conditions.
🔧 Technical Specifications:
- Manufacturer: SMC
- Type: ISO Cylinder
- Model: C85N20-125
- Stroke Length: 125 mm
- Bore Size: 20 mm
- Piston Rod Diameter: 8 mm
- Fluid: Air
- Max. Operating Pressure: 1.0 MPa
- Proof Pressure: 1.5 MPa
- Mode of Operation: Double Acting
- Pneumatic Connection: G1/8
- Temperature Range: -20 / 80 °C
The SMC C85N20-125 offers precision and robustness, making it ideal for a wide range of automation tasks. With its G1/8 pneumatic connection and compliance with ISO standards, this cylinder ensures seamless integration into pneumatic systems.
