SMC CA2B50-100 TIE ROD Cylinder
Tie Rod Pneumatic Cylinder

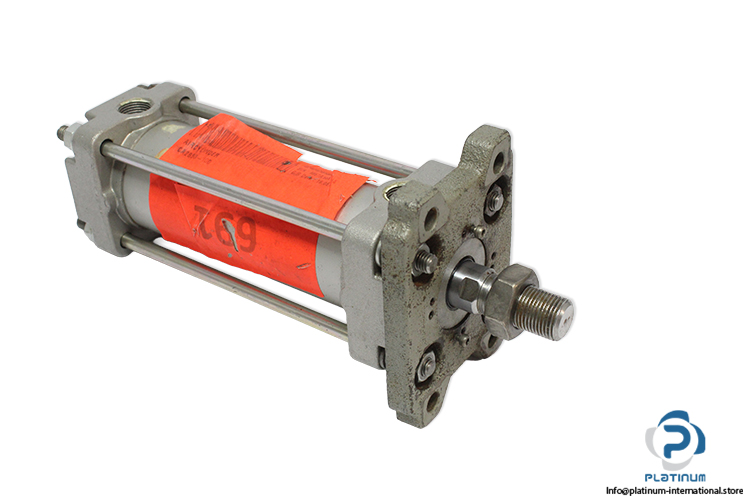

SMC CA2 series double-acting tie rod cylinder with 50 mm bore and 100 mm stroke for industrial pneumatic automation.SMC CA2B50-100 Tie Rod Pneumatic Cylinder
A high-quality tie rod pneumatic cylinder from SMC, designed for reliable linear motion in industrial automation systems. The CA2 series cylinder offers robust construction, smooth double-acting operation, and stable performance under continuous duty conditions. Manufacturer: SMC
Type: Tie Rod Cylinder
Series: CA2

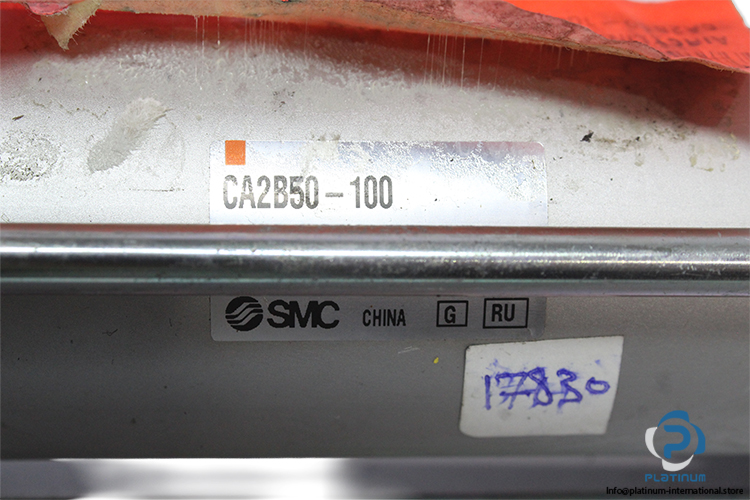

Model: CA2B50-100
Code: G / RU
Material Specification
Recommendation:
This SMC tie rod cylinder is ideal for industrial machinery, automation lines, and pneumatic systems requiring reliable linear motion. For enhanced performance and extended service life, it is recommended to combine this cylinder with high-quality Sensors for position detection and compatible pneumatic accessories available at Platinum International.
| Operating Medium | Air |
| Stroke Length | 100 mm |
| Piston Diameter | 50 mm |
| Mounting Style | Basic Style |
| Piston Rod End | Male Thread |
| Variants | Piston Rod at One End |
| Shape | Square |
| Mode of Operation | Double Acting |

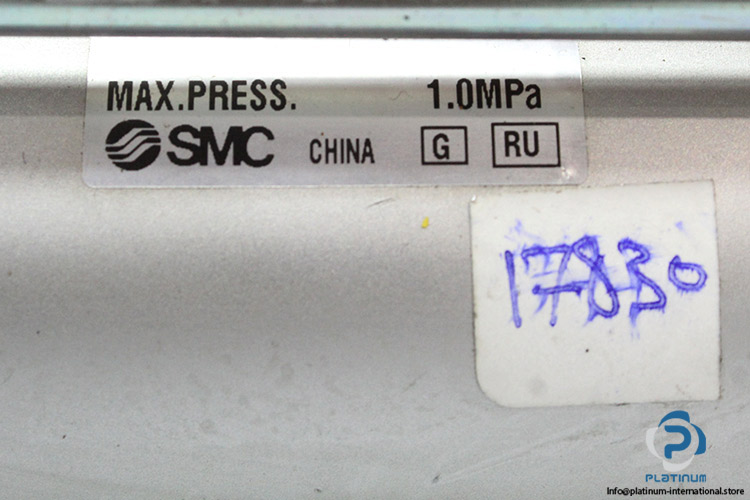

| Maximum Operating Pressure | 1 MPa |
| Pneumatic Connection | G 3/8 |
| Piston Speed | 50 to 500 mm/s |
| Ambient and Fluid Temperature | -10 to 70 °C |
| Rod Seal | NBR |
| Rod Cover | Aluminum Die-Casted |
| Cylinder Tube | Aluminum Alloy |
